2N3772

2N3772 Overview

Product belongs to the - series. Tube is the packaging method for this product Product Obsolete NPN Transistor Type The Current-Collector (Ic) (Max) of the product has a maximum capacity of 20A. The 60V Voltage - Collector Emitter Breakdown (Max) The maximum Vce Saturation at Ib, Ic is 4V @ 4A, 20A on this product. Maximum current collector cutoff is 10mA. Minimum DC Current Gain (hFE) with 15 @ 10A, 4V. Maximum 150W of power. Transition Frequency: 200kHz Operating Temperature of - This product has a Chassis Mount. Package type is TO-204AA, TO-3 The supplier device package for this product is TO-3. 2N3772 is the base part number.

2N3772 Image

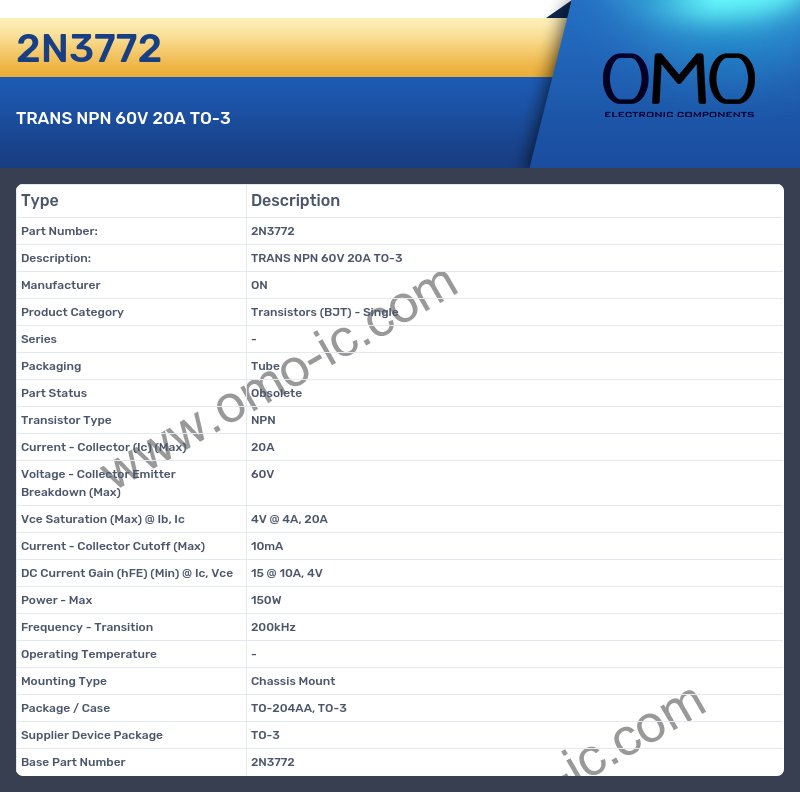

2N3772 Specifications

• Manufacturer ON
• Product Category Transistors (BJT) - Single
• Series -
• Packaging Tube
• Part Status Obsolete
• Transistor Type NPN
• Current - Collector (Ic) (Max) 20A
• Voltage - Collector Emitter Breakdown (Max) 60V
• Vce Saturation (Max) @ Ib, Ic 4V @ 4A, 20A
• Current - Collector Cutoff (Max) 10mA
• DC Current Gain (hFE) (Min) @ Ic, Vce 15 @ 10A, 4V
• Power - Max 150W
• Frequency - Transition 200kHz
• Operating Temperature -
• Mounting Type Chassis Mount
• Package / Case TO-204AA, TO-3
• Supplier Device Package TO-3
• Base Part Number 2N3772
