2N7002-G

2N7002-G Overview

Product belongs to the 2N7002 series. Reel is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style SOT-23-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 360 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product's 30 V. The ID of continuous drain current is 115 mA. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. The 7.5 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. This product operates in Enhancement channel mode for optimal performance.

2N7002-G Image

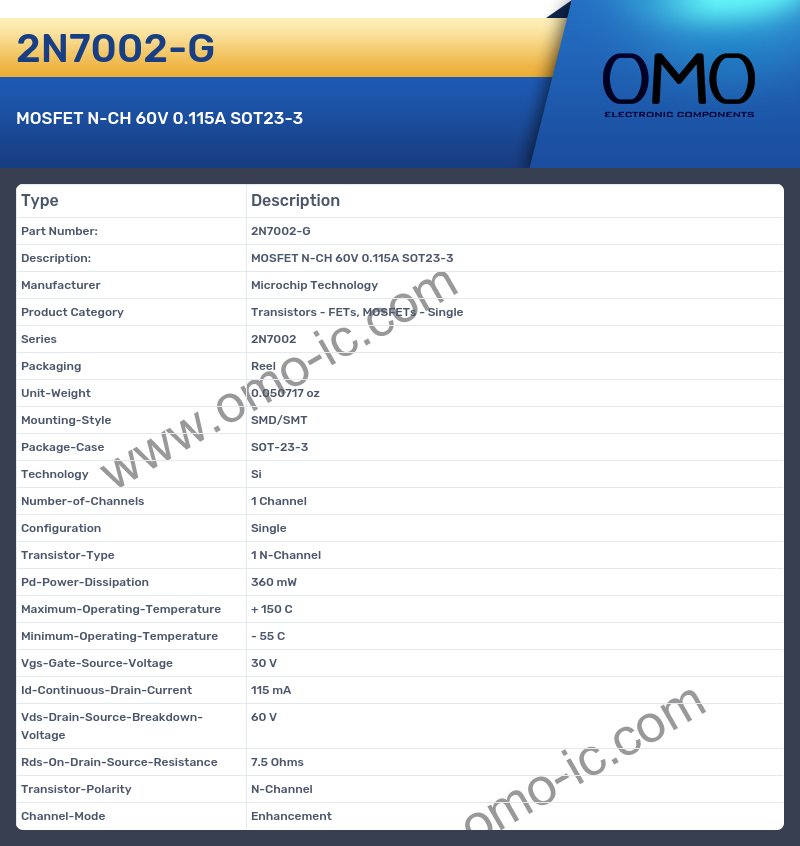

2N7002-G Specifications

• Manufacturer Microchip Technology
• Product Category Transistors - FETs, MOSFETs - Single
• Series 2N7002
• Packaging Reel
• Unit-Weight 0.050717 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 360 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Vgs-Gate-Source-Voltage 30 V
• Id-Continuous-Drain-Current 115 mA
• Vds-Drain-Source-Breakdown-Voltage 60 V
• Rds-On-Drain-Source-Resistance 7.5 Ohms
• Transistor-Polarity N-Channel
• Channel-Mode Enhancement
