| Mfr. #: | 2STBN15D100 |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | Darlington Transistors Low Volt NPN Darlington Trans |
| ライフサイクル: | メーカー新製品 |
| データシート: | 2STBN15D100 データシート |
Product belongs to the Darlingtons series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount mounting type Supplier device package: D2PAK Transistor type: NPN - Darlington Maximum current collector Ic is 12A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 750 @ 3A, 3V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.3V @ 4mA, 4A Power-off control: 70 W Rated VCEO up to 100 V The transistor polarity is NPN. The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 15 A This product is capable of handling a 12 A continuous collector current. Minimum hfe for DC collector-base gain is 750. 100 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

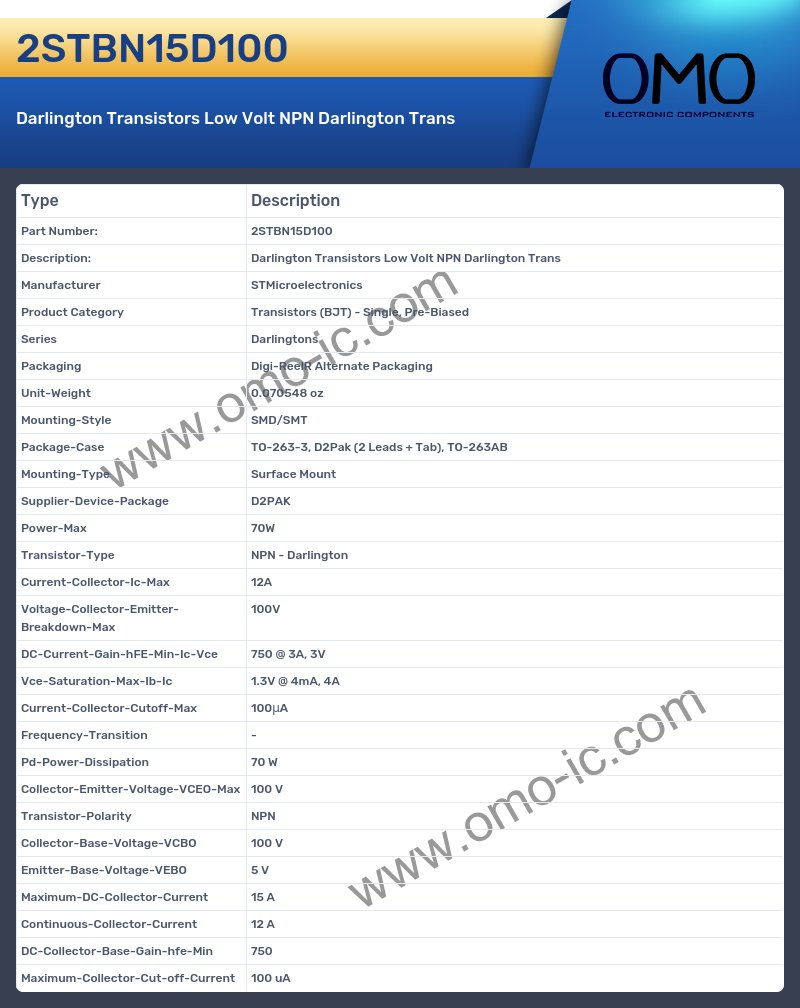

2STBN15D100 Specifications
