74LCX125M Overview

This product is manufactured by STMicroelectronics. Polarity type: Non-Inverting Supply Voltage - Max: 3.6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 1.65 mm (Max). 8.75 mm (Max) long The output type is 3-State. STMicroelectronics is a trusted brand for quality electronics The product uses the LCX logic family. CMOS. This product is equipped with 4 for efficient performance. This product has a - 24 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 24 mA 2 V to 3.6 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 6 ns at 2.7 V, 5.2 ns at 3 V to 3.6 V. 50 of 100 Logic ICs as subcategory 1. 0.008501 oz of Unit Weight

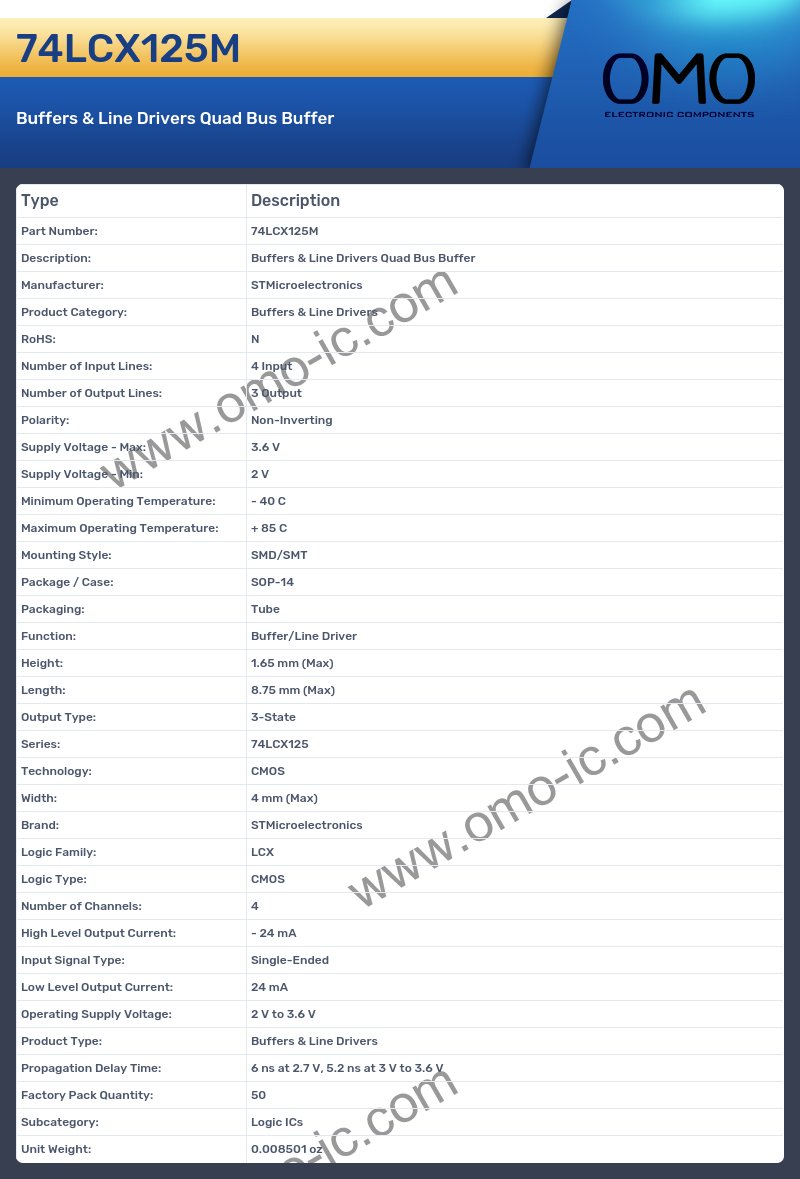

74LCX125M Image

74LCX125M Specifications

• Manufacturer: STMicroelectronics
• Product Category: Buffers & Line Drivers
• RoHS: N
• Number of Input Lines: 4 Input
• Number of Output Lines: 3 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-14
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 1.65 mm (Max)
• Length: 8.75 mm (Max)
• Output Type: 3-State
• Series: 74LCX125
• Technology: CMOS
• Width: 4 mm (Max)
• Brand: STMicroelectronics
• Logic Family: LCX
• Logic Type: CMOS
• Number of Channels: 4
• High Level Output Current: - 24 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 24 mA
• Operating Supply Voltage: 2 V to 3.6 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 6 ns at 2.7 V, 5.2 ns at 3 V to 3.6 V
• Factory Pack Quantity: 50
• Subcategory: Logic ICs
• Unit Weight: 0.008501 oz
