| Mfr. #: | 74ACT11240DWR |
|---|---|
| メーカー: | Texas Instruments |
| 説明: | Buffers & Line Drivers Octal Buf/Line Drv w/3-State Outputs |
| ライフサイクル: | メーカー新製品 |
| データシート: | 74ACT11240DWR データシート |
Product belongs to the 74ACT series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.022025 oz SMD/SMT Mounting-Style SOIC-24 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 24-SOIC 2 element Buffer/Line Driver, Inverting logic type 4 bits per element Power-off control: 1.7 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting 80 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ACT logic type 9.9 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

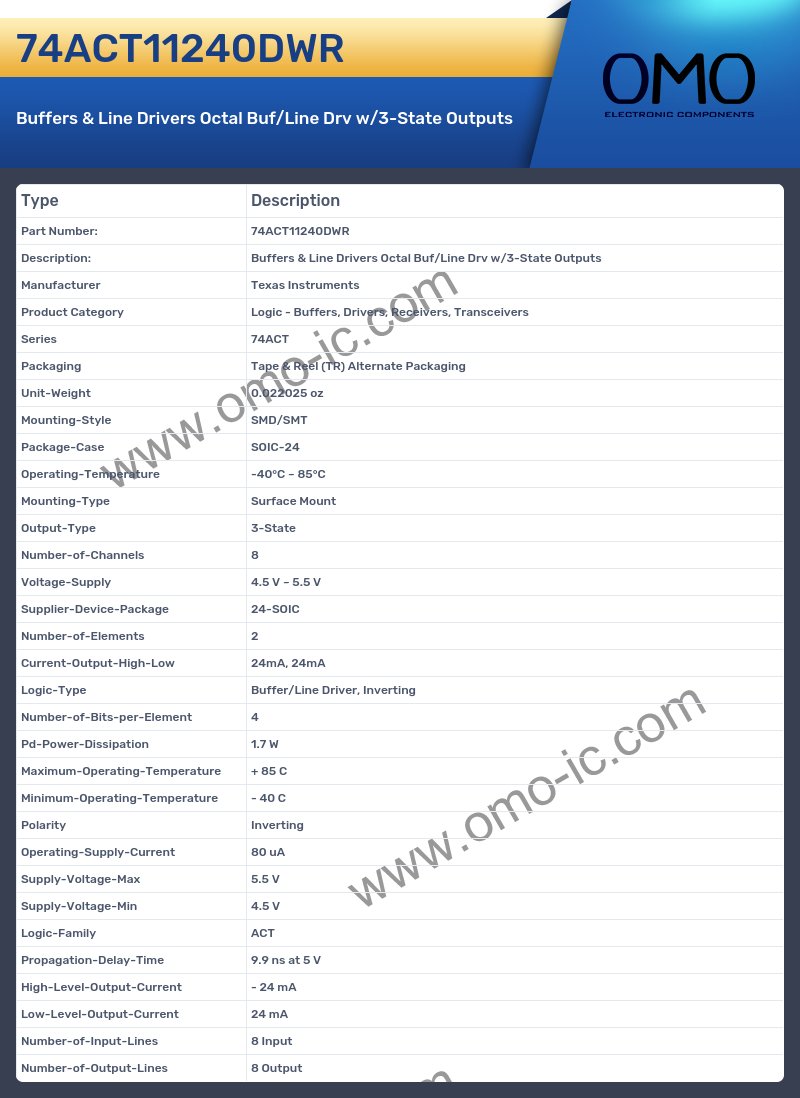

74ACT11240DWR Specifications
