74ACT16240DLR

74ACT16240DLR Overview

Product belongs to the 74ACT series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.021175 oz SMD/SMT Mounting-Style SSOP-48 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 16 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 48-SSOP 4 element Buffer/Line Driver, Inverting logic type 4 bits per element Power-off control: 1.2 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting 80 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ACT logic type 9.2 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 16 Input Number-of-Output-Lines: 16 Output

74ACT16240DLR Image

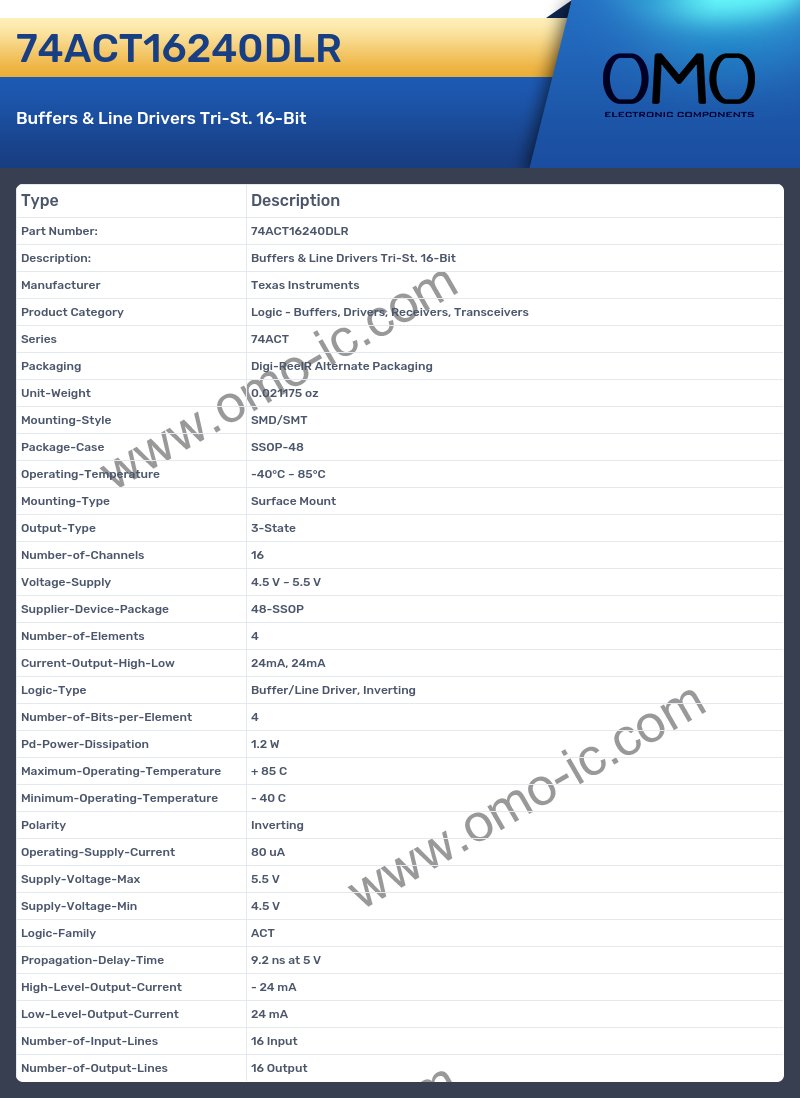

74ACT16240DLR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74ACT
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.021175 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-48
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Number-of-Channels 16
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 48-SSOP
• Number-of-Elements 4
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Buffer/Line Driver, Inverting
• Number-of-Bits-per-Element 4
• Pd-Power-Dissipation 1.2 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Inverting
• Operating-Supply-Current 80 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ACT
• Propagation-Delay-Time 9.2 ns at 5 V
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 16 Input
• Number-of-Output-Lines 16 Output
