AD7249AR Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 125 kS/s. This product is equipped with 2 Channel for efficient performance. 10 us settling time Interface Type: Serial External, Internal is the reference type. Supply Voltage - Max: 16.5 V Supply Voltage - Min: 10.8 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 2.35 mm. 10.5 mm long The output type is Voltage. This device belongs to the General Purpose type. Analog Devices is a trusted brand for quality electronics The +/- 0.9 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 6 LSB is 0.2%. INL is within +/- 1 LSB Yes regarding Moisture Sensitivity 10.8 V to 16.5 V operating supply voltage range 600 mW DACs - Digital to Analog Converters product type 47 of 100 Data Converter ICs as subcategory 1. 0.023492 oz of Unit Weight

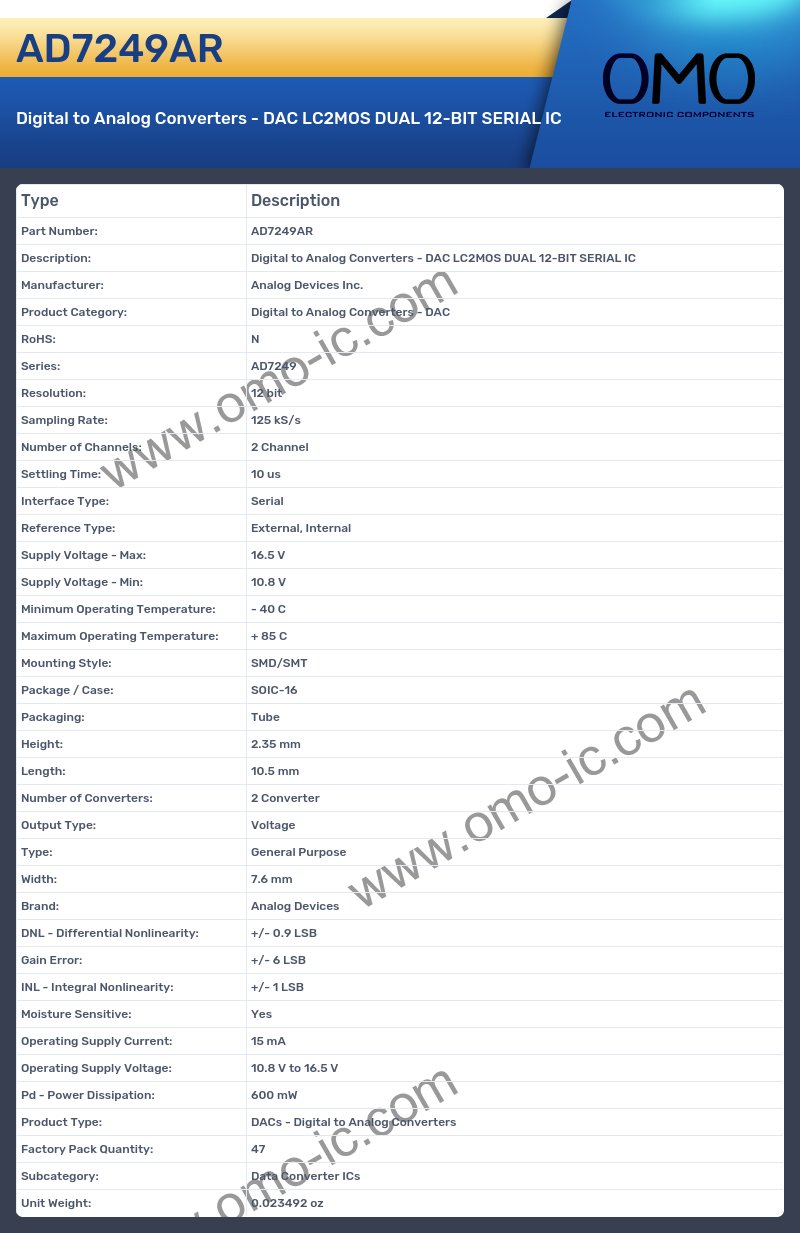

AD7249AR Image

AD7249AR Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD7249
• Resolution: 12 bit
• Sampling Rate: 125 kS/s
• Number of Channels: 2 Channel
• Settling Time: 10 us
• Interface Type: Serial
• Reference Type: External, Internal
• Supply Voltage - Max: 16.5 V
• Supply Voltage - Min: 10.8 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Tube
• Height: 2.35 mm
• Length: 10.5 mm
• Number of Converters: 2 Converter
• Output Type: Voltage
• Type: General Purpose
• Width: 7.6 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 0.9 LSB
• Gain Error: +/- 6 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Moisture Sensitive: Yes
• Operating Supply Current: 15 mA
• Operating Supply Voltage: 10.8 V to 16.5 V
• Pd - Power Dissipation: 600 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 47
• Subcategory: Data Converter ICs
• Unit Weight: 0.023492 oz
