AD7569BQ

AD7569BQ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. 5 V operating supply voltage range The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. CDIP-24 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.56 mm. Single-Ended input type 32.51 mm long The output type is CMOS/TTL. The sampling rate of this product is 500 kS/s. SAR architecture Analog Devices is a trusted brand for quality electronics Interface Type: Parallel Internal is the reference type. +/- 2 is 0.2%. INL is within +/- 0.5 LSB 85 mW Data Acquisition ADCs/DACs - Specialized product type 15 of 100 Data Converter ICs as subcategory

AD7569BQ Image

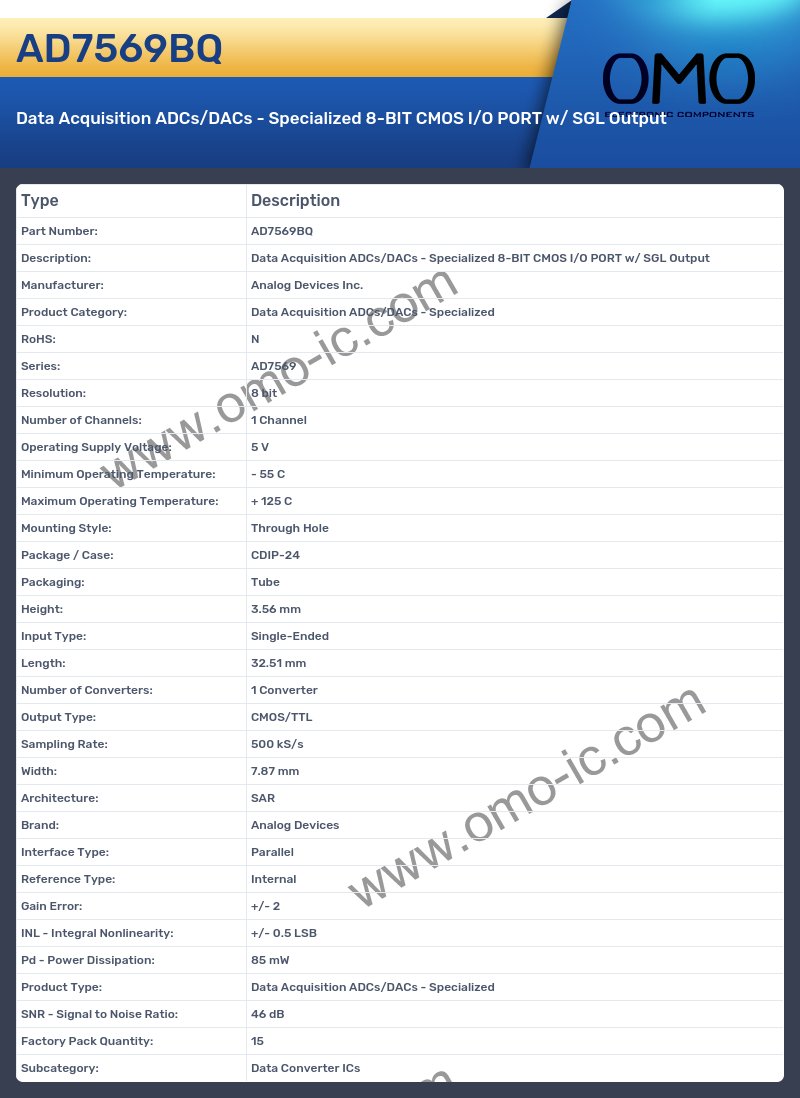

AD7569BQ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Data Acquisition ADCs/DACs - Specialized
• RoHS: N
• Series: AD7569
• Resolution: 8 bit
• Number of Channels: 1 Channel
• Operating Supply Voltage: 5 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: CDIP-24
• Packaging: Tube
• Height: 3.56 mm
• Input Type: Single-Ended
• Length: 32.51 mm
• Number of Converters: 1 Converter
• Output Type: CMOS/TTL
• Sampling Rate: 500 kS/s
• Width: 7.87 mm
• Architecture: SAR
• Brand: Analog Devices
• Interface Type: Parallel
• Reference Type: Internal
• Gain Error: +/- 2
• INL - Integral Nonlinearity: +/- 0.5 LSB
• Pd - Power Dissipation: 85 mW
• Product Type: Data Acquisition ADCs/DACs - Specialized
• SNR - Signal to Noise Ratio: 46 dB
• Factory Pack Quantity: 15
• Subcategory: Data Converter ICs
