AD7574BQ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. CDIP-18 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Single-Ended input type Interface Type: Parallel SAR architecture External is the reference type. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 3.56 mm. 10 V, +/- 10 V Input Voltage 24.38 mm long Analog Devices is a trusted brand for quality electronics The +/- 0.75 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 4.5 LSB is 0.2%. INL is within +/- 0.5 LSB 5 V operating supply voltage range 25 mW ADCs - Analog to Digital Converters product type 21 of 100 Data Converter ICs as subcategory

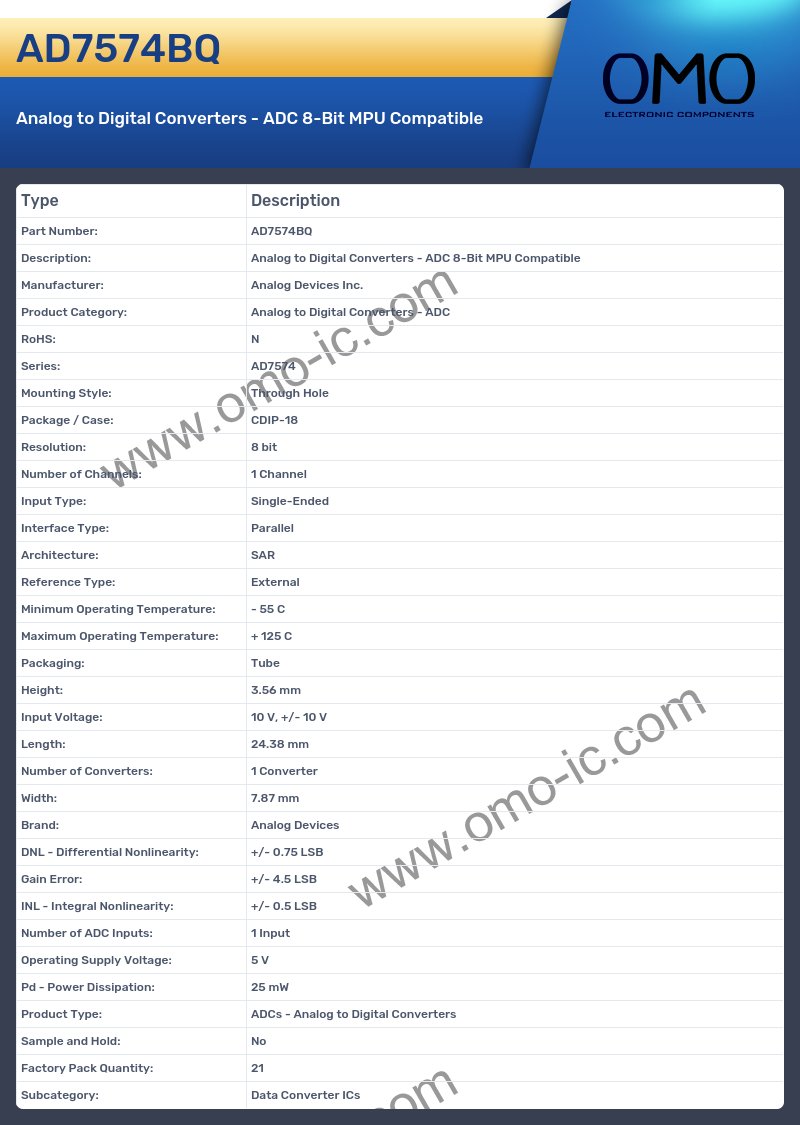

AD7574BQ Image

AD7574BQ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD7574
• Mounting Style: Through Hole
• Package / Case: CDIP-18
• Resolution: 8 bit
• Number of Channels: 1 Channel
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 3.56 mm
• Input Voltage: 10 V, +/- 10 V
• Length: 24.38 mm
• Number of Converters: 1 Converter
• Width: 7.87 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 0.75 LSB
• Gain Error: +/- 4.5 LSB
• INL - Integral Nonlinearity: +/- 0.5 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 25 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: No
• Factory Pack Quantity: 21
• Subcategory: Data Converter ICs
