AD7817BRZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. This product is equipped with 5 Channel for efficient performance. The sampling rate of this product is 100 kS/s. Single-Ended input type Interface Type: SPI SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 1.5 mm. 2.5 V Input Voltage 10 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 10 LSB is 0.2%. INL is within +/- 1 LSB 2.7 V to 5.5 V operating supply voltage range 450 mW ADCs - Analog to Digital Converters product type 48 of 100 Data Converter ICs as subcategory 1. 0.023492 oz of Unit Weight

AD7817BRZ Image

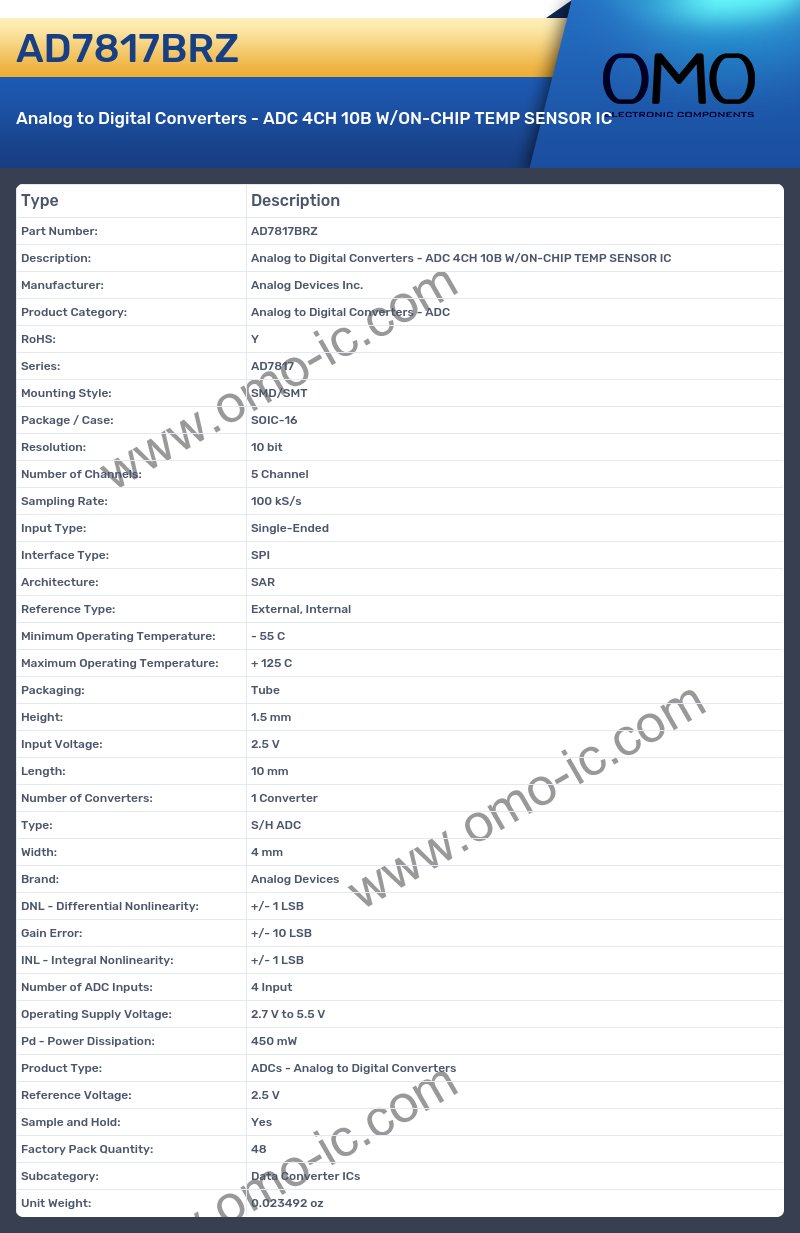

AD7817BRZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7817
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Resolution: 10 bit
• Number of Channels: 5 Channel
• Sampling Rate: 100 kS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: External, Internal
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 1.5 mm
• Input Voltage: 2.5 V
• Length: 10 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 4 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• Gain Error: +/- 10 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Number of ADC Inputs: 4 Input
• Operating Supply Voltage: 2.7 V to 5.5 V
• Pd - Power Dissipation: 450 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 2.5 V
• Sample and Hold: Yes
• Factory Pack Quantity: 48
• Subcategory: Data Converter ICs
• Unit Weight: 0.023492 oz
