AD7864ASZ-3

AD7864ASZ-3 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. QFP-44 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 520 kS/s. Single-Ended input type Interface Type: Parallel SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 2 mm. +/- 2.5 V Input Voltage 10 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 0.9 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 3 LSB is 0.2%. INL is within +/- 1 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 120 mW ADCs - Analog to Digital Converters product type 96 of 100 Data Converter ICs as subcategory 1. 0.017588 oz of Unit Weight

AD7864ASZ-3 Image

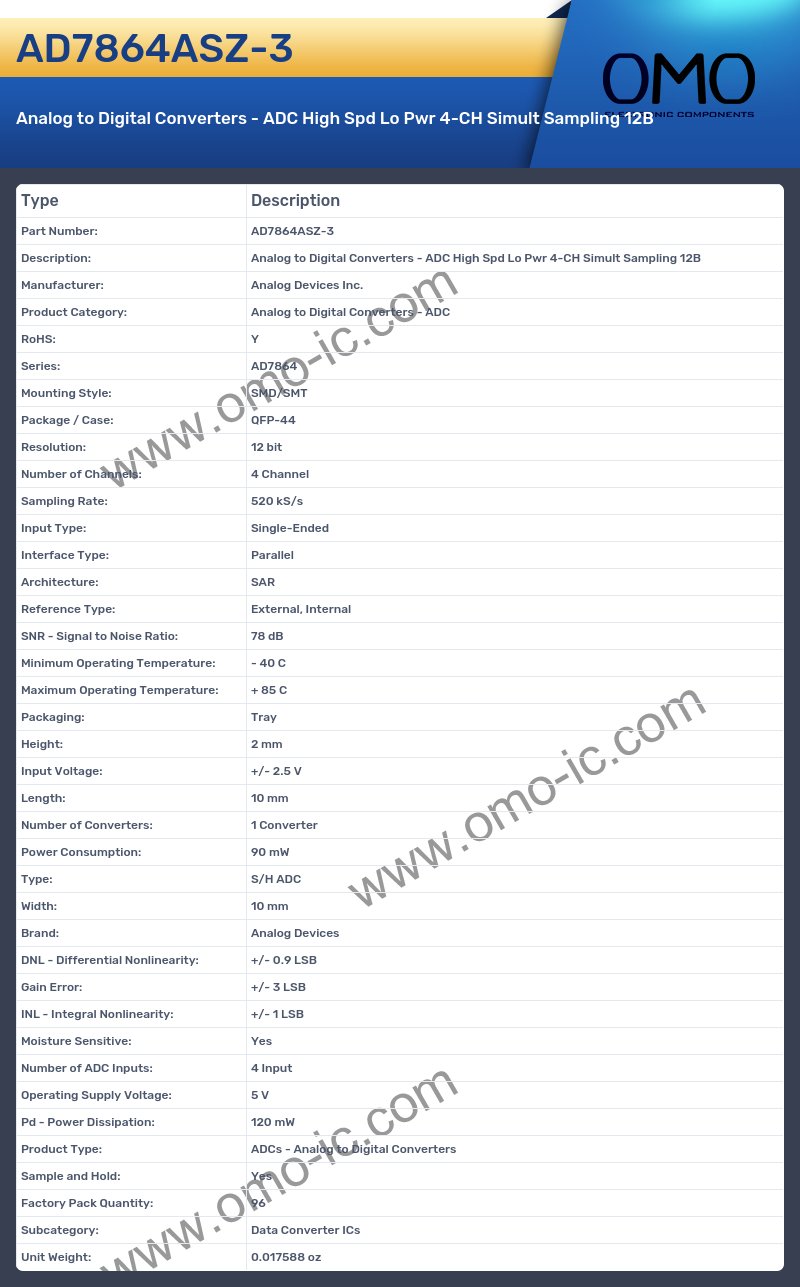

AD7864ASZ-3 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7864
• Mounting Style: SMD/SMT
• Package / Case: QFP-44
• Resolution: 12 bit
• Number of Channels: 4 Channel
• Sampling Rate: 520 kS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 78 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Height: 2 mm
• Input Voltage: +/- 2.5 V
• Length: 10 mm
• Number of Converters: 1 Converter
• Power Consumption: 90 mW
• Type: S/H ADC
• Width: 10 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 0.9 LSB
• Gain Error: +/- 3 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 4 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 120 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 96
• Subcategory: Data Converter ICs
• Unit Weight: 0.017588 oz
