AD8684ARZ

AD8684ARZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 4 Channel for efficient performance. This product has a 90 dB of 50 dB, ensuring reliable signal acquisition. This product has an 20 pA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 9 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.5 mm (Max). 8.75 mm (Max) long Precision Amplifiers This device belongs to the General Purpose Amplifier type. Analog Devices is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 18 V. +/- 4.5 V minimum dual supply voltage 9 V to 36 V operating supply voltage range Precision Amplifiers product type This product has a 114 dB of 50 dB, providing reliable power supply noise rejection. 56 of 100 Amplifier ICs as subcategory 1. 0.011993 oz of Unit Weight

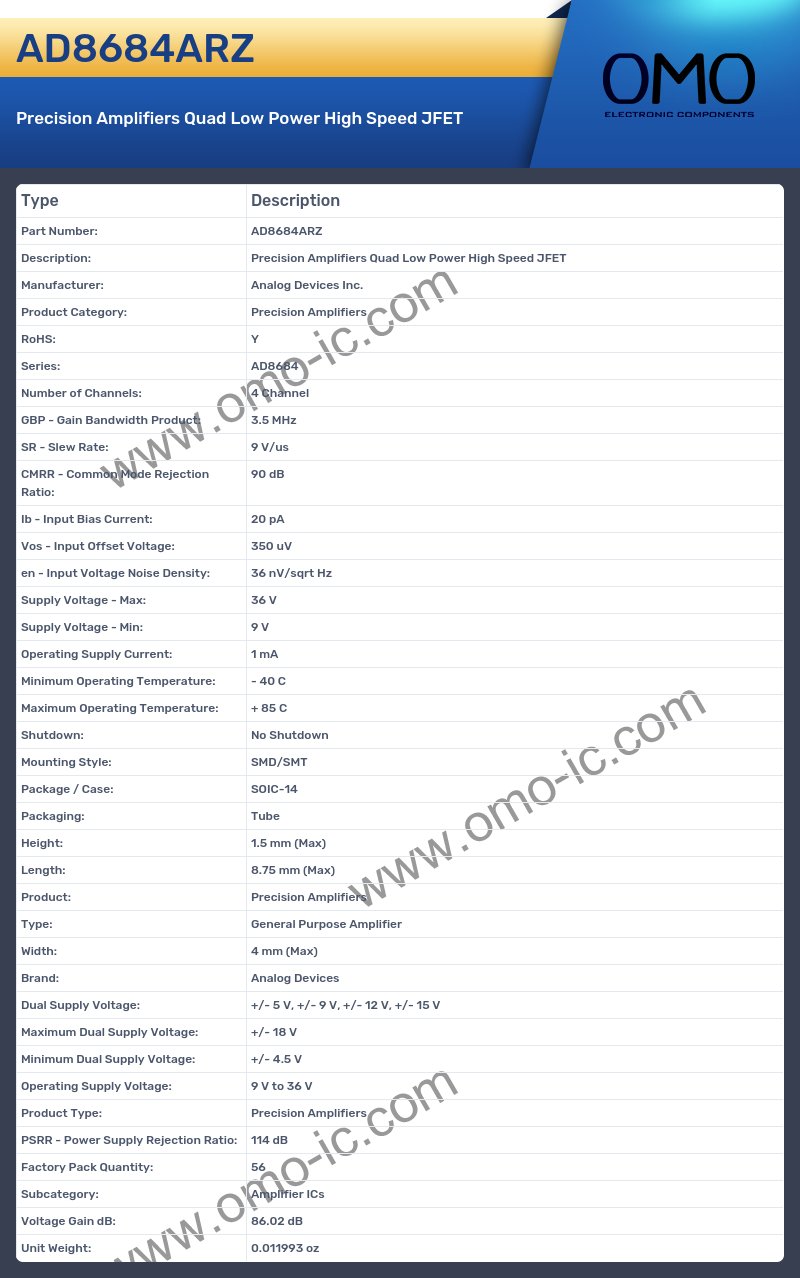

AD8684ARZ Image

AD8684ARZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Precision Amplifiers
• RoHS: Y
• Series: AD8684
• Number of Channels: 4 Channel
• GBP - Gain Bandwidth Product: 3.5 MHz
• SR - Slew Rate: 9 V/us
• CMRR - Common Mode Rejection Ratio: 90 dB
• Ib - Input Bias Current: 20 pA
• Vos - Input Offset Voltage: 350 uV
• en - Input Voltage Noise Density: 36 nV/sqrt Hz
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 9 V
• Operating Supply Current: 1 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Tube
• Height: 1.5 mm (Max)
• Length: 8.75 mm (Max)
• Product: Precision Amplifiers
• Type: General Purpose Amplifier
• Width: 4 mm (Max)
• Brand: Analog Devices
• Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Operating Supply Voltage: 9 V to 36 V
• Product Type: Precision Amplifiers
• PSRR - Power Supply Rejection Ratio: 114 dB
• Factory Pack Quantity: 56
• Subcategory: Amplifier ICs
• Voltage Gain dB: 86.02 dB
• Unit Weight: 0.011993 oz
