AD9257BCPZ-40

AD9257BCPZ-40 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-64 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 65 MS/s. Differential input type Interface Type: SPI Pipeline architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 0.83 mm. 2 Vp-p Input Voltage 9 mm long The output type is LVDS. This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics AD9257-65EBZ is a versatile development platform for hardware and software The - 1 LSB/1.7 LSB, ensuring accurate and precise analog-to-digital conversion. - 6 %FSR/2 %FSR is 0.2%. INL is within +/- 3.1 LSB Yes regarding Moisture Sensitivity 1.8 V operating supply voltage range 464 mW ADCs - Analog to Digital Converters product type 260 of 100 Data Converter ICs as subcategory 1. 0.383992 oz of Unit Weight

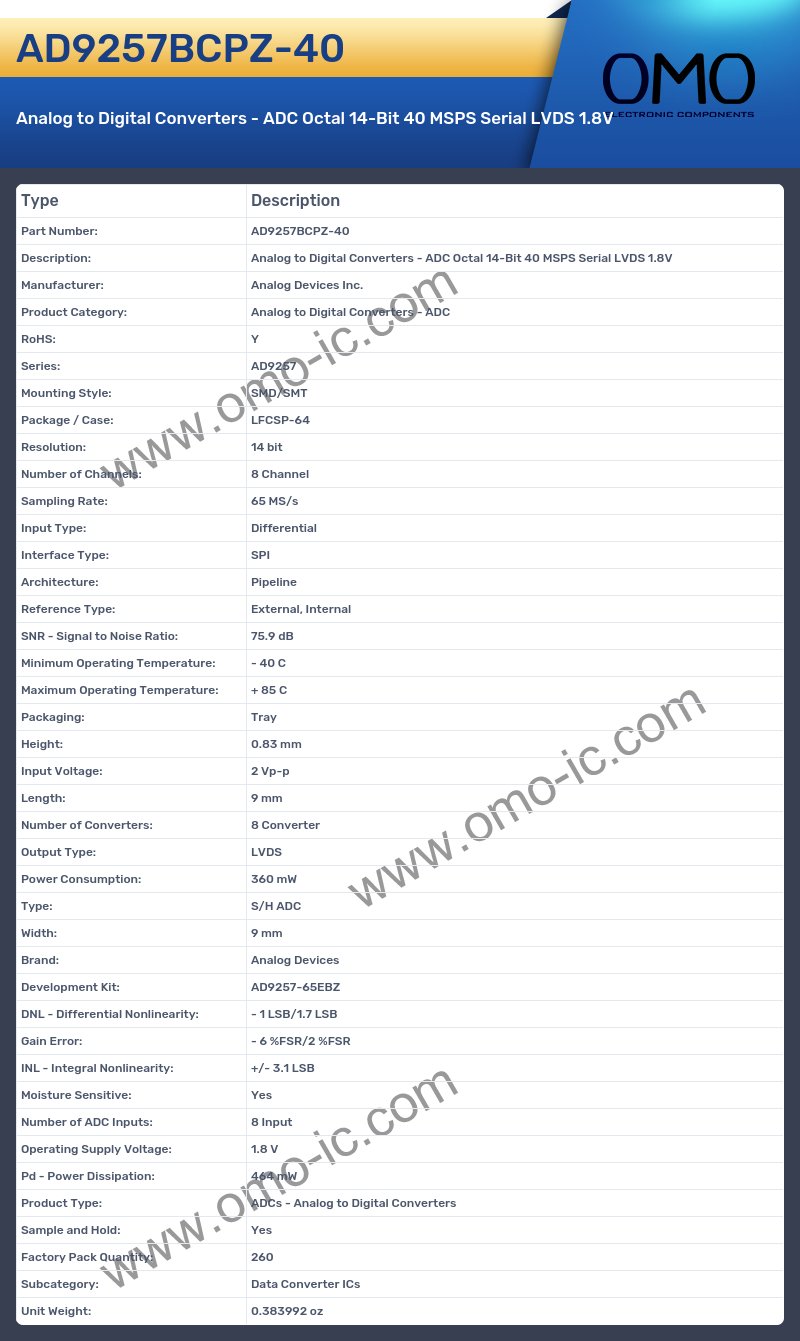

AD9257BCPZ-40 Image

AD9257BCPZ-40 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD9257
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-64
• Resolution: 14 bit
• Number of Channels: 8 Channel
• Sampling Rate: 65 MS/s
• Input Type: Differential
• Interface Type: SPI
• Architecture: Pipeline
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 75.9 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Height: 0.83 mm
• Input Voltage: 2 Vp-p
• Length: 9 mm
• Number of Converters: 8 Converter
• Output Type: LVDS
• Power Consumption: 360 mW
• Type: S/H ADC
• Width: 9 mm
• Brand: Analog Devices
• Development Kit: AD9257-65EBZ
• DNL - Differential Nonlinearity: - 1 LSB/1.7 LSB
• Gain Error: - 6 %FSR/2 %FSR
• INL - Integral Nonlinearity: +/- 3.1 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 8 Input
• Operating Supply Voltage: 1.8 V
• Pd - Power Dissipation: 464 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 260
• Subcategory: Data Converter ICs
• Unit Weight: 0.383992 oz
