AD9645BCPZ-125

AD9645BCPZ-125 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-32 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. The sampling rate of this product is 125 MS/s. Differential input type Interface Type: 3-Wire Pipeline architecture Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 0.73 mm. 2 Vp-p Input Voltage 5 mm long The output type is LVDS. This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics AD9645-125EBZ is a versatile development platform for hardware and software The - 0.6 LSB/1.3 LSB, ensuring accurate and precise analog-to-digital conversion. - 5.1 %FSR/2.3 %FSR is 0.2%. INL is within - 3.6 LSB/3.4 LSB Yes regarding Moisture Sensitivity 1.8 V operating supply voltage range ADCs - Analog to Digital Converters product type 490 of 100 Data Converter ICs as subcategory

AD9645BCPZ-125 Image

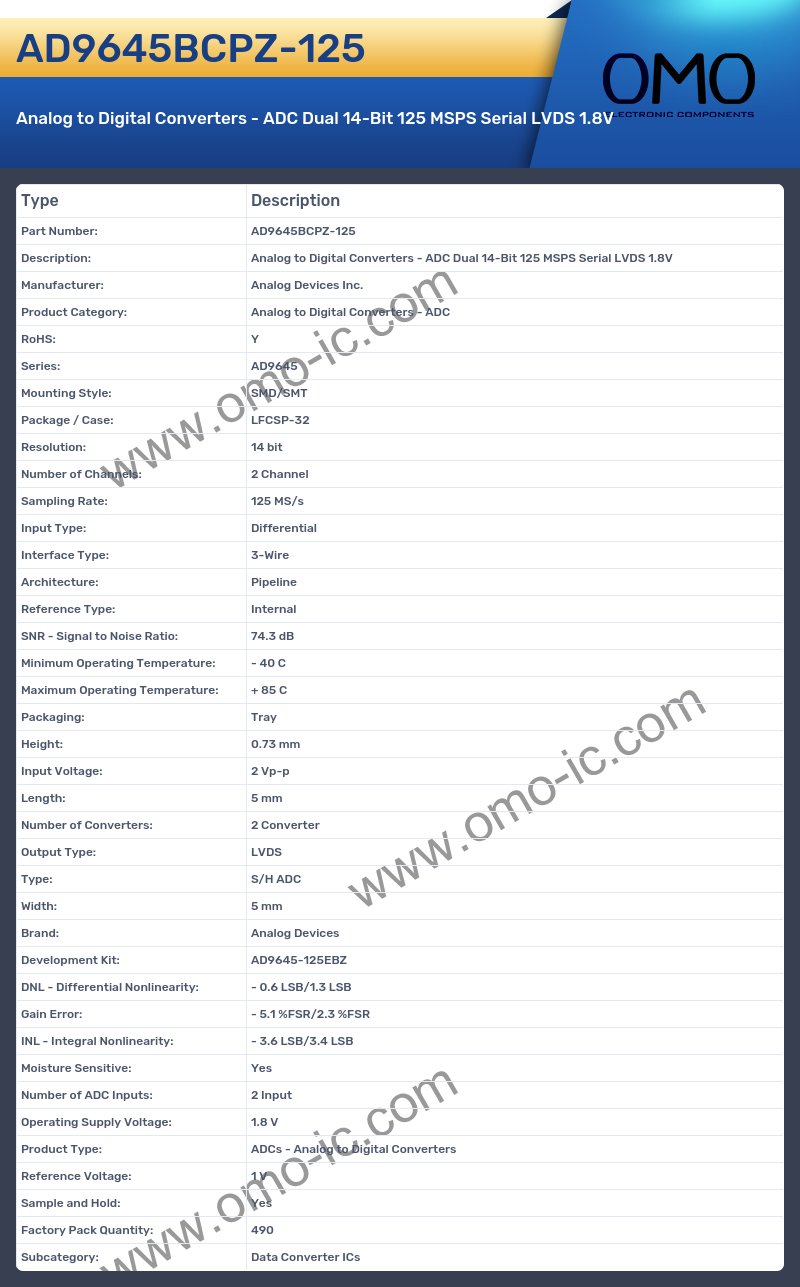

AD9645BCPZ-125 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD9645
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-32
• Resolution: 14 bit
• Number of Channels: 2 Channel
• Sampling Rate: 125 MS/s
• Input Type: Differential
• Interface Type: 3-Wire
• Architecture: Pipeline
• Reference Type: Internal
• SNR - Signal to Noise Ratio: 74.3 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Height: 0.73 mm
• Input Voltage: 2 Vp-p
• Length: 5 mm
• Number of Converters: 2 Converter
• Output Type: LVDS
• Type: S/H ADC
• Width: 5 mm
• Brand: Analog Devices
• Development Kit: AD9645-125EBZ
• DNL - Differential Nonlinearity: - 0.6 LSB/1.3 LSB
• Gain Error: - 5.1 %FSR/2.3 %FSR
• INL - Integral Nonlinearity: - 3.6 LSB/3.4 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 2 Input
• Operating Supply Voltage: 1.8 V
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 1 V
• Sample and Hold: Yes
• Factory Pack Quantity: 490
• Subcategory: Data Converter ICs
