ADC10080CIMT/NOPB

ADC10080CIMT/NOPB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 80 MS/s. Differential input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 2.7 V to 3.6 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 0.9 mm. 1 V, 1.5 V, 2 V Input Voltage 9.7 mm long This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics ADC10080EVAL is a versatile development platform for hardware and software The +/- 0.25 LSB, ensuring accurate and precise analog-to-digital conversion. - 1.6 % FSR to + 2 % FSR is 0.2%. INL is within - 1.4 LSB, + 1.6 LSB Yes regarding Moisture Sensitivity 3 V operating supply voltage range 78.6 mW ADCs - Analog to Digital Converters product type 48 of 100 Data Converter ICs as subcategory 1. 0.014215 oz of Unit Weight

ADC10080CIMT/NOPB Image

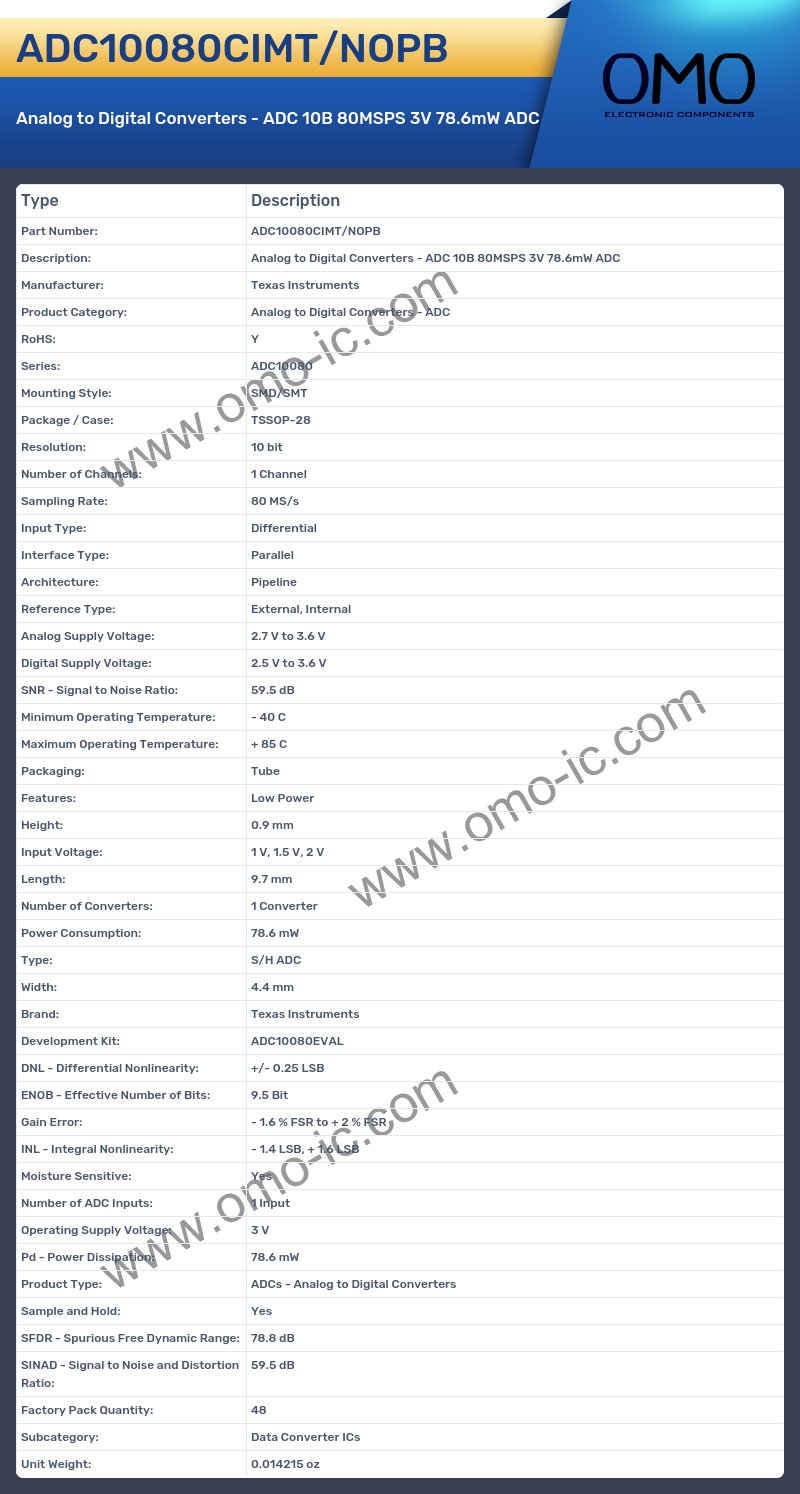

ADC10080CIMT/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADC10080
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-28
• Resolution: 10 bit
• Number of Channels: 1 Channel
• Sampling Rate: 80 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 2.7 V to 3.6 V
• Digital Supply Voltage: 2.5 V to 3.6 V
• SNR - Signal to Noise Ratio: 59.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Low Power
• Height: 0.9 mm
• Input Voltage: 1 V, 1.5 V, 2 V
• Length: 9.7 mm
• Number of Converters: 1 Converter
• Power Consumption: 78.6 mW
• Type: S/H ADC
• Width: 4.4 mm
• Brand: Texas Instruments
• Development Kit: ADC10080EVAL
• DNL - Differential Nonlinearity: +/- 0.25 LSB
• ENOB - Effective Number of Bits: 9.5 Bit
• Gain Error: - 1.6 % FSR to + 2 % FSR
• INL - Integral Nonlinearity: - 1.4 LSB, + 1.6 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 3 V
• Pd - Power Dissipation: 78.6 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• SFDR - Spurious Free Dynamic Range: 78.8 dB
• SINAD - Signal to Noise and Distortion Ratio: 59.5 dB
• Factory Pack Quantity: 48
• Subcategory: Data Converter ICs
• Unit Weight: 0.014215 oz
