ADEL2020ARZ-20 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOIC-20 package/case type is utilized by this product. Supply Voltage - Max: 36 V This product is equipped with 1 Channel for efficient performance. This product has a 64 dB of 50 dB, ensuring reliable signal acquisition. This product has an 15 uA of 5 uA for precise signal processing. Supply Voltage - Min: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is Current Feedback. The height of the product is 2.35 mm (Max). 13 mm (Max) long The output type is -. Operational Amplifiers Supply Type: Dual This device belongs to the Current Feedback Amplifier type. Analog Devices is a trusted brand for quality electronics 25 MHz 0.1 dB gain flatness Bandwidth at -3 dB is 90 MHz Gain ratio is 10 V/V. The 1.5 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 18 V. +/- 3 V minimum dual supply voltage Yes regarding Moisture Sensitivity 6 V to 36 V operating supply voltage range Op Amps - Operational Amplifiers product type This product has a 72 dB of 50 dB, providing reliable power supply noise rejection. 37 of 100 Amplifier ICs as subcategory 1. 0.028254 oz of Unit Weight

ADEL2020ARZ-20 Image

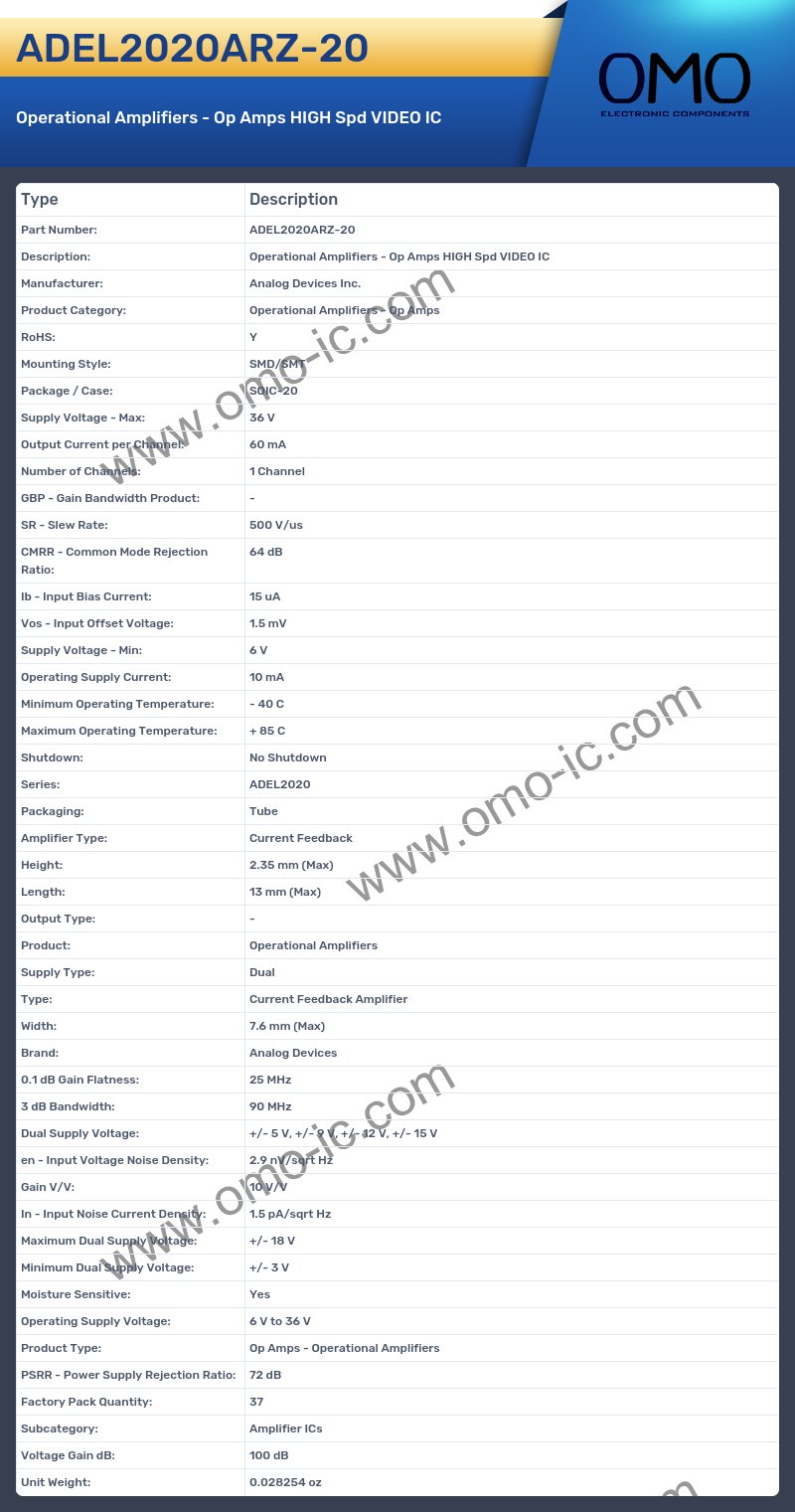

ADEL2020ARZ-20 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-20
• Supply Voltage - Max: 36 V
• Output Current per Channel: 60 mA
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 500 V/us
• CMRR - Common Mode Rejection Ratio: 64 dB
• Ib - Input Bias Current: 15 uA
• Vos - Input Offset Voltage: 1.5 mV
• Supply Voltage - Min: 6 V
• Operating Supply Current: 10 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Series: ADEL2020
• Packaging: Tube
• Amplifier Type: Current Feedback
• Height: 2.35 mm (Max)
• Length: 13 mm (Max)
• Output Type: -
• Product: Operational Amplifiers
• Supply Type: Dual
• Type: Current Feedback Amplifier
• Width: 7.6 mm (Max)
• Brand: Analog Devices
• 0.1 dB Gain Flatness: 25 MHz
• 3 dB Bandwidth: 90 MHz
• Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• en - Input Voltage Noise Density: 2.9 nV/sqrt Hz
• Gain V/V: 10 V/V
• In - Input Noise Current Density: 1.5 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 3 V
• Moisture Sensitive: Yes
• Operating Supply Voltage: 6 V to 36 V
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 72 dB
• Factory Pack Quantity: 37
• Subcategory: Amplifier ICs
• Voltage Gain dB: 100 dB
• Unit Weight: 0.028254 oz
