ADL5369ACPZ-R7 Overview

This product is manufactured by Analog Devices Inc.. This product operates at 300 MHz to 1.1 GHz RF frequency range. The Conversion Loss - Max is rated at 6.2 dB. LO Frequency range is 330 MHz to 1.55 GHz. The IF Frequency range is 30 MHz to 450 MHz. The product can operate at a maximum temperature of + 85 C. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of SMD/SMT. LFCSP-20 package/case type is utilized by this product. Reel packaging for easy dispensing Analog Devices is a trusted brand for quality electronics ADL5369-EVALZ is a versatile development platform for hardware and software Yes regarding Moisture Sensitivity The 28 dBm value is 32 dBm. 3.3 V, 5 V operating supply voltage range The 20 dBm is 17 dBm. 600 mW RF Mixer product type 1500 of 100 Wireless & RF Integrated Circuits as subcategory

ADL5369ACPZ-R7 Image

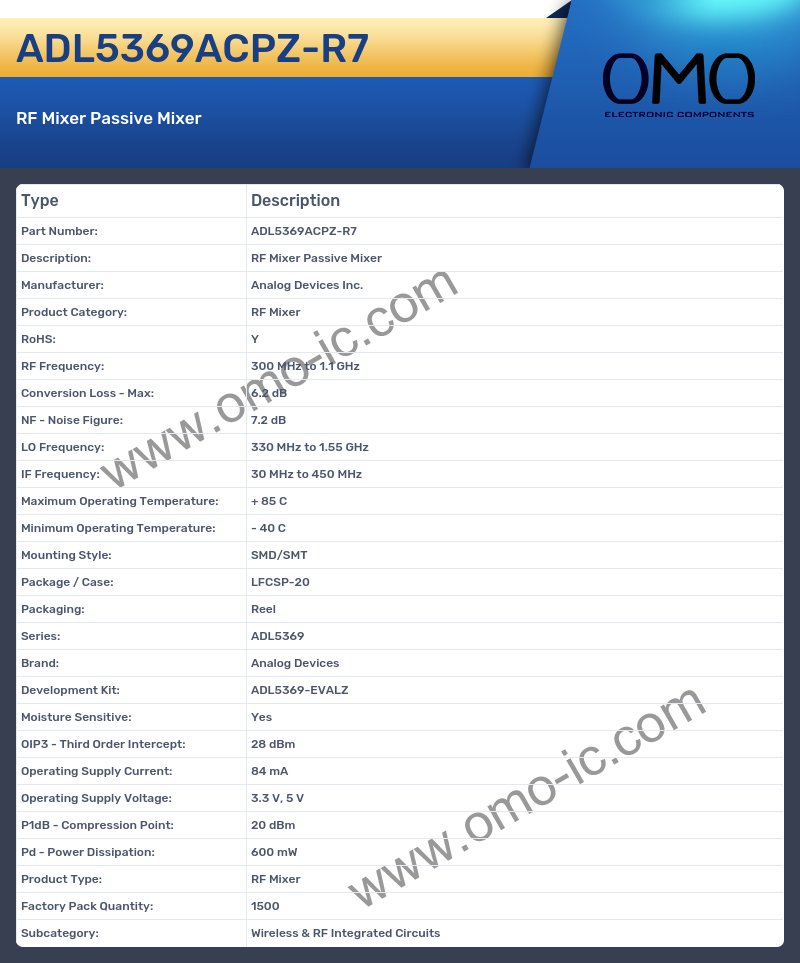

ADL5369ACPZ-R7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: RF Mixer
• RoHS: Y
• RF Frequency: 300 MHz to 1.1 GHz
• Conversion Loss - Max: 6.2 dB
• NF - Noise Figure: 7.2 dB
• LO Frequency: 330 MHz to 1.55 GHz
• IF Frequency: 30 MHz to 450 MHz
• Maximum Operating Temperature: + 85 C
• Minimum Operating Temperature: - 40 C
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-20
• Packaging: Reel
• Series: ADL5369
• Brand: Analog Devices
• Development Kit: ADL5369-EVALZ
• Moisture Sensitive: Yes
• OIP3 - Third Order Intercept: 28 dBm
• Operating Supply Current: 84 mA
• Operating Supply Voltage: 3.3 V, 5 V
• P1dB - Compression Point: 20 dBm
• Pd - Power Dissipation: 600 mW
• Product Type: RF Mixer
• Factory Pack Quantity: 1500
• Subcategory: Wireless & RF Integrated Circuits
