ADL5534ACPZ-R7

ADL5534ACPZ-R7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-16 package/case type is utilized by this product. This device belongs to the IFA type. The 20.4 dBm is 17 dBm. 19.8 dB is 11.5 dB. 5 V operating supply voltage range The 40 dBm value is 32 dBm. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing Analog Devices is a trusted brand for quality electronics This product is equipped with 2 Channel for efficient performance. ADL5534-EVALZ is a versatile development platform for hardware and software The 18 dB at 190 MHz value is 14 dB. The product has an 34 dB at 380 MHz rating of 25 dB. Yes regarding Moisture Sensitivity 500 mW (1/2 W) RF Amplifier product type 1500 of 100 Wireless & RF Integrated Circuits as subcategory Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V

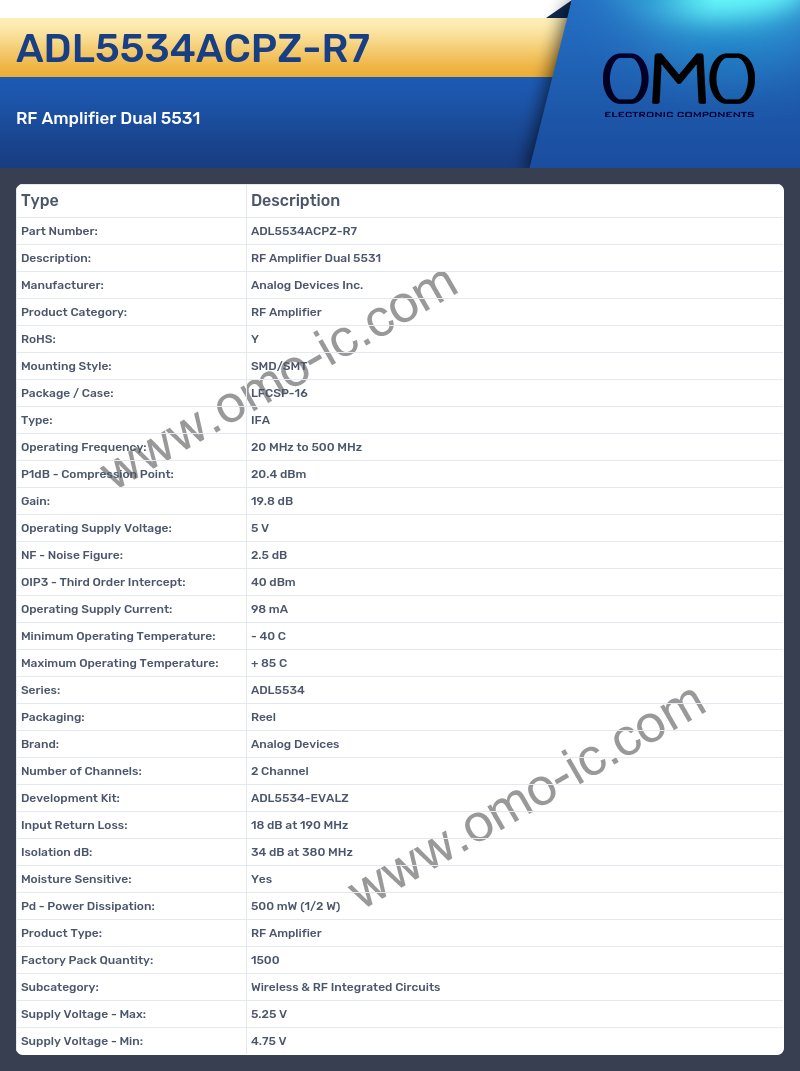

ADL5534ACPZ-R7 Image

ADL5534ACPZ-R7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: RF Amplifier
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-16
• Type: IFA
• Operating Frequency: 20 MHz to 500 MHz
• P1dB - Compression Point: 20.4 dBm
• Gain: 19.8 dB
• Operating Supply Voltage: 5 V
• NF - Noise Figure: 2.5 dB
• OIP3 - Third Order Intercept: 40 dBm
• Operating Supply Current: 98 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: ADL5534
• Packaging: Reel
• Brand: Analog Devices
• Number of Channels: 2 Channel
• Development Kit: ADL5534-EVALZ
• Input Return Loss: 18 dB at 190 MHz
• Isolation dB: 34 dB at 380 MHz
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: RF Amplifier
• Factory Pack Quantity: 1500
• Subcategory: Wireless & RF Integrated Circuits
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
