ADL5566ACPZ-R7

ADL5566ACPZ-R7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-24 package/case type is utilized by this product. This device belongs to the General Purpose Amplifier type. The 17.7 dBm is 17 dBm. 16 dB is 11.5 dB. 2.8 V to 5.2 V operating supply voltage range The 200 MHz range is from 5000 MHz to 8000 MHz. The 46 dBm value is 32 dBm. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing This product has a 4.5 GHz of 2.7 GHz to 3.5 GHz. Analog Devices is a trusted brand for quality electronics This product is equipped with 2 Channel for efficient performance. ADL5566-EVALZ is a versatile development platform for hardware and software The product has an 82.5 dB rating of 25 dB. Yes regarding Moisture Sensitivity 900 mW RF Amplifier product type 1500 of 100 Wireless & RF Integrated Circuits as subcategory Supply Voltage - Max: 5.2 V Supply Voltage - Min: 2.8 V

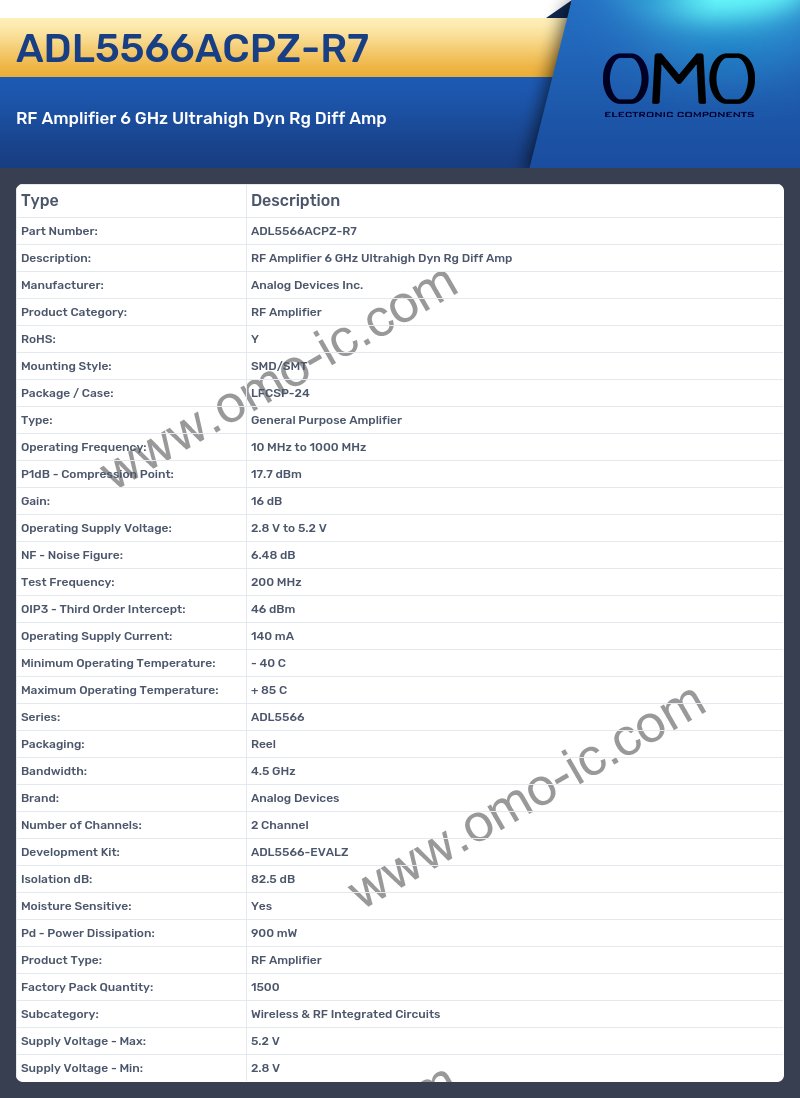

ADL5566ACPZ-R7 Image

ADL5566ACPZ-R7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: RF Amplifier
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-24
• Type: General Purpose Amplifier
• Operating Frequency: 10 MHz to 1000 MHz
• P1dB - Compression Point: 17.7 dBm
• Gain: 16 dB
• Operating Supply Voltage: 2.8 V to 5.2 V
• NF - Noise Figure: 6.48 dB
• Test Frequency: 200 MHz
• OIP3 - Third Order Intercept: 46 dBm
• Operating Supply Current: 140 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: ADL5566
• Packaging: Reel
• Bandwidth: 4.5 GHz
• Brand: Analog Devices
• Number of Channels: 2 Channel
• Development Kit: ADL5566-EVALZ
• Isolation dB: 82.5 dB
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 900 mW
• Product Type: RF Amplifier
• Factory Pack Quantity: 1500
• Subcategory: Wireless & RF Integrated Circuits
• Supply Voltage - Max: 5.2 V
• Supply Voltage - Min: 2.8 V
