ADL5601ARKZ-R7

ADL5601ARKZ-R7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOT-89-3 package/case type is utilized by this product. This device belongs to the Gain Block Amplifier type. The 19 dBm is 17 dBm. 15.3 dB is 11.5 dB. 5 V operating supply voltage range The 900 MHz range is from 5000 MHz to 8000 MHz. The 43 dBm value is 32 dBm. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing Analog Devices is a trusted brand for quality electronics This product is equipped with 1 Channel for efficient performance. ADL5601-EVALZ is a versatile development platform for hardware and software The product has an - 20 dB rating of 25 dB. 600 mW RF Amplifier product type 1000 of 100 Wireless & RF Integrated Circuits as subcategory Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V 1. 0.004603 oz of Unit Weight

ADL5601ARKZ-R7 Image

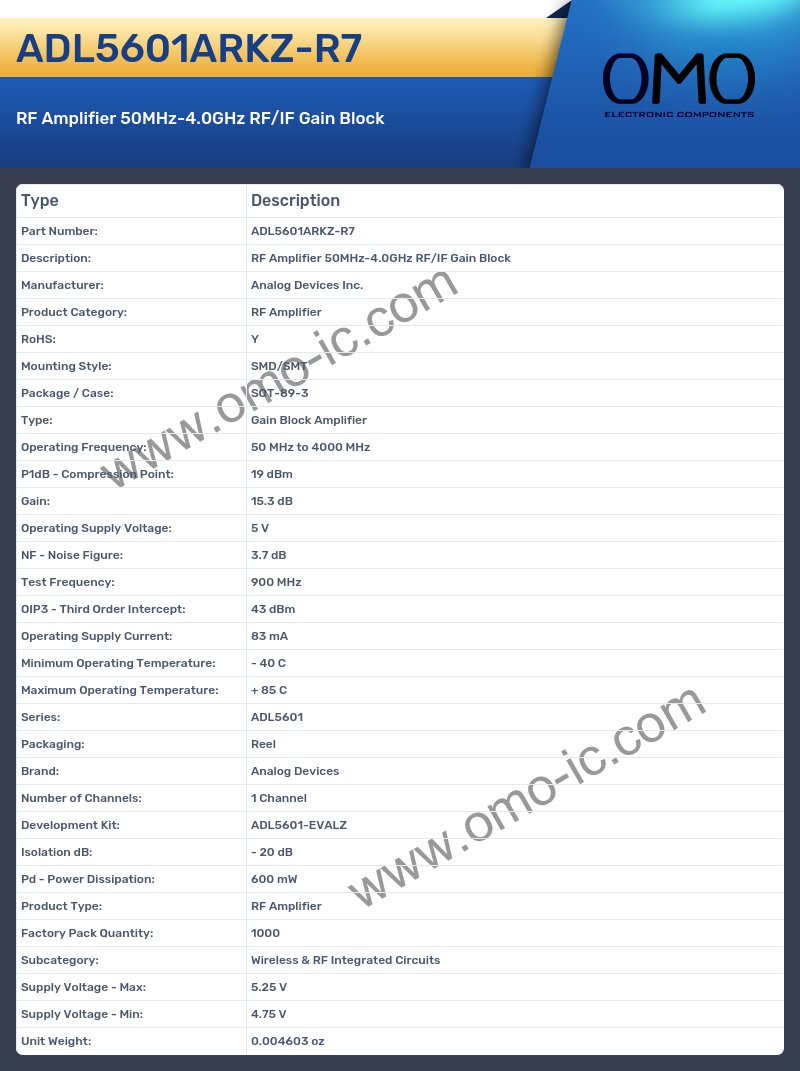

ADL5601ARKZ-R7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: RF Amplifier
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOT-89-3
• Type: Gain Block Amplifier
• Operating Frequency: 50 MHz to 4000 MHz
• P1dB - Compression Point: 19 dBm
• Gain: 15.3 dB
• Operating Supply Voltage: 5 V
• NF - Noise Figure: 3.7 dB
• Test Frequency: 900 MHz
• OIP3 - Third Order Intercept: 43 dBm
• Operating Supply Current: 83 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: ADL5601
• Packaging: Reel
• Brand: Analog Devices
• Number of Channels: 1 Channel
• Development Kit: ADL5601-EVALZ
• Isolation dB: - 20 dB
• Pd - Power Dissipation: 600 mW
• Product Type: RF Amplifier
• Factory Pack Quantity: 1000
• Subcategory: Wireless & RF Integrated Circuits
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Unit Weight: 0.004603 oz
