ADM690SQ

ADM690SQ Overview

This product is manufactured by Analog Devices Inc.. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of Through Hole. CDIP-8 package/case type is utilized by this product. 4.65 V threshold voltage range The output type is Active High. 70 ms. Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 3.56 mm (Max). 10.67 mm (Max) long Analog Devices is a trusted brand for quality electronics 5 V is specified as a product attribute. The 1.3 V is a critical parameter in this product. No Chip Enable signal is supported. 400 mW Supervisory Circuits product type 48 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 2 V. 4.75 V

ADM690SQ Image

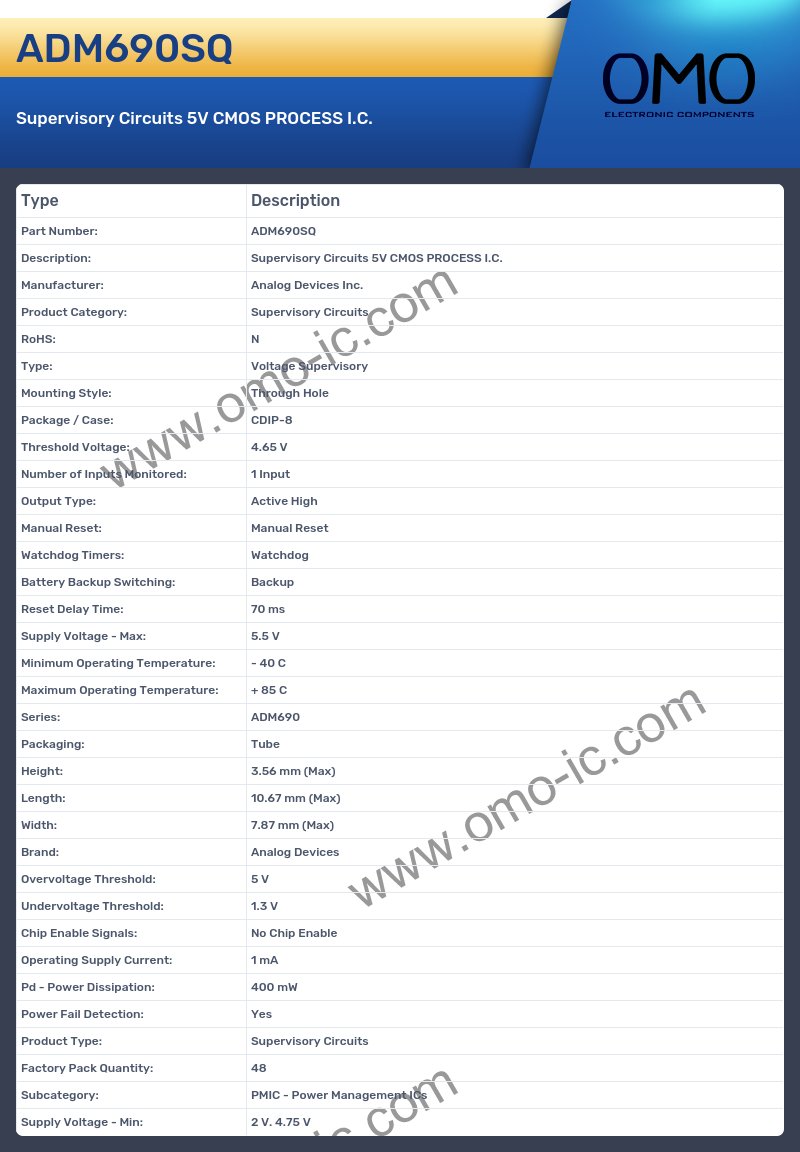

ADM690SQ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Supervisory Circuits
• RoHS: N
• Type: Voltage Supervisory
• Mounting Style: Through Hole
• Package / Case: CDIP-8
• Threshold Voltage: 4.65 V
• Number of Inputs Monitored: 1 Input
• Output Type: Active High
• Manual Reset: Manual Reset
• Watchdog Timers: Watchdog
• Battery Backup Switching: Backup
• Reset Delay Time: 70 ms
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: ADM690
• Packaging: Tube
• Height: 3.56 mm (Max)
• Length: 10.67 mm (Max)
• Width: 7.87 mm (Max)
• Brand: Analog Devices
• Overvoltage Threshold: 5 V
• Undervoltage Threshold: 1.3 V
• Chip Enable Signals: No Chip Enable
• Operating Supply Current: 1 mA
• Pd - Power Dissipation: 400 mW
• Power Fail Detection: Yes
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 48
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 2 V. 4.75 V
