ADS1146IPW

ADS1146IPW Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-16 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 2 kS/s. Single-Ended input type Interface Type: SPI Sigma-Delta architecture External is the reference type. This product requires an 2.7 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Tube packaging for easy dispensing The height of the product is 1 mm. 5 mm long Texas Instruments is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1 LSB 2.7 V to 5.25 V operating supply voltage range 2.3 mW ADCs - Analog to Digital Converters product type 90 of 100 Data Converter ICs as subcategory 1. 0.002222 oz of Unit Weight

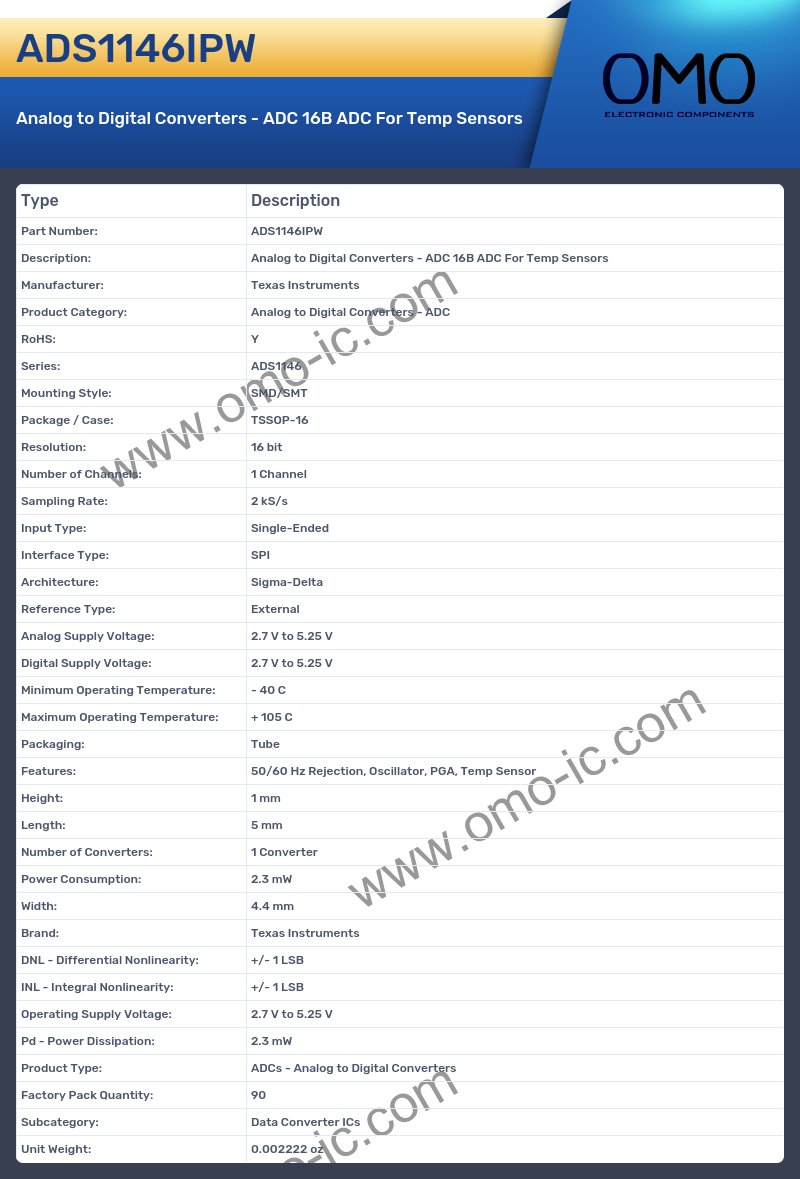

ADS1146IPW Image

ADS1146IPW Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS1146
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-16
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 2 kS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: Sigma-Delta
• Reference Type: External
• Analog Supply Voltage: 2.7 V to 5.25 V
• Digital Supply Voltage: 2.7 V to 5.25 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Packaging: Tube
• Features: 50/60 Hz Rejection, Oscillator, PGA, Temp Sensor
• Height: 1 mm
• Length: 5 mm
• Number of Converters: 1 Converter
• Power Consumption: 2.3 mW
• Width: 4.4 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Operating Supply Voltage: 2.7 V to 5.25 V
• Pd - Power Dissipation: 2.3 mW
• Product Type: ADCs - Analog to Digital Converters
• Factory Pack Quantity: 90
• Subcategory: Data Converter ICs
• Unit Weight: 0.002222 oz
