ADS1201UG4

ADS1201UG4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1 kS/s. Differential input type Interface Type: I2C Sigma-Delta architecture External, Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 2.35 mm. 10.28 mm long Texas Instruments is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 0.0015 % FSR Yes regarding Moisture Sensitivity 5 V operating supply voltage range 40 mW ADCs - Analog to Digital Converters product type 40 of 100 Data Converter ICs as subcategory 1. 0.014829 oz of Unit Weight

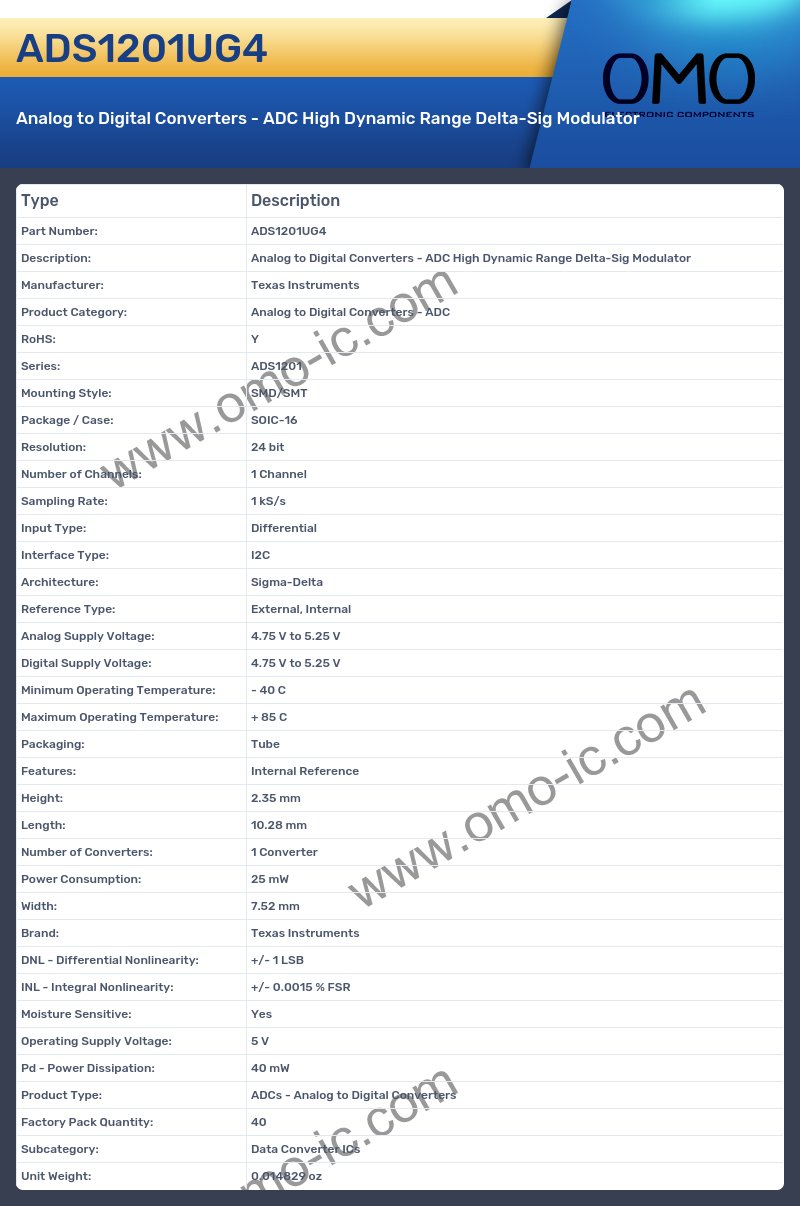

ADS1201UG4 Image

ADS1201UG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS1201
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Resolution: 24 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1 kS/s
• Input Type: Differential
• Interface Type: I2C
• Architecture: Sigma-Delta
• Reference Type: External, Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 4.75 V to 5.25 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Internal Reference
• Height: 2.35 mm
• Length: 10.28 mm
• Number of Converters: 1 Converter
• Power Consumption: 25 mW
• Width: 7.52 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 0.0015 % FSR
• Moisture Sensitive: Yes
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 40 mW
• Product Type: ADCs - Analog to Digital Converters
• Factory Pack Quantity: 40
• Subcategory: Data Converter ICs
• Unit Weight: 0.014829 oz
