ADS7054IRUGR

ADS7054IRUGR Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. X2QFN-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Differential input type Interface Type: SPI SAR architecture Supply is the reference type. This product requires an 1.65 V to 3.6 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing This device belongs to the Low Power SAR ADC type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. 0.01 %FS is 0.2%. INL is within 0.9 LSB ADCs - Analog to Digital Converters product type 3000 of 100 Data Converter ICs as subcategory THD is as low as - 92 dB. 1. 0.000088 oz of Unit Weight

ADS7054IRUGR Image

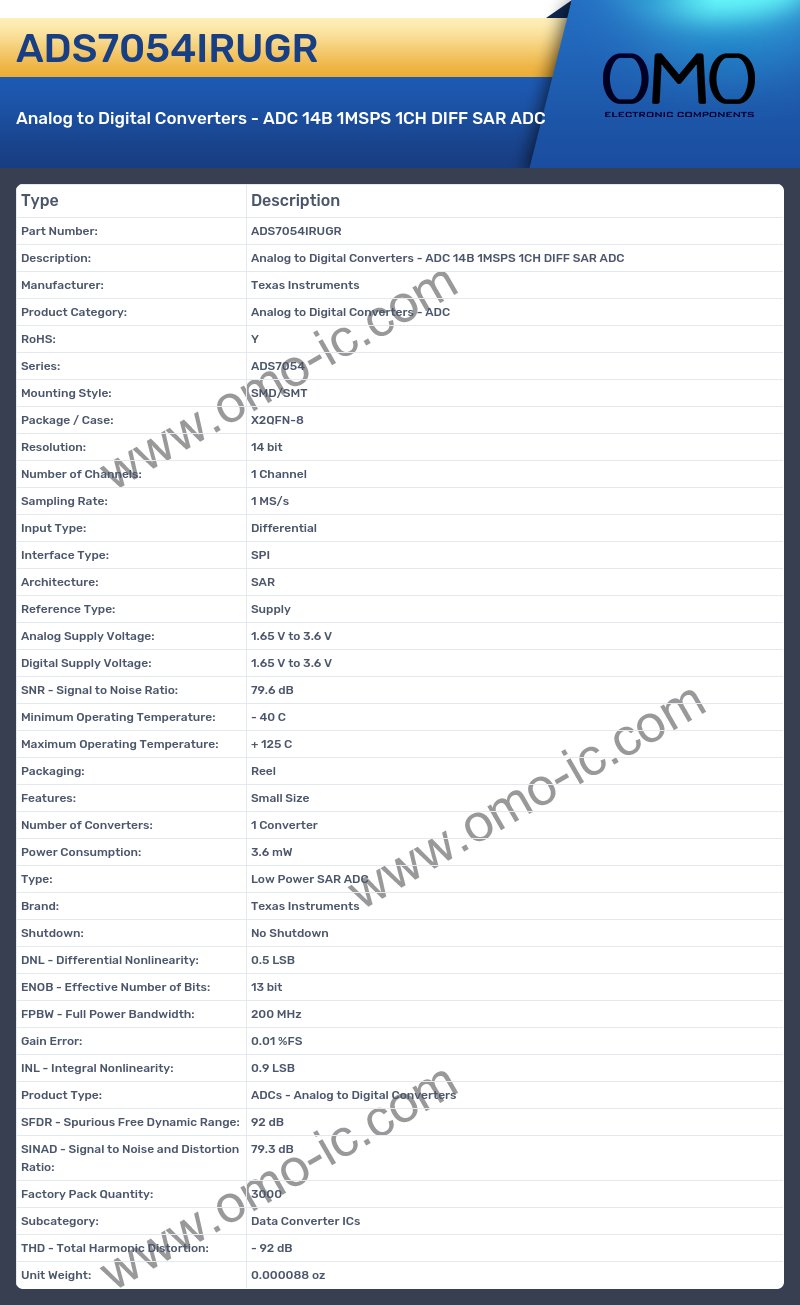

ADS7054IRUGR Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS7054
• Mounting Style: SMD/SMT
• Package / Case: X2QFN-8
• Resolution: 14 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1 MS/s
• Input Type: Differential
• Interface Type: SPI
• Architecture: SAR
• Reference Type: Supply
• Analog Supply Voltage: 1.65 V to 3.6 V
• Digital Supply Voltage: 1.65 V to 3.6 V
• SNR - Signal to Noise Ratio: 79.6 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Features: Small Size
• Number of Converters: 1 Converter
• Power Consumption: 3.6 mW
• Type: Low Power SAR ADC
• Brand: Texas Instruments
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 0.5 LSB
• ENOB - Effective Number of Bits: 13 bit
• FPBW - Full Power Bandwidth: 200 MHz
• Gain Error: 0.01 %FS
• INL - Integral Nonlinearity: 0.9 LSB
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 92 dB
• SINAD - Signal to Noise and Distortion Ratio: 79.3 dB
• Factory Pack Quantity: 3000
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 92 dB
• Unit Weight: 0.000088 oz
