ADS7861EB/2K5 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. QSOP-24 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 500 kS/s. Differential input type Interface Type: SPI SAR architecture External, Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 1.5 mm. 8.75 mm long Texas Instruments is a trusted brand for quality electronics ADS7861EVM is a versatile development platform for hardware and software The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 42.5 mW ADCs - Analog to Digital Converters product type 2500 of 100 Data Converter ICs as subcategory 1. 0.059966 oz of Unit Weight

ADS7861EB/2K5 Image

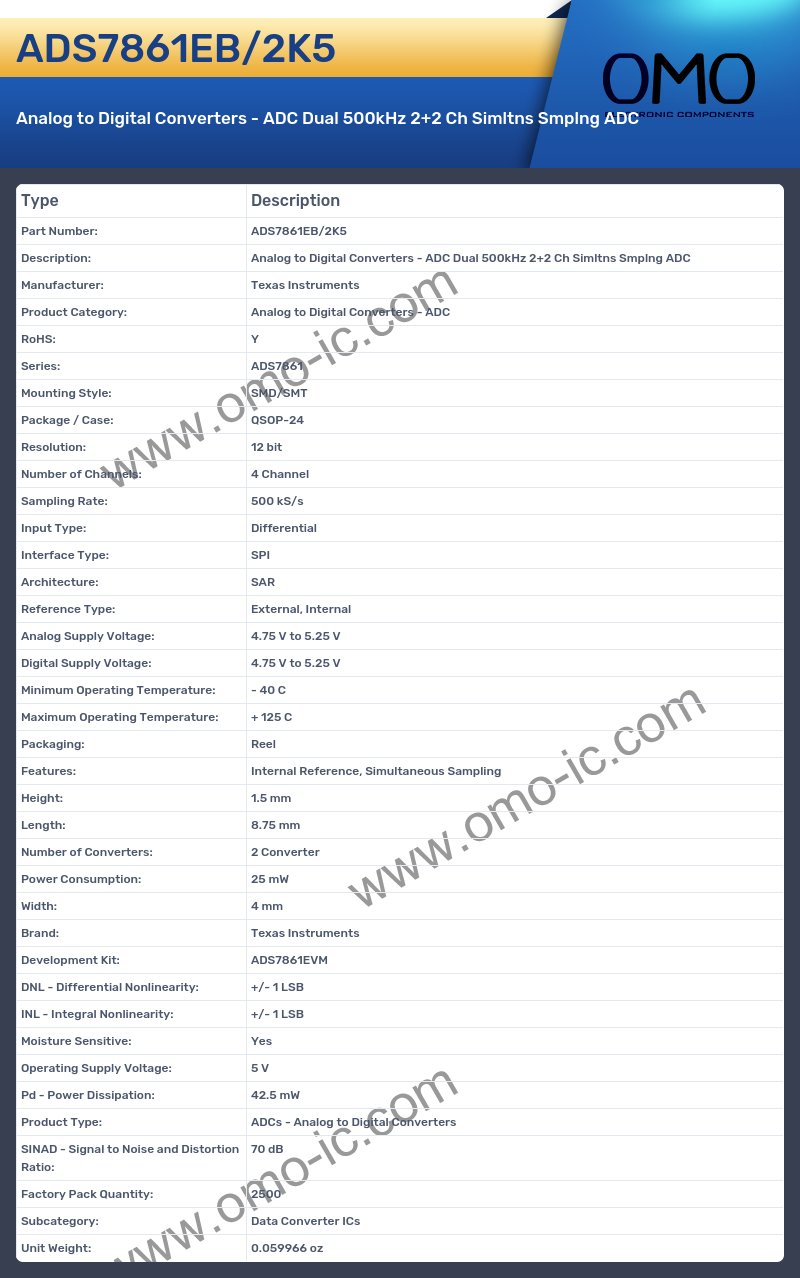

ADS7861EB/2K5 Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS7861
• Mounting Style: SMD/SMT
• Package / Case: QSOP-24
• Resolution: 12 bit
• Number of Channels: 4 Channel
• Sampling Rate: 500 kS/s
• Input Type: Differential
• Interface Type: SPI
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 4.75 V to 5.25 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Features: Internal Reference, Simultaneous Sampling
• Height: 1.5 mm
• Length: 8.75 mm
• Number of Converters: 2 Converter
• Power Consumption: 25 mW
• Width: 4 mm
• Brand: Texas Instruments
• Development Kit: ADS7861EVM
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 42.5 mW
• Product Type: ADCs - Analog to Digital Converters
• SINAD - Signal to Noise and Distortion Ratio: 70 dB
• Factory Pack Quantity: 2500
• Subcategory: Data Converter ICs
• Unit Weight: 0.059966 oz
