ADS7960SDBT Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-38 package/case type is utilized by this product. This product is equipped with 12 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Single-Ended input type Interface Type: SPI SAR architecture External is the reference type. This product requires an 2.7 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 1.15 mm. 9.7 mm long This device belongs to the Precision ADC type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 0.3 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 0.3 LSB Yes regarding Moisture Sensitivity 2.7 V to 5.25 V operating supply voltage range ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory THD is as low as - 75 dB. 1. 0.004374 oz of Unit Weight

ADS7960SDBT Image

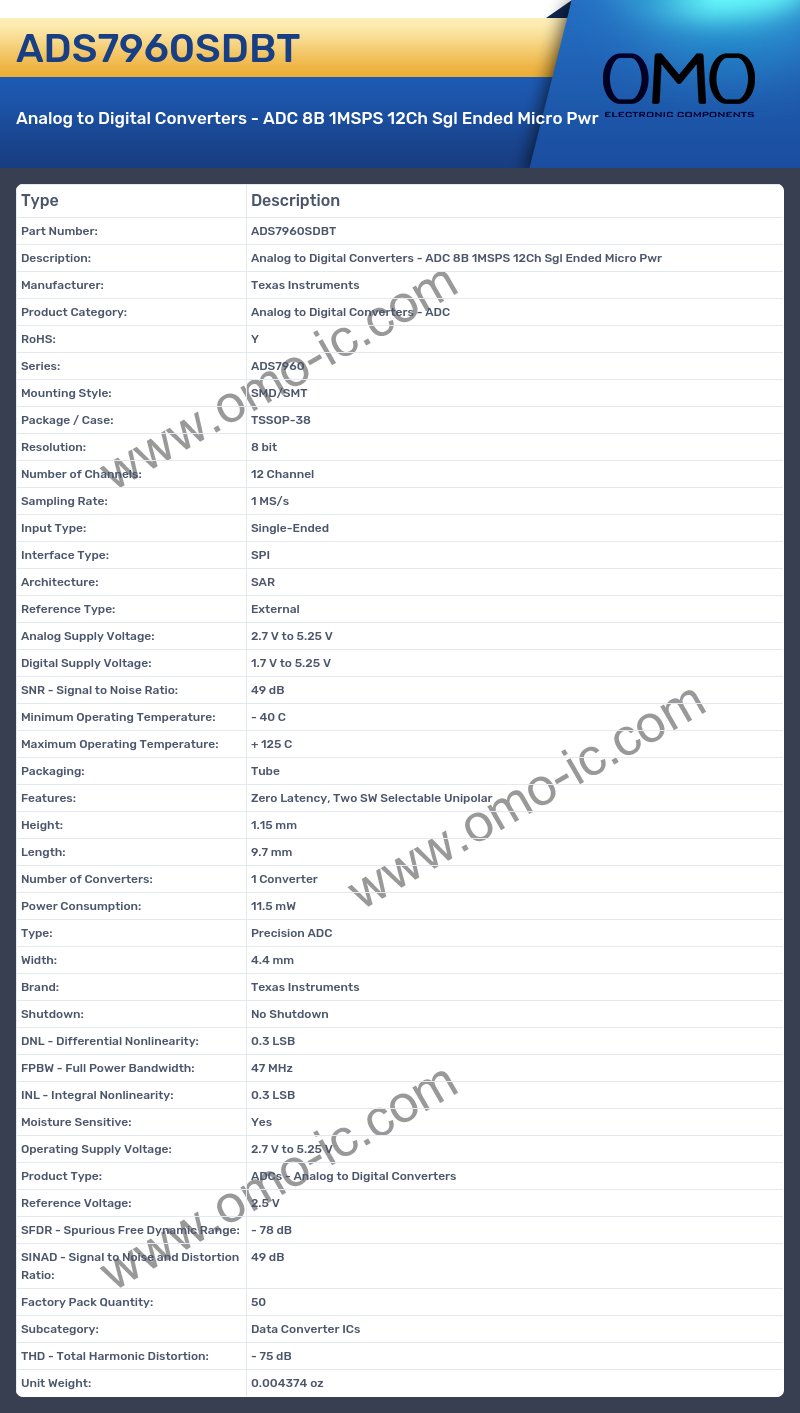

ADS7960SDBT Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS7960
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-38
• Resolution: 8 bit
• Number of Channels: 12 Channel
• Sampling Rate: 1 MS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 2.7 V to 5.25 V
• Digital Supply Voltage: 1.7 V to 5.25 V
• SNR - Signal to Noise Ratio: 49 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Features: Zero Latency, Two SW Selectable Unipolar
• Height: 1.15 mm
• Length: 9.7 mm
• Number of Converters: 1 Converter
• Power Consumption: 11.5 mW
• Type: Precision ADC
• Width: 4.4 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 0.3 LSB
• FPBW - Full Power Bandwidth: 47 MHz
• INL - Integral Nonlinearity: 0.3 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 2.7 V to 5.25 V
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 2.5 V
• SFDR - Spurious Free Dynamic Range: - 78 dB
• SINAD - Signal to Noise and Distortion Ratio: 49 dB
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 75 dB
• Unit Weight: 0.004374 oz
