AMC1301DWV

AMC1301DWV Overview

This product is manufactured by Texas Instruments. This product is equipped with 2 Channel for efficient performance. 5 kVrms isolation voltage Galvanic isolation type Bandwidth at -3 dB is 210 kHz This product has a 93 dB of 50 dB, ensuring reliable signal acquisition. This product has an - 60 uA of 5 uA for precise signal processing. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Precision Isolated Amplifier. The output type is Differential. Isolation Amplifiers Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 0.03 % is 0.2%. Gain ratio is 8.2 V/V. Yes regarding Moisture Sensitivity 81.4 mW Isolation Amplifiers product type This product has a 90 dB of 50 dB, providing reliable power supply noise rejection. 64 of 100 Amplifier ICs as subcategory

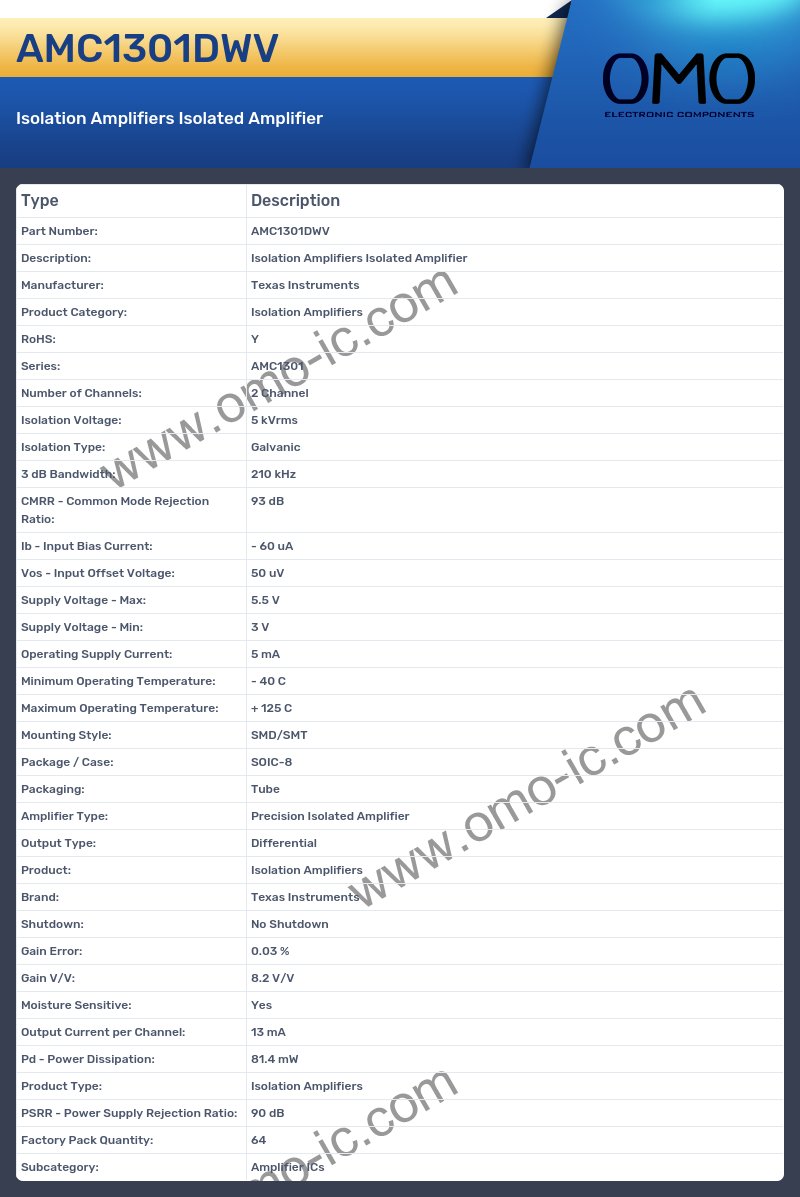

AMC1301DWV Image

AMC1301DWV Specifications

• Manufacturer: Texas Instruments
• Product Category: Isolation Amplifiers
• RoHS: Y
• Series: AMC1301
• Number of Channels: 2 Channel
• Isolation Voltage: 5 kVrms
• Isolation Type: Galvanic
• 3 dB Bandwidth: 210 kHz
• CMRR - Common Mode Rejection Ratio: 93 dB
• Ib - Input Bias Current: - 60 uA
• Vos - Input Offset Voltage: 50 uV
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 3 V
• Operating Supply Current: 5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Amplifier Type: Precision Isolated Amplifier
• Output Type: Differential
• Product: Isolation Amplifiers
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Gain Error: 0.03 %
• Gain V/V: 8.2 V/V
• Moisture Sensitive: Yes
• Output Current per Channel: 13 mA
• Pd - Power Dissipation: 81.4 mW
• Product Type: Isolation Amplifiers
• PSRR - Power Supply Rejection Ratio: 90 dB
• Factory Pack Quantity: 64
• Subcategory: Amplifier ICs
