AMC1303E2520DWV

AMC1303E2520DWV Overview

This product is manufactured by Texas Instruments. Isolated Analog to Digital Converters This device belongs to the Isolated Precision ADC type. This product is equipped with 1 Channel for efficient performance. 3.3 V, 5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The output type is CMOS. The sampling rate of this product is 10 MS/s. Sigma-Delta architecture Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. AMC1303EVM is a versatile development platform for hardware and software The 0.99 LSB, ensuring accurate and precise analog-to-digital conversion. 0.2 % is 0.2%. INL is within 4 LSB The Maximum Clock Frequency of this product is 20 MHz. Data Acquisition ADCs/DACs - Specialized product type 64 of 100 Data Converter ICs as subcategory 1. 0.011171 oz of Unit Weight

AMC1303E2520DWV Image

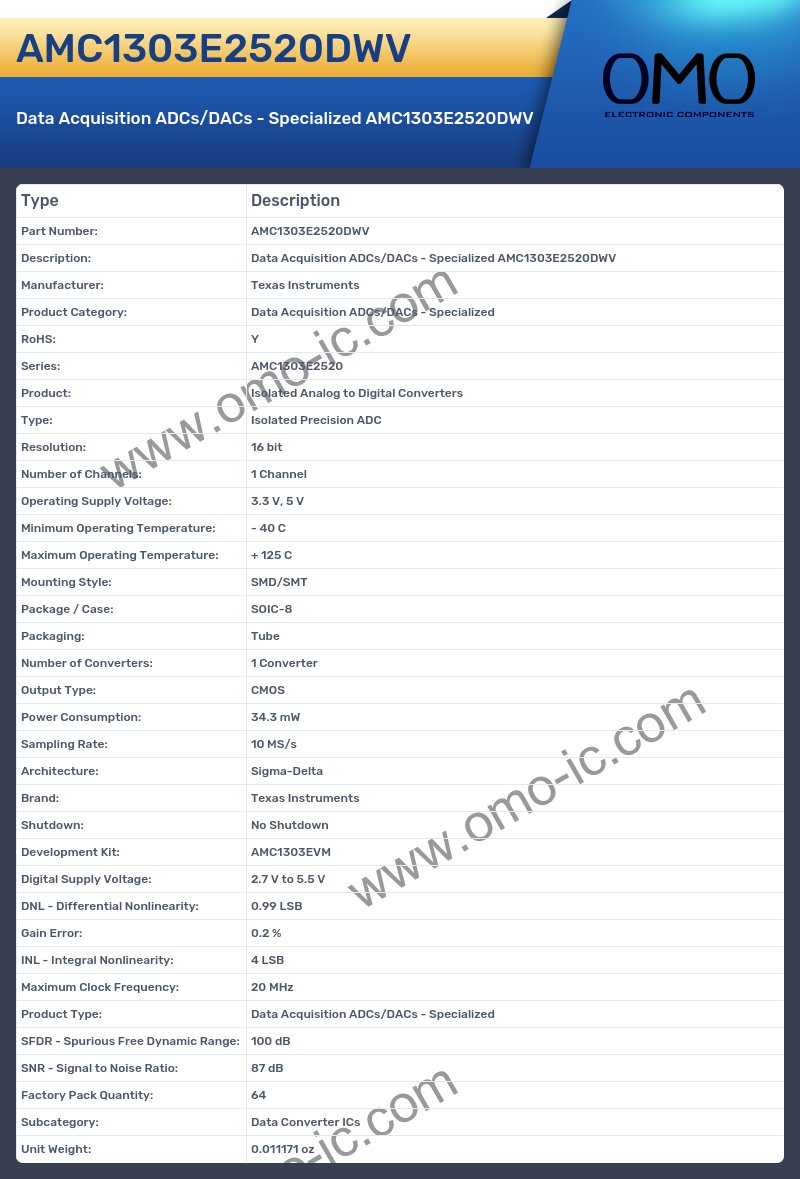

AMC1303E2520DWV Specifications

• Manufacturer: Texas Instruments
• Product Category: Data Acquisition ADCs/DACs - Specialized
• RoHS: Y
• Series: AMC1303E2520
• Product: Isolated Analog to Digital Converters
• Type: Isolated Precision ADC
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Operating Supply Voltage: 3.3 V, 5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Number of Converters: 1 Converter
• Output Type: CMOS
• Power Consumption: 34.3 mW
• Sampling Rate: 10 MS/s
• Architecture: Sigma-Delta
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Development Kit: AMC1303EVM
• Digital Supply Voltage: 2.7 V to 5.5 V
• DNL - Differential Nonlinearity: 0.99 LSB
• Gain Error: 0.2 %
• INL - Integral Nonlinearity: 4 LSB
• Maximum Clock Frequency: 20 MHz
• Product Type: Data Acquisition ADCs/DACs - Specialized
• SFDR - Spurious Free Dynamic Range: 100 dB
• SNR - Signal to Noise Ratio: 87 dB
• Factory Pack Quantity: 64
• Subcategory: Data Converter ICs
• Unit Weight: 0.011171 oz
