CD4009UBMG4

CD4009UBMG4 Overview

This product is manufactured by Texas Instruments. This product has 6 Circuit circuit. The product uses the CD4000 logic family. CMOS. Supply Voltage - Max: 18 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Converter The height of the product is 1.5 mm (Max). CMOS input type 10 mm (Max) long The output type is CMOS. Texas Instruments is a trusted brand for quality electronics The product's CMOS input level ensures compatibility with a wide range of devices. CMOS Output Level for flexible output configuration This product has a - 1.6 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 4 mA 5 V operating supply voltage range Inverters product type The propagation delay time is 140 ns. 40 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

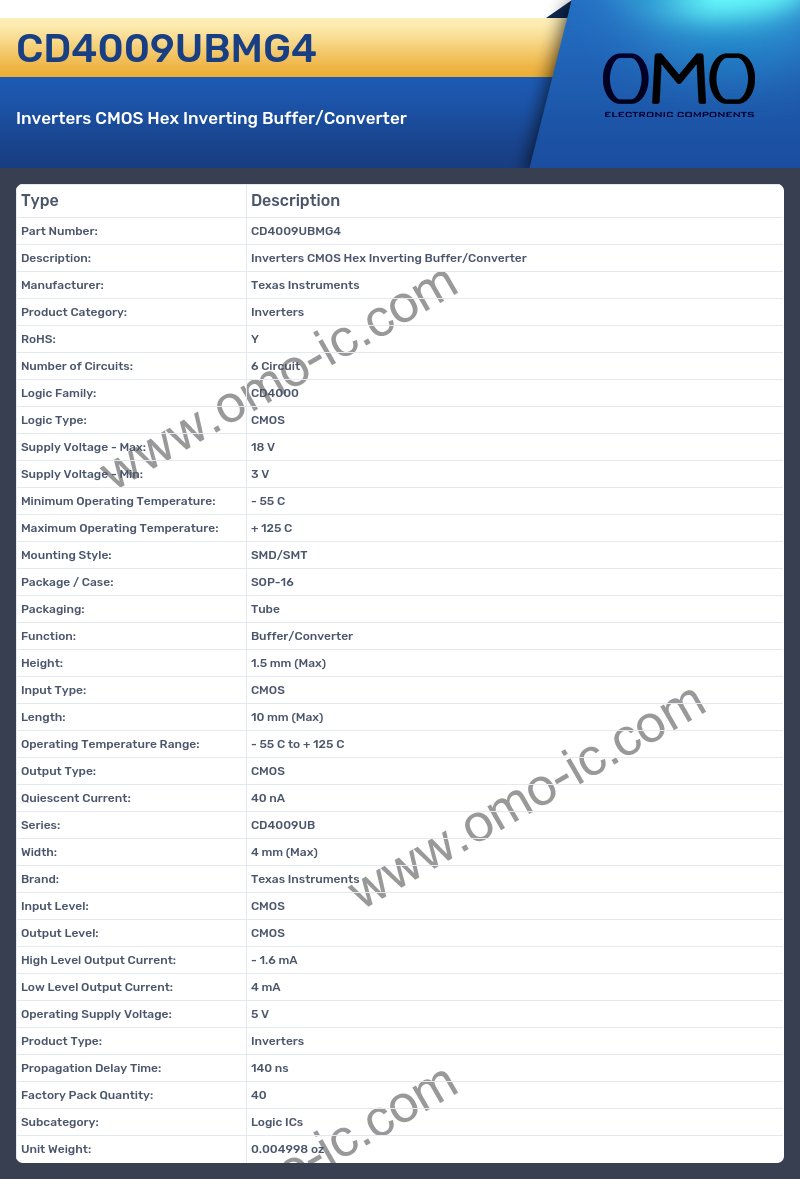

CD4009UBMG4 Image

CD4009UBMG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Inverters
• RoHS: Y
• Number of Circuits: 6 Circuit
• Logic Family: CD4000
• Logic Type: CMOS
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Tube
• Function: Buffer/Converter
• Height: 1.5 mm (Max)
• Input Type: CMOS
• Length: 10 mm (Max)
• Operating Temperature Range: - 55 C to + 125 C
• Output Type: CMOS
• Quiescent Current: 40 nA
• Series: CD4009UB
• Width: 4 mm (Max)
• Brand: Texas Instruments
• Input Level: CMOS
• Output Level: CMOS
• High Level Output Current: - 1.6 mA
• Low Level Output Current: 4 mA
• Operating Supply Voltage: 5 V
• Product Type: Inverters
• Propagation Delay Time: 140 ns
• Factory Pack Quantity: 40
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
