CD4503BM

CD4503BM Overview

This product is manufactured by Texas Instruments. Polarity type: Non-Inverting Supply Voltage - Max: 18 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 1.5 mm (Max). 10 mm (Max) long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the CD4000 logic family. CMOS. This product is equipped with 5 for efficient performance. Maximum supply current: 20 uA This product has a - 8.2 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 19.2 mA 3 V to 18 V operating supply voltage range 100 mW Buffers & Line Drivers product type The propagation delay time is 150 ns at 5 V, 70 ns at 10 V, 50 ns at 15 V. 40 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

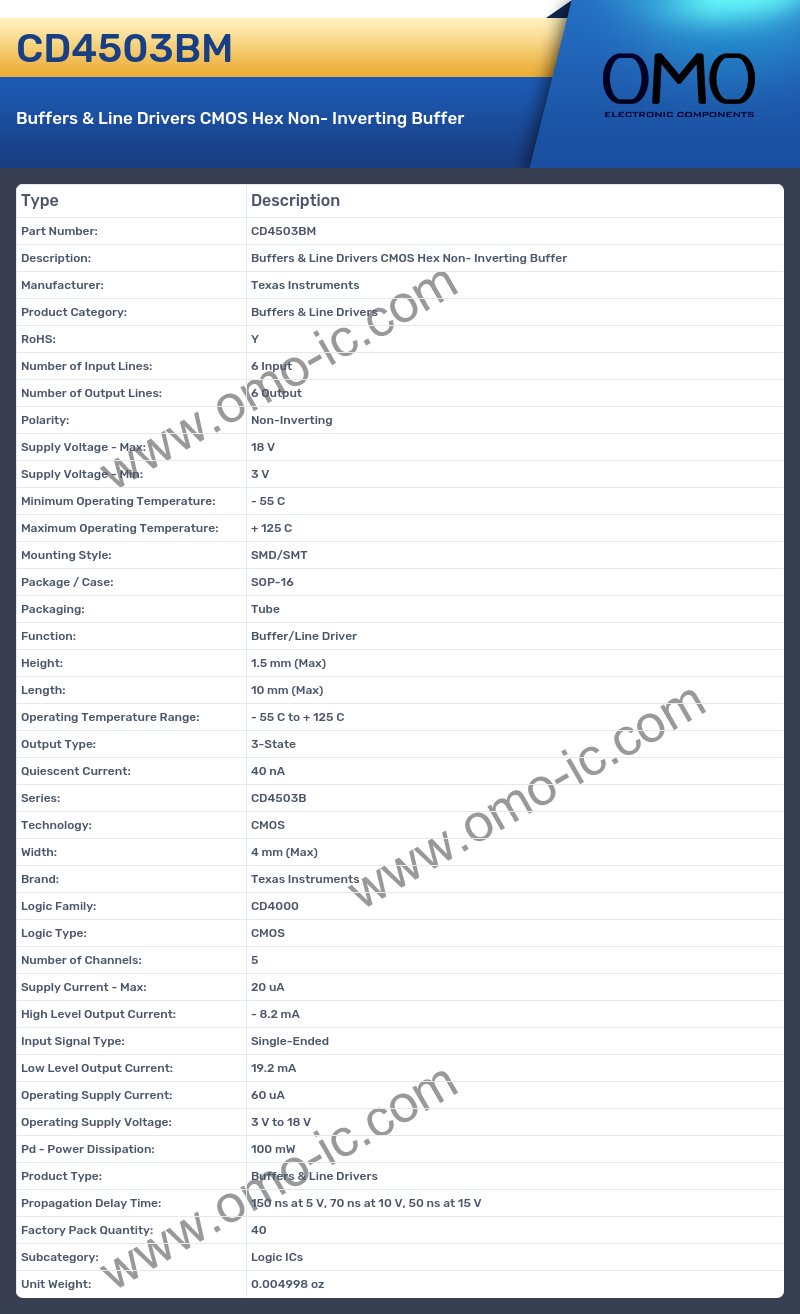

CD4503BM Image

CD4503BM Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 6 Input
• Number of Output Lines: 6 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 1.5 mm (Max)
• Length: 10 mm (Max)
• Operating Temperature Range: - 55 C to + 125 C
• Output Type: 3-State
• Quiescent Current: 40 nA
• Series: CD4503B
• Technology: CMOS
• Width: 4 mm (Max)
• Brand: Texas Instruments
• Logic Family: CD4000
• Logic Type: CMOS
• Number of Channels: 5
• Supply Current - Max: 20 uA
• High Level Output Current: - 8.2 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 19.2 mA
• Operating Supply Current: 60 uA
• Operating Supply Voltage: 3 V to 18 V
• Pd - Power Dissipation: 100 mW
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 150 ns at 5 V, 70 ns at 10 V, 50 ns at 15 V
• Factory Pack Quantity: 40
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
