CD74AC138E Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the AC logic family. Number of bits: 8 bit The propagation delay time is 11 ns. Supply Voltage - Min: 1.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Decoder/Demultiplexer The height of the product is 4.57 mm. 19.3 mm long This product has Dual circuit. Texas Instruments is a trusted brand for quality electronics Decoders/Demultiplexers. Maximum supply current: 0.008 mA This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA The Maximum Clock Frequency of this product is 100 MHz. 1.5 V to 5.5 V operating supply voltage range 1000 mW Encoders, Decoders, Multiplexers & Demultiplexers product type 25 of 100 Logic ICs as subcategory 1. 0.033570 oz of Unit Weight

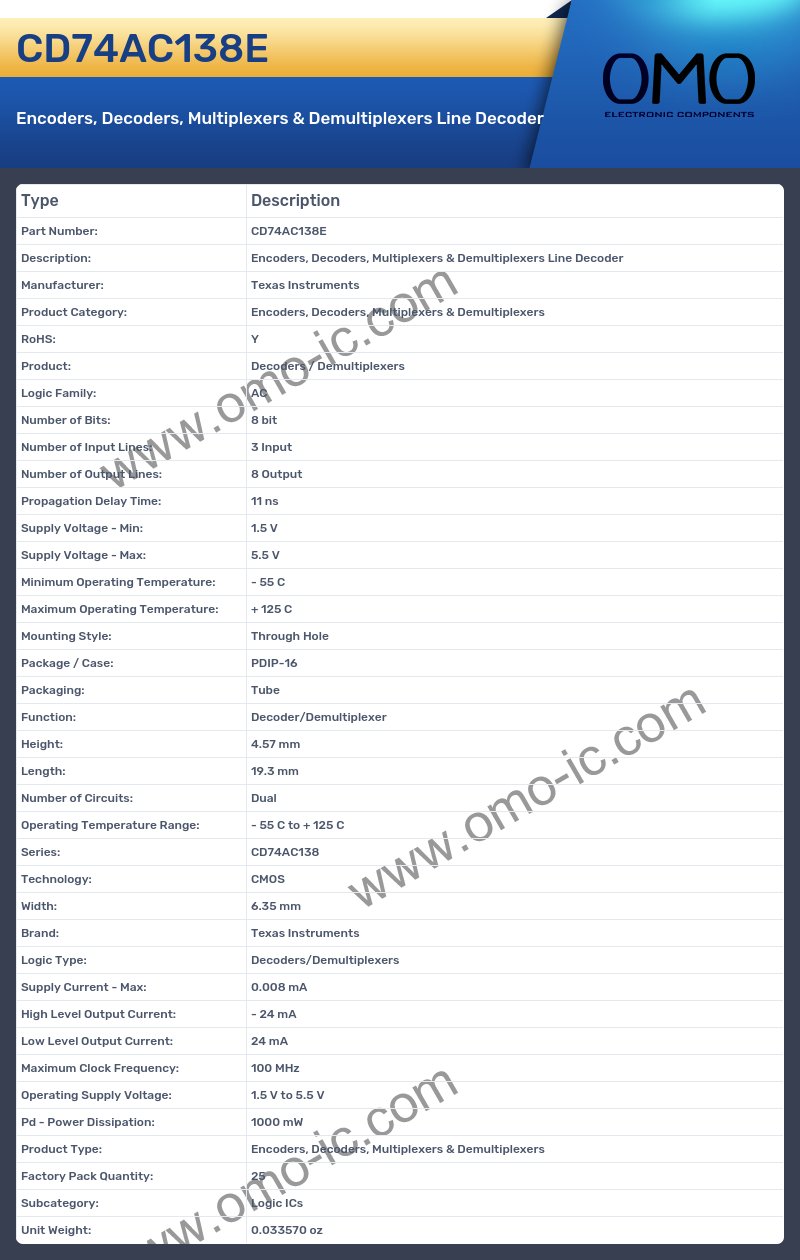

CD74AC138E Image

CD74AC138E Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: AC
• Number of Bits: 8 bit
• Number of Input Lines: 3 Input
• Number of Output Lines: 8 Output
• Propagation Delay Time: 11 ns
• Supply Voltage - Min: 1.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Packaging: Tube
• Function: Decoder/Demultiplexer
• Height: 4.57 mm
• Length: 19.3 mm
• Number of Circuits: Dual
• Operating Temperature Range: - 55 C to + 125 C
• Series: CD74AC138
• Technology: CMOS
• Width: 6.35 mm
• Brand: Texas Instruments
• Logic Type: Decoders/Demultiplexers
• Supply Current - Max: 0.008 mA
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Maximum Clock Frequency: 100 MHz
• Operating Supply Voltage: 1.5 V to 5.5 V
• Pd - Power Dissipation: 1000 mW
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.033570 oz
