CSD17318Q2

CSD17318Q2 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WSON-6 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 25 A continuous drain current Rds On value of 16.9 mOhms Gate-Source Threshold Voltage Range: 600 mV Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 16 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 1 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 42 S 4 ns fall time MOSFET product type Rise Time is 16 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 13 ns. The typical turn-on delay time is 5 ns. 1. 0.000194 oz of Unit Weight

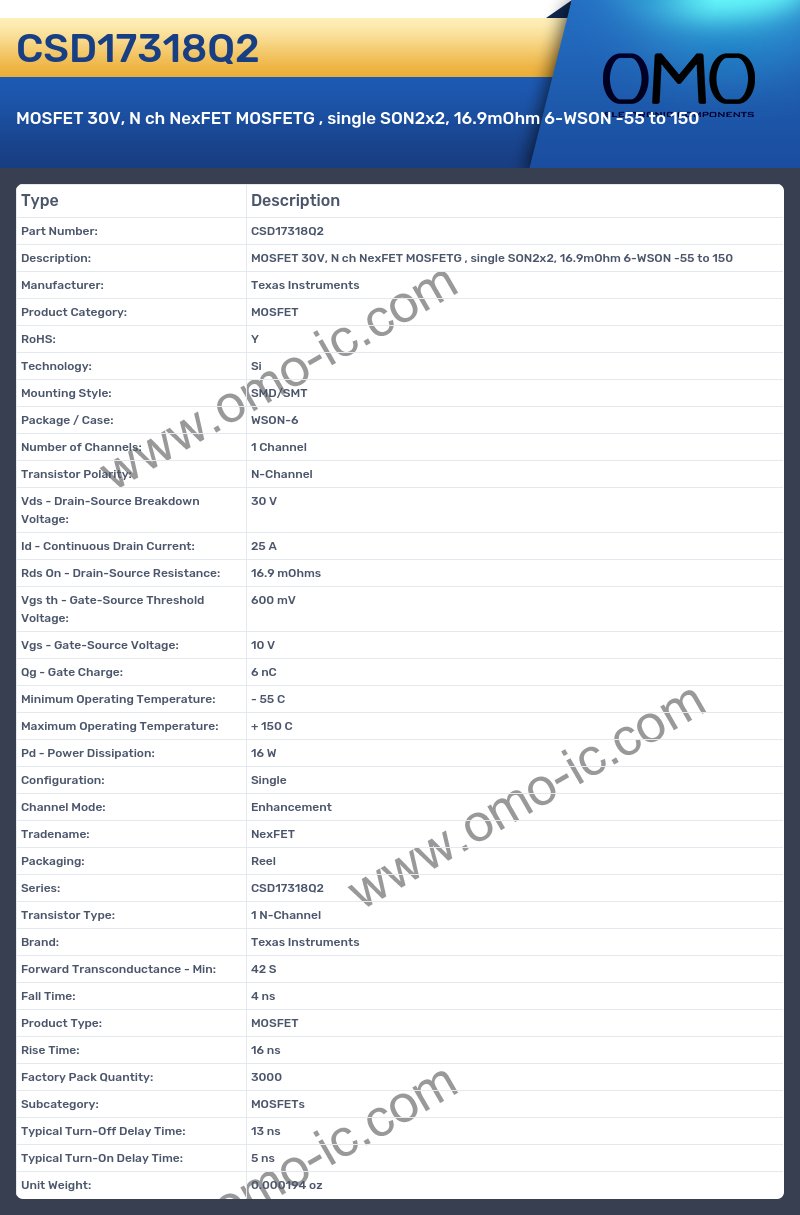

CSD17318Q2 Image

CSD17318Q2 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: WSON-6
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 25 A
• Rds On - Drain-Source Resistance: 16.9 mOhms
• Vgs th - Gate-Source Threshold Voltage: 600 mV
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 6 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 16 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Series: CSD17318Q2
• Transistor Type: 1 N-Channel
• Brand: Texas Instruments
• Forward Transconductance - Min: 42 S
• Fall Time: 4 ns
• Product Type: MOSFET
• Rise Time: 16 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 13 ns
• Typical Turn-On Delay Time: 5 ns
• Unit Weight: 0.000194 oz
