CSD25401Q3

CSD25401Q3 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VSON-Clip-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 20 V 14 A continuous drain current Rds On value of 11.7 mOhms Gate-Source Voltage: 12 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.8 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 1 mm. 3.3 mm long The Transistor Type is 1 P-Channel. Texas Instruments is a trusted brand for quality electronics 12.6 ns fall time MOSFET product type Rise Time is 3.9 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 13.5 ns. The typical turn-on delay time is 8.1 ns.

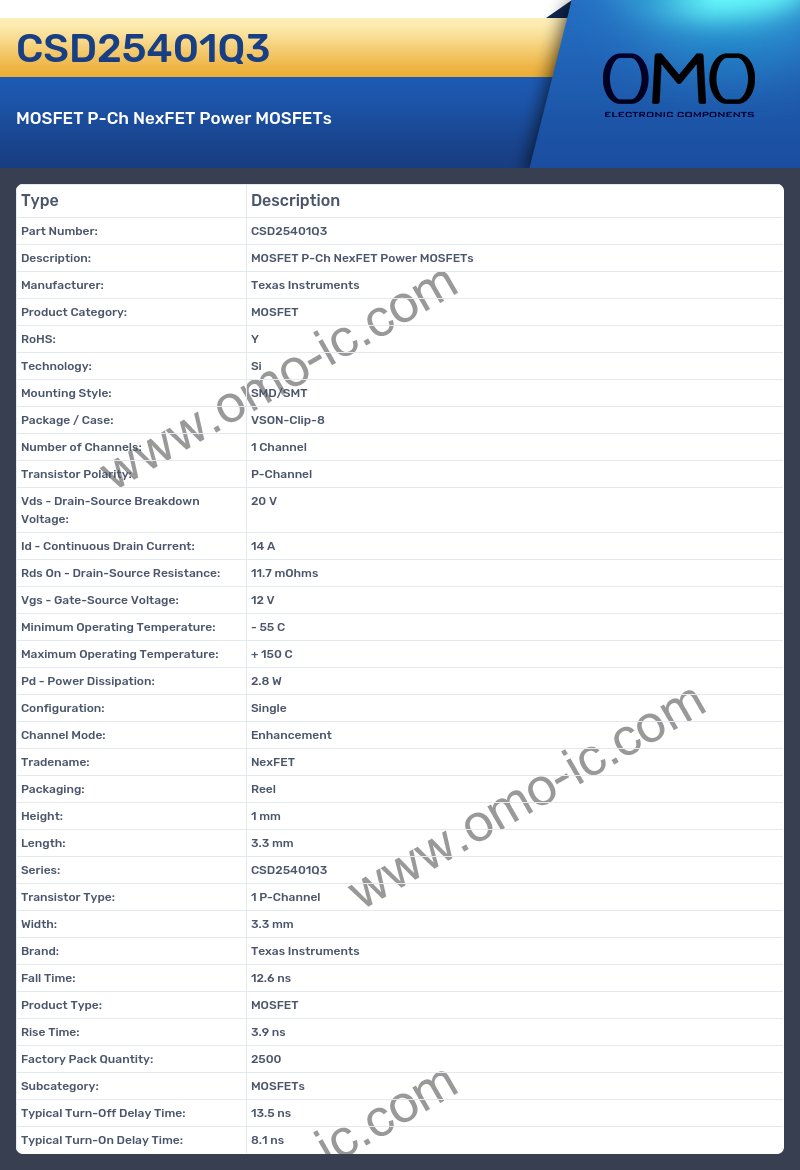

CSD25401Q3 Image

CSD25401Q3 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: VSON-Clip-8
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 14 A
• Rds On - Drain-Source Resistance: 11.7 mOhms
• Vgs - Gate-Source Voltage: 12 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.8 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 1 mm
• Length: 3.3 mm
• Series: CSD25401Q3
• Transistor Type: 1 P-Channel
• Width: 3.3 mm
• Brand: Texas Instruments
• Fall Time: 12.6 ns
• Product Type: MOSFET
• Rise Time: 3.9 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 13.5 ns
• Typical Turn-On Delay Time: 8.1 ns
