CSD25501F3

CSD25501F3 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PICOSTAR-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 20 V 3.6 A continuous drain current Rds On value of 260 mOhms Gate-Source Threshold Voltage Range: 1.05 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 500 mW This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The Transistor Type is 1 P-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 3.4 S 945 ns fall time MOSFET product type Rise Time is 428 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 1154 ns. The typical turn-on delay time is 474 ns. 1. 0.000011 oz of Unit Weight

CSD25501F3 Image

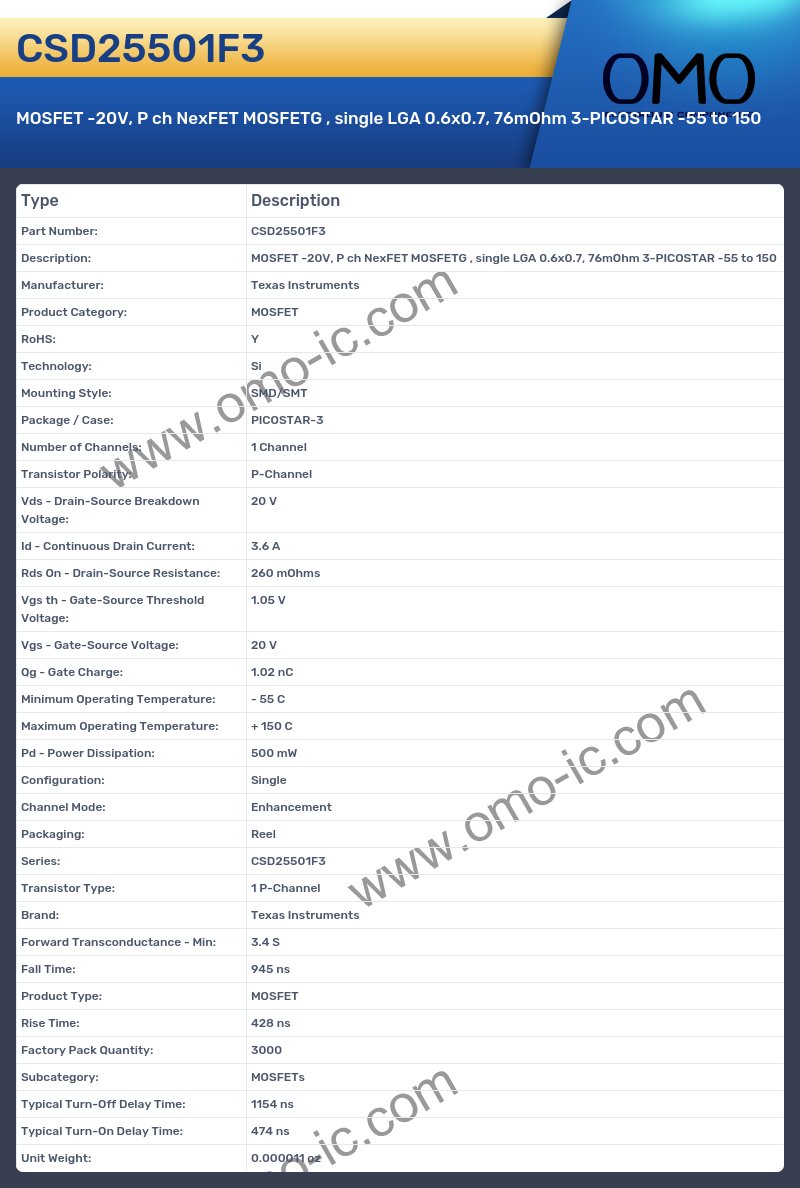

CSD25501F3 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PICOSTAR-3
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 3.6 A
• Rds On - Drain-Source Resistance: 260 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.05 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 1.02 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 500 mW
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Series: CSD25501F3
• Transistor Type: 1 P-Channel
• Brand: Texas Instruments
• Forward Transconductance - Min: 3.4 S
• Fall Time: 945 ns
• Product Type: MOSFET
• Rise Time: 428 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 1154 ns
• Typical Turn-On Delay Time: 474 ns
• Unit Weight: 0.000011 oz
