CSD75205W1015

CSD75205W1015 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. DSBGA-6 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 20 V 1.2 A continuous drain current Rds On value of 95 mOhms Gate-Source Voltage: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 750 mW (3/4 W) This product has a Dual configuration. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.625 mm. 1.5 mm long The Transistor Type is 2 P-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 5 S 17 ns fall time MOSFET product type Rise Time is 5.3 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 32 ns. The typical turn-on delay time is 6.3 ns. 1. 0.000060 oz of Unit Weight

CSD75205W1015 Image

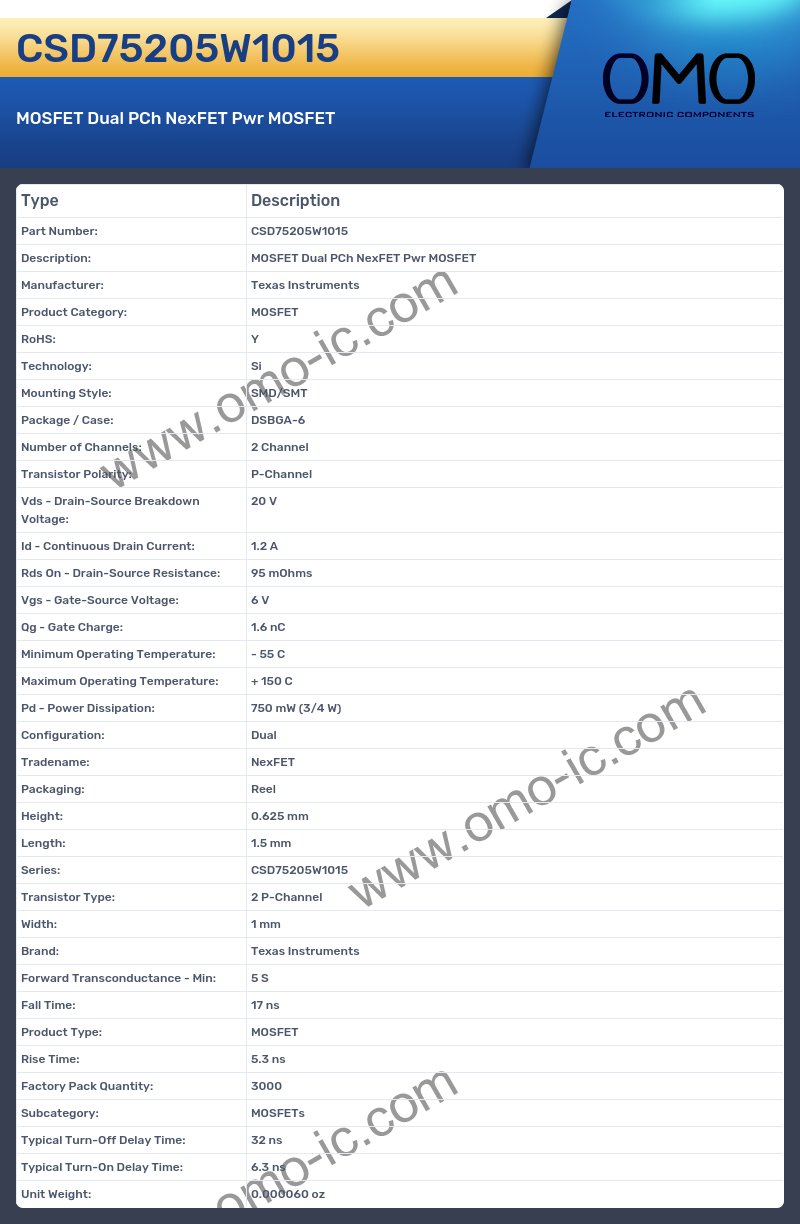

CSD75205W1015 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: DSBGA-6
• Number of Channels: 2 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 1.2 A
• Rds On - Drain-Source Resistance: 95 mOhms
• Vgs - Gate-Source Voltage: 6 V
• Qg - Gate Charge: 1.6 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 750 mW (3/4 W)
• Configuration: Dual
• Tradename: NexFET
• Packaging: Reel
• Height: 0.625 mm
• Length: 1.5 mm
• Series: CSD75205W1015
• Transistor Type: 2 P-Channel
• Width: 1 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 5 S
• Fall Time: 17 ns
• Product Type: MOSFET
• Rise Time: 5.3 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 32 ns
• Typical Turn-On Delay Time: 6.3 ns
• Unit Weight: 0.000060 oz
