CSD75301W1015

CSD75301W1015 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. DSBGA-6 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 20 V 1.2 A continuous drain current Rds On value of 100 mOhms Gate-Source Voltage: 8 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 800 mW This product has a Dual configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.625 mm. 1.5 mm long MOSFET Small Signal The Transistor Type is 2 P-Channel. Texas Instruments is a trusted brand for quality electronics 16 ns fall time MOSFET product type Rise Time is 1.7 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 38 ns. The typical turn-on delay time is 3 ns. 1. 0.000060 oz of Unit Weight

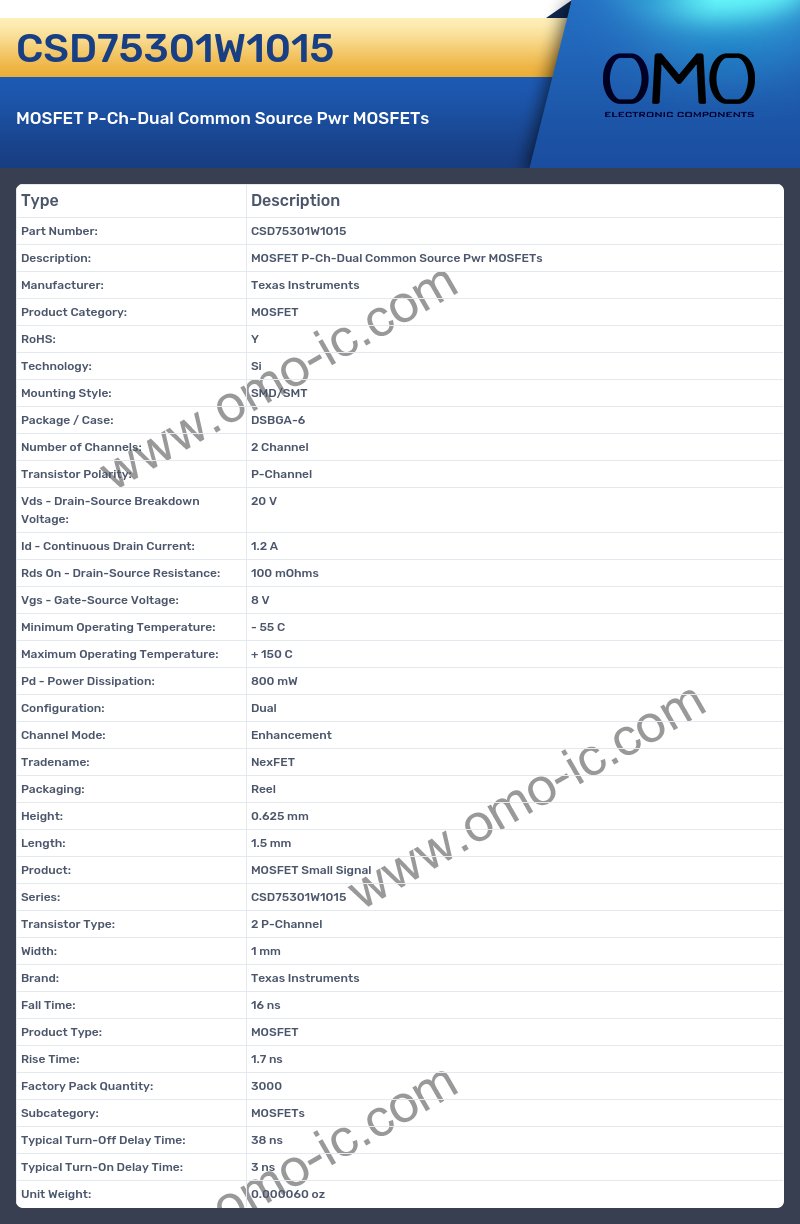

CSD75301W1015 Image

CSD75301W1015 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: DSBGA-6
• Number of Channels: 2 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 1.2 A
• Rds On - Drain-Source Resistance: 100 mOhms
• Vgs - Gate-Source Voltage: 8 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 800 mW
• Configuration: Dual
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 0.625 mm
• Length: 1.5 mm
• Product: MOSFET Small Signal
• Series: CSD75301W1015
• Transistor Type: 2 P-Channel
• Width: 1 mm
• Brand: Texas Instruments
• Fall Time: 16 ns
• Product Type: MOSFET
• Rise Time: 1.7 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 38 ns
• Typical Turn-On Delay Time: 3 ns
• Unit Weight: 0.000060 oz
