CSD85302LT

CSD85302LT Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PICOSTAR-4 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 20 V 7 A continuous drain current Rds On value of 24 mOhms Gate-Source Threshold Voltage Range: 680 mV Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1.7 W This product has a Dual configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.22 mm. 1.35 mm long The Transistor Type is 2 N-Channel. Texas Instruments is a trusted brand for quality electronics 99 ns fall time MOSFET product type Rise Time is 54 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 173 ns. The typical turn-on delay time is 37 ns. 1. 0.000042 oz of Unit Weight

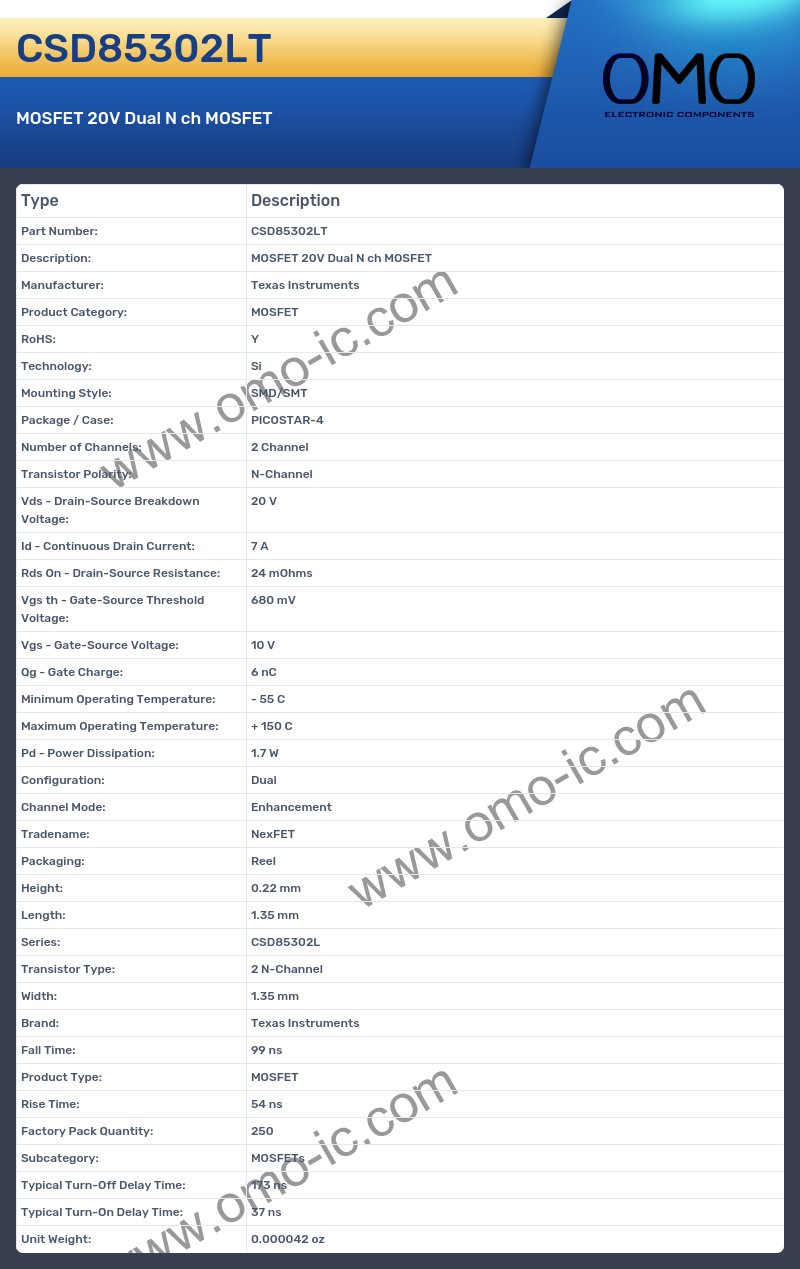

CSD85302LT Image

CSD85302LT Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PICOSTAR-4
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 7 A
• Rds On - Drain-Source Resistance: 24 mOhms
• Vgs th - Gate-Source Threshold Voltage: 680 mV
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 6 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 1.7 W
• Configuration: Dual
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 0.22 mm
• Length: 1.35 mm
• Series: CSD85302L
• Transistor Type: 2 N-Channel
• Width: 1.35 mm
• Brand: Texas Instruments
• Fall Time: 99 ns
• Product Type: MOSFET
• Rise Time: 54 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 173 ns
• Typical Turn-On Delay Time: 37 ns
• Unit Weight: 0.000042 oz
