HMC6505ALC5

HMC6505ALC5 Overview

This product is manufactured by Analog Devices Inc.. Up Converters This product operates at 5.5 GHz to 8.6 GHz RF frequency range. The IF Frequency range is DC to 3 GHz. LO Frequency range is 5 GHz to 11.6 GHz. 14 dB is 11.5 dB. The 22 dBm is 17 dBm. 5 V operating supply voltage range The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SMT-32 package/case type is utilized by this product. Cut Tape packaging for easy dispensing Analog Devices is a trusted brand for quality electronics The minimum operating temperature of this product is - 40 C. Yes regarding Moisture Sensitivity The 35 dBm value is 32 dBm. 1.65 W Up-Down Converters product type 50 of 100 Wireless & RF Integrated Circuits as subcategory

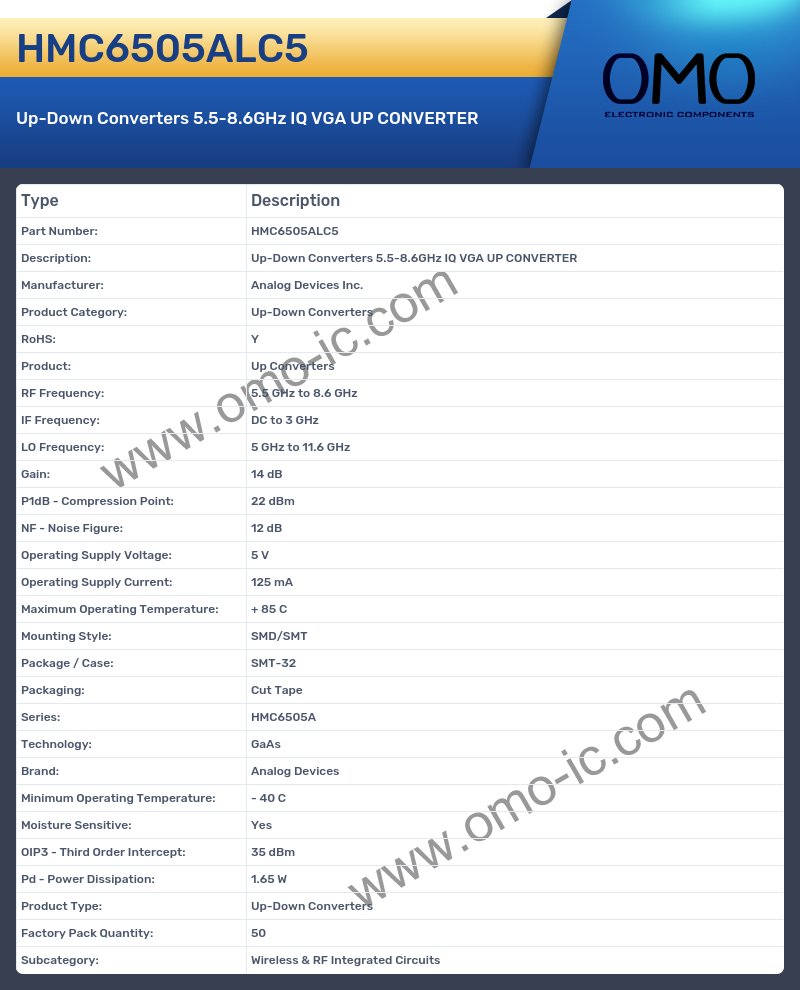

HMC6505ALC5 Image

HMC6505ALC5 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Up-Down Converters
• RoHS: Y
• Product: Up Converters
• RF Frequency: 5.5 GHz to 8.6 GHz
• IF Frequency: DC to 3 GHz
• LO Frequency: 5 GHz to 11.6 GHz
• Gain: 14 dB
• P1dB - Compression Point: 22 dBm
• NF - Noise Figure: 12 dB
• Operating Supply Voltage: 5 V
• Operating Supply Current: 125 mA
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SMT-32
• Packaging: Cut Tape
• Series: HMC6505A
• Technology: GaAs
• Brand: Analog Devices
• Minimum Operating Temperature: - 40 C
• Moisture Sensitive: Yes
• OIP3 - Third Order Intercept: 35 dBm
• Pd - Power Dissipation: 1.65 W
• Product Type: Up-Down Converters
• Factory Pack Quantity: 50
• Subcategory: Wireless & RF Integrated Circuits
