ISO5852SDW

ISO5852SDW Overview

This product is manufactured by Texas Instruments. Isolated Gate Drivers This device belongs to the Inverting, Non-Inverting type. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Rise Time is 18 ns. 20 ns fall time Supply Voltage - Min: 2.25 V Supply Voltage - Max: 5.5 V Maximum propagation delay: 110 ns 1.255 W The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Output Voltage is 15 V to 30 V Texas Instruments is a trusted brand for quality electronics Yes regarding Moisture Sensitivity Gate Drivers product type 40 of 100 PMIC - Power Management ICs as subcategory 1. 0.023492 oz of Unit Weight

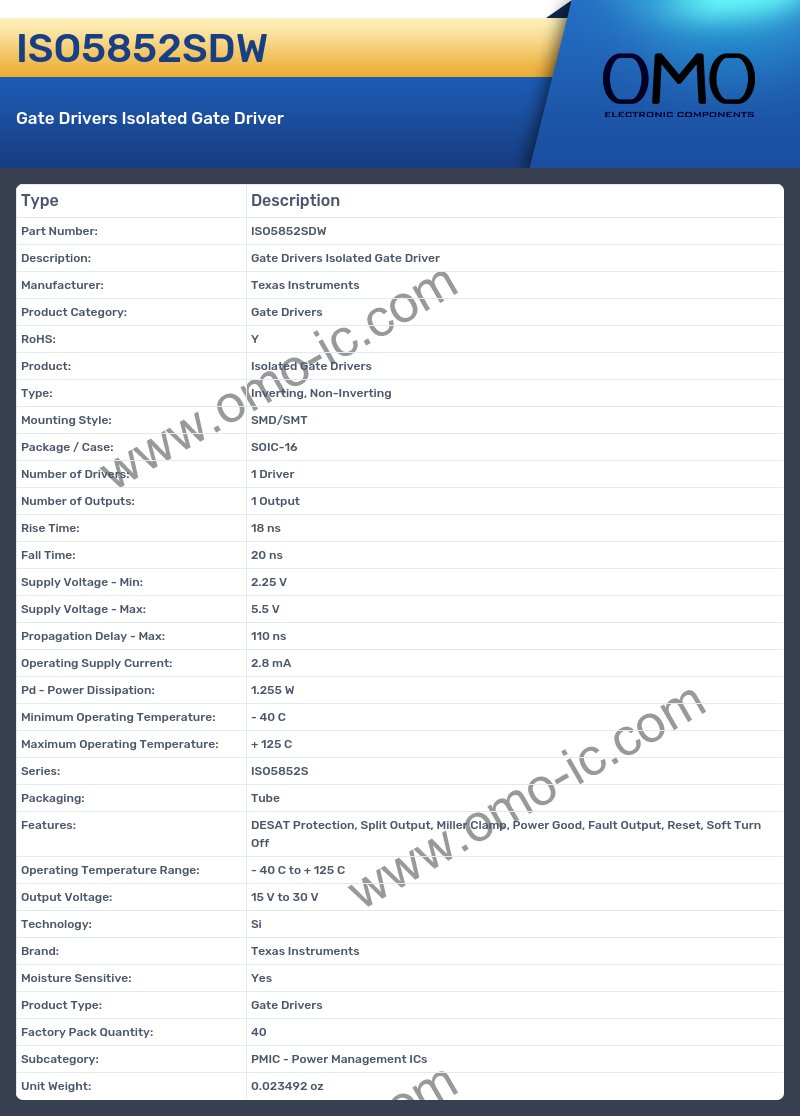

ISO5852SDW Image

ISO5852SDW Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: Isolated Gate Drivers
• Type: Inverting, Non-Inverting
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Rise Time: 18 ns
• Fall Time: 20 ns
• Supply Voltage - Min: 2.25 V
• Supply Voltage - Max: 5.5 V
• Propagation Delay - Max: 110 ns
• Operating Supply Current: 2.8 mA
• Pd - Power Dissipation: 1.255 W
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: ISO5852S
• Packaging: Tube
• Features: DESAT Protection, Split Output, Miller Clamp, Power Good, Fault Output, Reset, Soft Turn Off
• Operating Temperature Range: - 40 C to + 125 C
• Output Voltage: 15 V to 30 V
• Technology: Si
• Brand: Texas Instruments
• Moisture Sensitive: Yes
• Product Type: Gate Drivers
• Factory Pack Quantity: 40
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.023492 oz
