ISO7763DW

ISO7763DW Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. This product is equipped with 6 Channel for efficient performance. Polarity type: Unidirectional 5000 Vrms isolation voltage Capacitive Coupling isolation type The 100 Mb/s data rate; The propagation delay time is 11 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.25 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Digital Isolators This device belongs to the High Performance type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 3 Channel: 2 channels The product has a maximum fall time of 3.9 ns. 3.9 ns is the maximum rise time. Yes regarding Moisture Sensitivity Digital Isolators product type The 0.4 ns of this product is 500 ps. This product has no 3 Channel reverse channels. 40 of 100 Interface ICs as subcategory 1. 0.026773 oz of Unit Weight

ISO7763DW Image

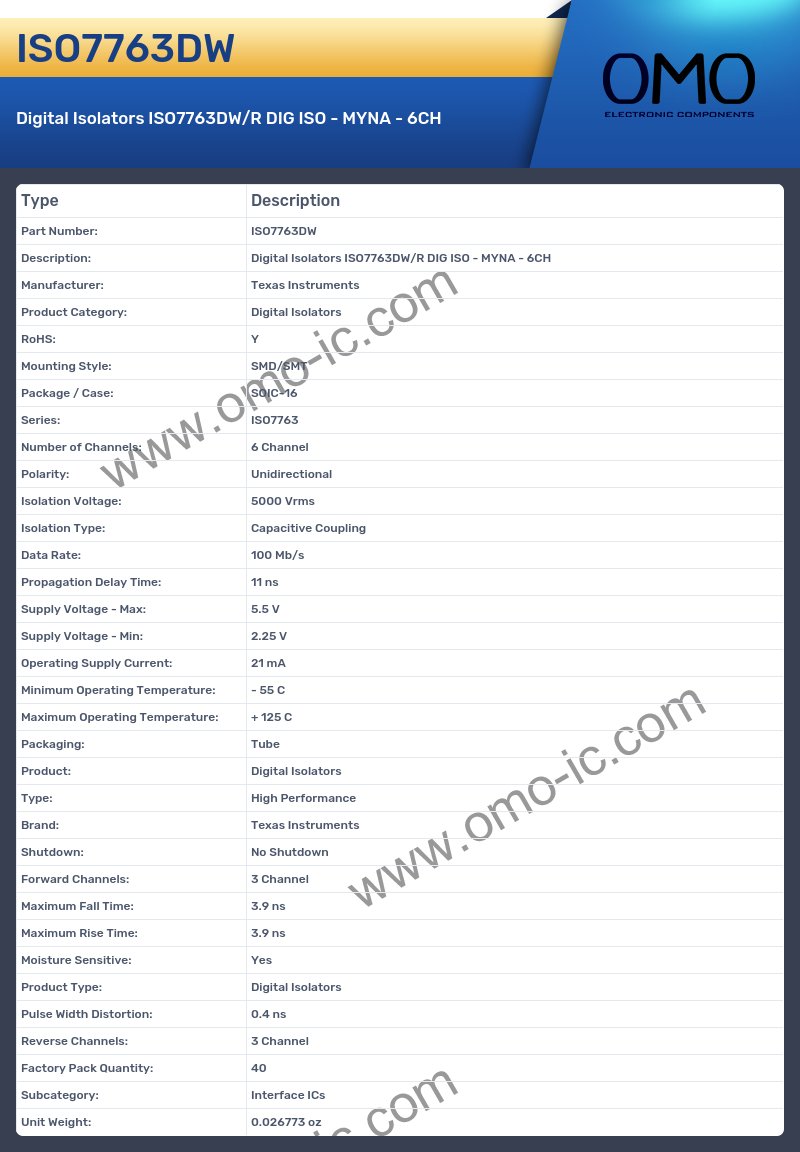

ISO7763DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Digital Isolators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Series: ISO7763
• Number of Channels: 6 Channel
• Polarity: Unidirectional
• Isolation Voltage: 5000 Vrms
• Isolation Type: Capacitive Coupling
• Data Rate: 100 Mb/s
• Propagation Delay Time: 11 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.25 V
• Operating Supply Current: 21 mA
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Product: Digital Isolators
• Type: High Performance
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Forward Channels: 3 Channel
• Maximum Fall Time: 3.9 ns
• Maximum Rise Time: 3.9 ns
• Moisture Sensitive: Yes
• Product Type: Digital Isolators
• Pulse Width Distortion: 0.4 ns
• Reverse Channels: 3 Channel
• Factory Pack Quantity: 40
• Subcategory: Interface ICs
• Unit Weight: 0.026773 oz
