L272D

L272D Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Supply Voltage - Max: 28 V This product is equipped with 2 Channel for efficient performance. This product has a 60 dB of 50 dB, ensuring reliable signal acquisition. This product has an 2.5 uA of 5 uA for precise signal processing. Supply Voltage - Min: 4 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is General Purpose Amplifier. The height of the product is 1.65 mm (Max). 10 mm (Max) long Operational Amplifiers Supply Type: Single, Dual STMicroelectronics is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 14 V. +/- 2 V minimum dual supply voltage Yes regarding Moisture Sensitivity 4 V to 28 V, +/- 2 V to +/- 14 V operating supply voltage range 1.2 W Op Amps - Operational Amplifiers product type This product has a 54 dB of 50 dB, providing reliable power supply noise rejection. 1000 of 100 Amplifier ICs as subcategory 1. 0.023492 oz of Unit Weight

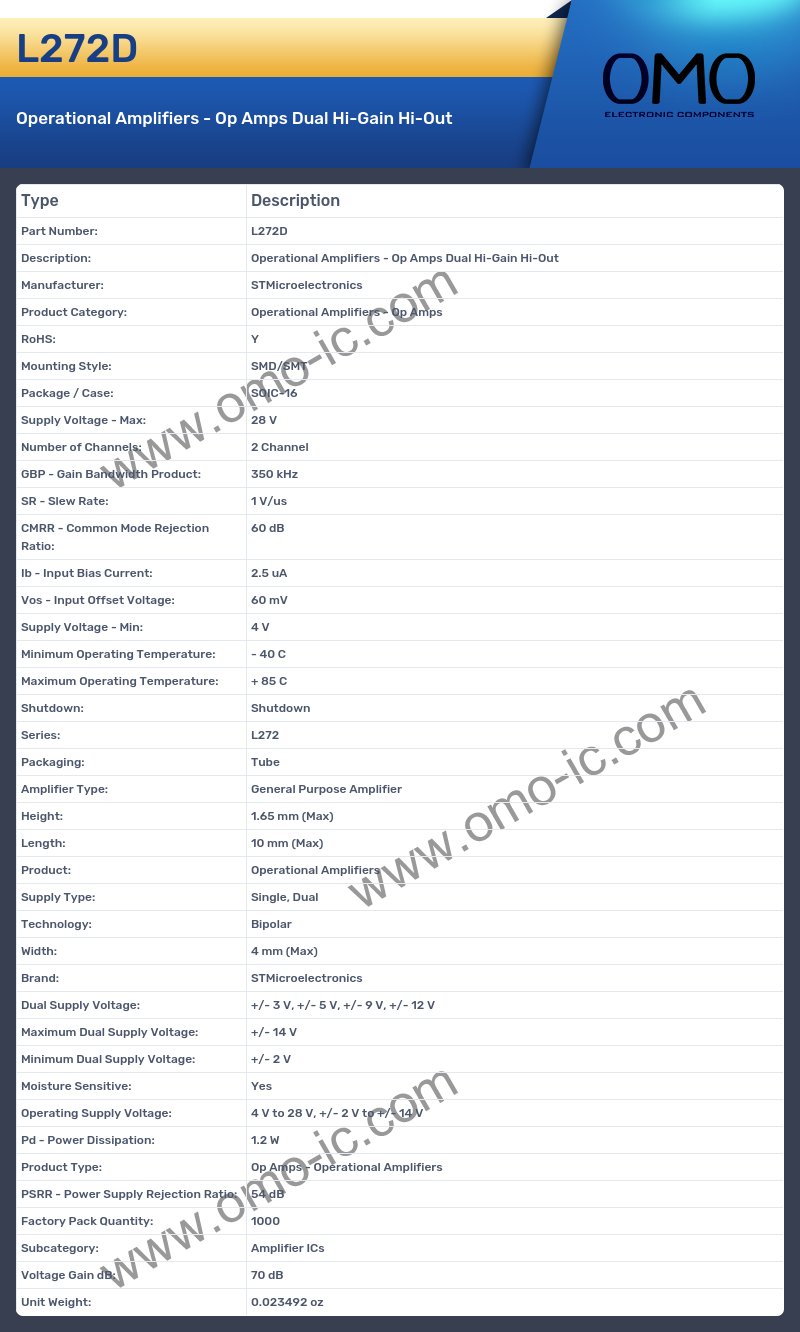

L272D Image

L272D Specifications

• Manufacturer: STMicroelectronics
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Supply Voltage - Max: 28 V
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 350 kHz
• SR - Slew Rate: 1 V/us
• CMRR - Common Mode Rejection Ratio: 60 dB
• Ib - Input Bias Current: 2.5 uA
• Vos - Input Offset Voltage: 60 mV
• Supply Voltage - Min: 4 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: Shutdown
• Series: L272
• Packaging: Tube
• Amplifier Type: General Purpose Amplifier
• Height: 1.65 mm (Max)
• Length: 10 mm (Max)
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: Bipolar
• Width: 4 mm (Max)
• Brand: STMicroelectronics
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• Maximum Dual Supply Voltage: +/- 14 V
• Minimum Dual Supply Voltage: +/- 2 V
• Moisture Sensitive: Yes
• Operating Supply Voltage: 4 V to 28 V, +/- 2 V to +/- 14 V
• Pd - Power Dissipation: 1.2 W
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 54 dB
• Factory Pack Quantity: 1000
• Subcategory: Amplifier ICs
• Voltage Gain dB: 70 dB
• Unit Weight: 0.023492 oz
