LM211PW

LM211PW Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-8 package/case type is utilized by this product. The comparator type of this product is Differential for versatile use. This product is equipped with 1 Channel for efficient performance. The output type is Open Collector and Emitter. This product has an 100 nA of 5 uA for precise signal processing. Supply Voltage - Max: 30 V Supply Voltage - Min: 3.5 V 115 ns response time The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 1 mm. 3 mm long Analog Comparators Supply Type: Single, Dual This device belongs to the Voltage Comparator type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 1. The maximum dual supply voltage is +/- 15 V. 1.75 V minimum dual supply voltage 3.5 V to 30 V operating supply voltage range Analog Comparators product type 150 of 100 Amplifier ICs as subcategory 1. 0.001376 oz of Unit Weight

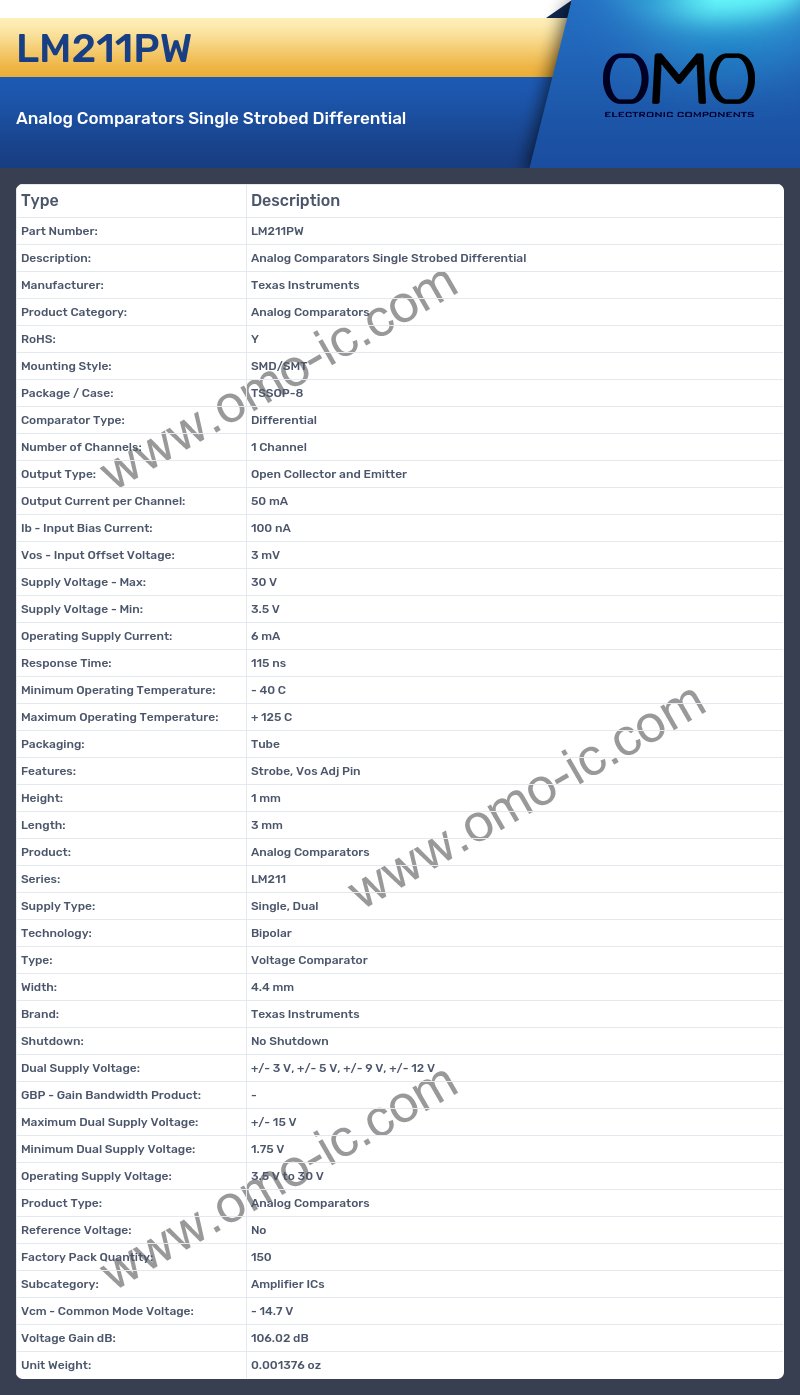

LM211PW Image

LM211PW Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Comparators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-8
• Comparator Type: Differential
• Number of Channels: 1 Channel
• Output Type: Open Collector and Emitter
• Output Current per Channel: 50 mA
• Ib - Input Bias Current: 100 nA
• Vos - Input Offset Voltage: 3 mV
• Supply Voltage - Max: 30 V
• Supply Voltage - Min: 3.5 V
• Operating Supply Current: 6 mA
• Response Time: 115 ns
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Features: Strobe, Vos Adj Pin
• Height: 1 mm
• Length: 3 mm
• Product: Analog Comparators
• Series: LM211
• Supply Type: Single, Dual
• Technology: Bipolar
• Type: Voltage Comparator
• Width: 4.4 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• GBP - Gain Bandwidth Product: -
• Maximum Dual Supply Voltage: +/- 15 V
• Minimum Dual Supply Voltage: 1.75 V
• Operating Supply Voltage: 3.5 V to 30 V
• Product Type: Analog Comparators
• Reference Voltage: No
• Factory Pack Quantity: 150
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: - 14.7 V
• Voltage Gain dB: 106.02 dB
• Unit Weight: 0.001376 oz
