LM2941LD

LM2941LD Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WSON-8 package/case type is utilized by this product. Output Voltage is 5 V to 20 V Output current: 1 A 1 Output is the number of outputs provided by this product. Polarity type: Positive Maximum input voltage is 26 V The output type is Adjustable. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Minimum Dropout Voltage: 500 mV Reel packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics Maximum dropout voltage is 0.2 V at 100 mA, 0.8 V at 1 A This product has an 10 mA of 5 uA for precise signal processing. Load regulation is 10 mV/V. LDO Voltage Regulators product type 1000 of 100 PMIC - Power Management ICs as subcategory 1. 0.000384 oz of Unit Weight

LM2941LD Image

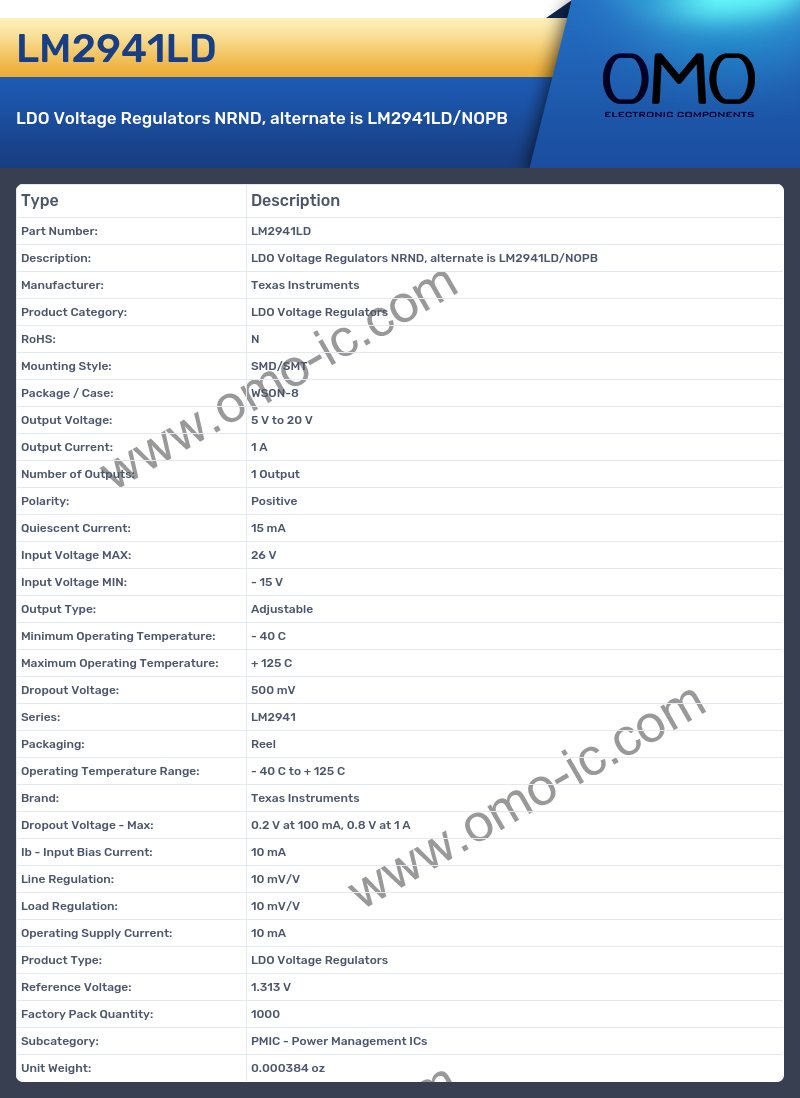

LM2941LD Specifications

• Manufacturer: Texas Instruments
• Product Category: LDO Voltage Regulators
• RoHS: N
• Mounting Style: SMD/SMT
• Package / Case: WSON-8
• Output Voltage: 5 V to 20 V
• Output Current: 1 A
• Number of Outputs: 1 Output
• Polarity: Positive
• Quiescent Current: 15 mA
• Input Voltage MAX: 26 V
• Input Voltage MIN: - 15 V
• Output Type: Adjustable
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Dropout Voltage: 500 mV
• Series: LM2941
• Packaging: Reel
• Operating Temperature Range: - 40 C to + 125 C
• Brand: Texas Instruments
• Dropout Voltage - Max: 0.2 V at 100 mA, 0.8 V at 1 A
• Ib - Input Bias Current: 10 mA
• Line Regulation: 10 mV/V
• Load Regulation: 10 mV/V
• Operating Supply Current: 10 mA
• Product Type: LDO Voltage Regulators
• Reference Voltage: 1.313 V
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.000384 oz
