LM3524DN/NOPB

LM3524DN/NOPB Overview

This product is manufactured by Texas Instruments. Boost Topology 2 Output is the number of outputs provided by this product. 350 kHz is 60 kHz. 8 V Input Voltage Output Voltage is 60 V Output current: 200 mA The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. MDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.3 mm. Isolated is the isolation property. 19.05 mm long The output type is Fixed. Regulating Pulse Width Modulator This device belongs to the Voltage Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. 100 ns fall time 8 V operating supply voltage range Switching Controllers product type Rise Time is 200 ns. 25 of 100 PMIC - Power Management ICs as subcategory 1. 0.056438 oz of Unit Weight

LM3524DN/NOPB Image

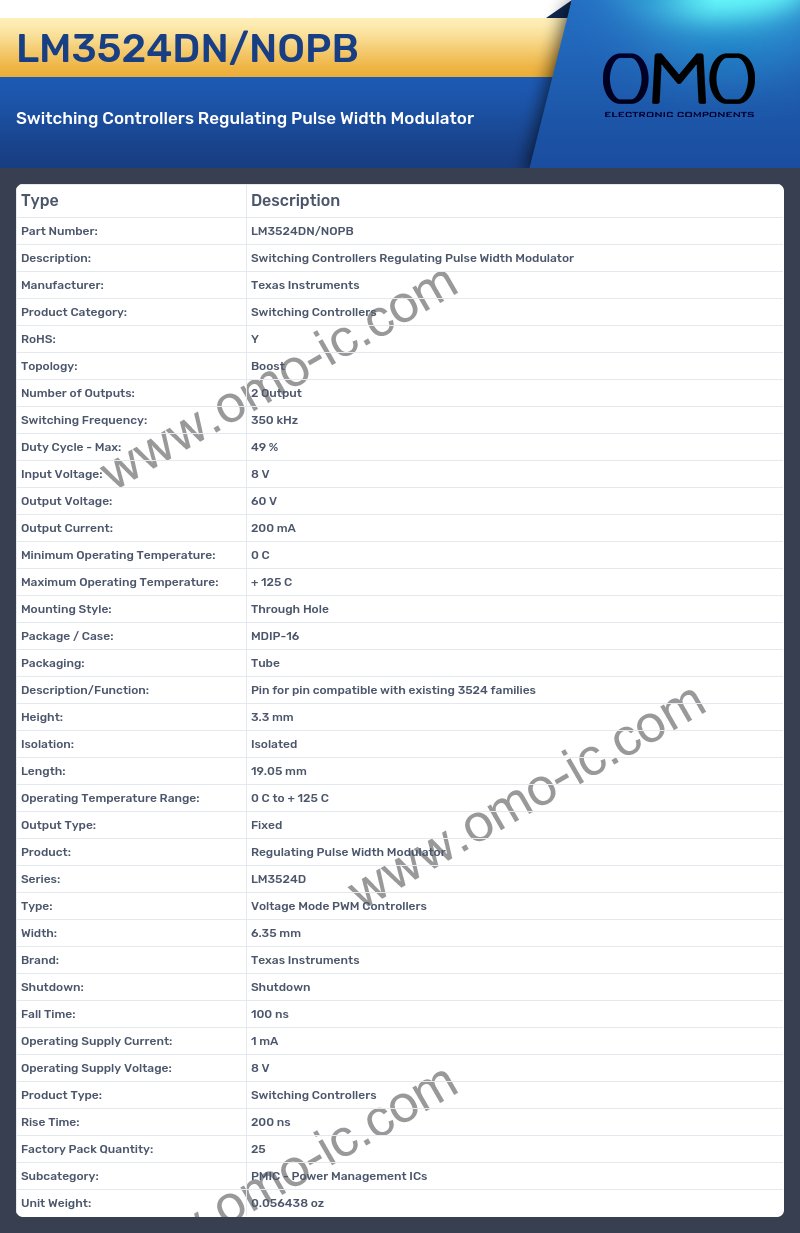

LM3524DN/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost
• Number of Outputs: 2 Output
• Switching Frequency: 350 kHz
• Duty Cycle - Max: 49 %
• Input Voltage: 8 V
• Output Voltage: 60 V
• Output Current: 200 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: MDIP-16
• Packaging: Tube
• Description/Function: Pin for pin compatible with existing 3524 families
• Height: 3.3 mm
• Isolation: Isolated
• Length: 19.05 mm
• Operating Temperature Range: 0 C to + 125 C
• Output Type: Fixed
• Product: Regulating Pulse Width Modulator
• Series: LM3524D
• Type: Voltage Mode PWM Controllers
• Width: 6.35 mm
• Brand: Texas Instruments
• Shutdown: Shutdown
• Fall Time: 100 ns
• Operating Supply Current: 1 mA
• Operating Supply Voltage: 8 V
• Product Type: Switching Controllers
• Rise Time: 200 ns
• Factory Pack Quantity: 25
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.056438 oz
