LM5030SD/NOPB

LM5030SD/NOPB Overview

This product is manufactured by Texas Instruments. Full-Bridge, Half-Bridge, Push-Pull Topology 2 Output is the number of outputs provided by this product. 200 kHz,600 kHz is 60 kHz. 100 V Input Voltage Output Voltage is 16 V Output current: 1.5 A The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. WSON-10 package/case type is utilized by this product. Reel packaging for easy dispensing Non-Isolated is the isolation property. Current Mode PWM Controllers This device belongs to the Current Mode PWM Controller type. Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. LM5030EVAL is a versatile development platform for hardware and software 16 ns fall time 7.7 V operating supply voltage range Switching Controllers product type Rise Time is 16 ns. 1000 of 100 PMIC - Power Management ICs as subcategory 1. 0.001750 oz of Unit Weight

LM5030SD/NOPB Image

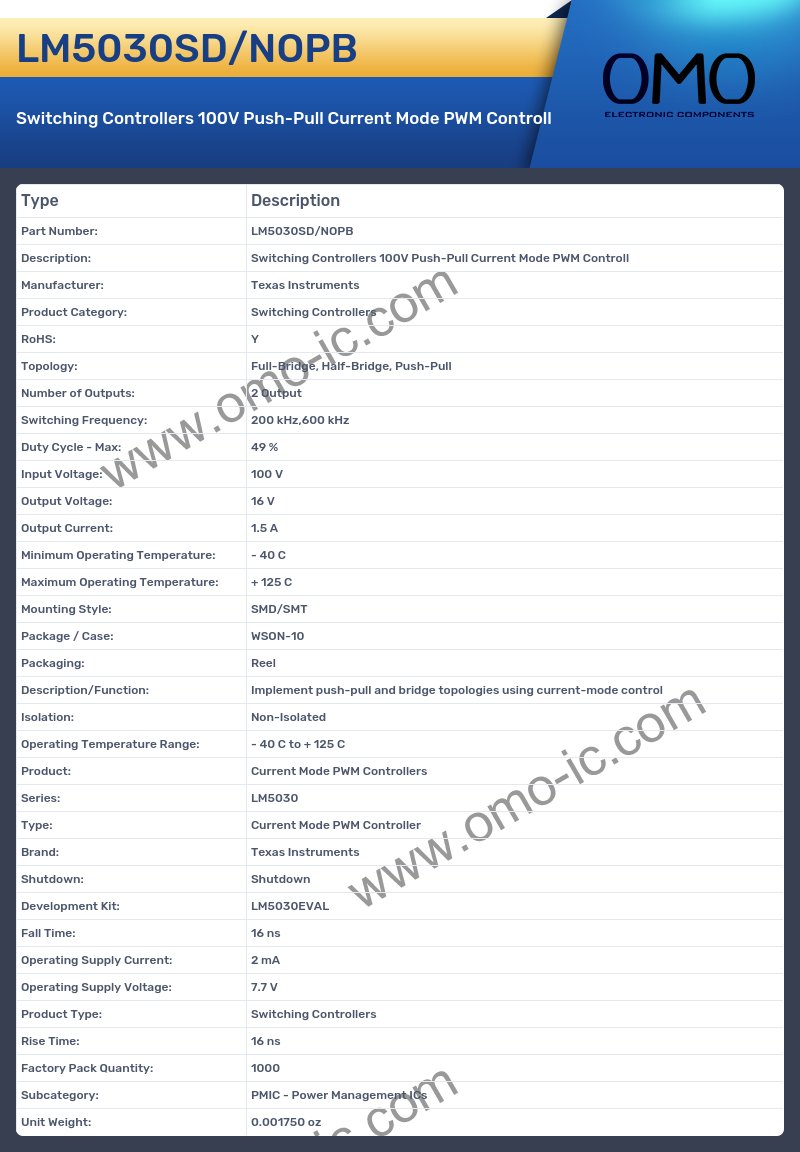

LM5030SD/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Full-Bridge, Half-Bridge, Push-Pull
• Number of Outputs: 2 Output
• Switching Frequency: 200 kHz,600 kHz
• Duty Cycle - Max: 49 %
• Input Voltage: 100 V
• Output Voltage: 16 V
• Output Current: 1.5 A
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: WSON-10
• Packaging: Reel
• Description/Function: Implement push-pull and bridge topologies using current-mode control
• Isolation: Non-Isolated
• Operating Temperature Range: - 40 C to + 125 C
• Product: Current Mode PWM Controllers
• Series: LM5030
• Type: Current Mode PWM Controller
• Brand: Texas Instruments
• Shutdown: Shutdown
• Development Kit: LM5030EVAL
• Fall Time: 16 ns
• Operating Supply Current: 2 mA
• Operating Supply Voltage: 7.7 V
• Product Type: Switching Controllers
• Rise Time: 16 ns
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.001750 oz
