LM5104M

LM5104M Overview

This product is manufactured by Texas Instruments. This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 1.8 A Rise Time is 600 ns. 600 ns fall time Supply Voltage - Min: 9 V Supply Voltage - Max: 14 V Maximum propagation delay: 56 ns The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 1.45 mm. 4.9 mm long Texas Instruments is a trusted brand for quality electronics CMOS. 7.5 V to 14 V operating supply voltage range Gate Drivers product type 95 of 100 PMIC - Power Management ICs as subcategory 1. 0.005044 oz of Unit Weight

LM5104M Image

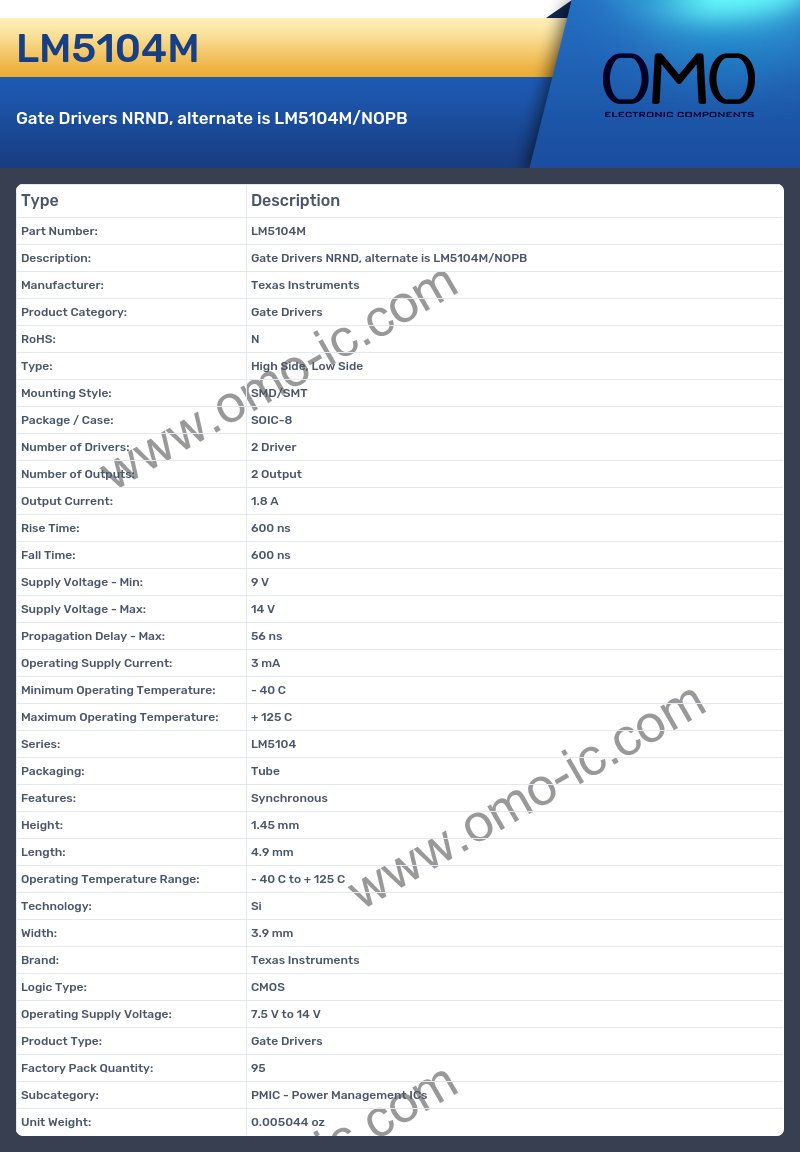

LM5104M Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: N
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 1.8 A
• Rise Time: 600 ns
• Fall Time: 600 ns
• Supply Voltage - Min: 9 V
• Supply Voltage - Max: 14 V
• Propagation Delay - Max: 56 ns
• Operating Supply Current: 3 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: LM5104
• Packaging: Tube
• Features: Synchronous
• Height: 1.45 mm
• Length: 4.9 mm
• Operating Temperature Range: - 40 C to + 125 C
• Technology: Si
• Width: 3.9 mm
• Brand: Texas Instruments
• Logic Type: CMOS
• Operating Supply Voltage: 7.5 V to 14 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 95
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.005044 oz
