LM5114AMF/S7003109 Overview

This product is manufactured by Texas Instruments. MOSFET Gate Drivers This device belongs to the Low Side type. The product can operate at a maximum temperature of SMD/SMT. SOT-23-6 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 7.6 A This product has a Single configuration. Rise Time is 3.2 ns. 8 ns fall time Supply Voltage - Min: 4 V Supply Voltage - Max: 12.6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics TTL. LM5114BSDEVAL/NOPB is a versatile development platform for hardware and software 30 ns maximum turn-off delay time The 30 ns. 4 V to 12.6 V operating supply voltage range Gate Drivers product type 1000 of 100 PMIC - Power Management ICs as subcategory 1. 0.001270 oz of Unit Weight

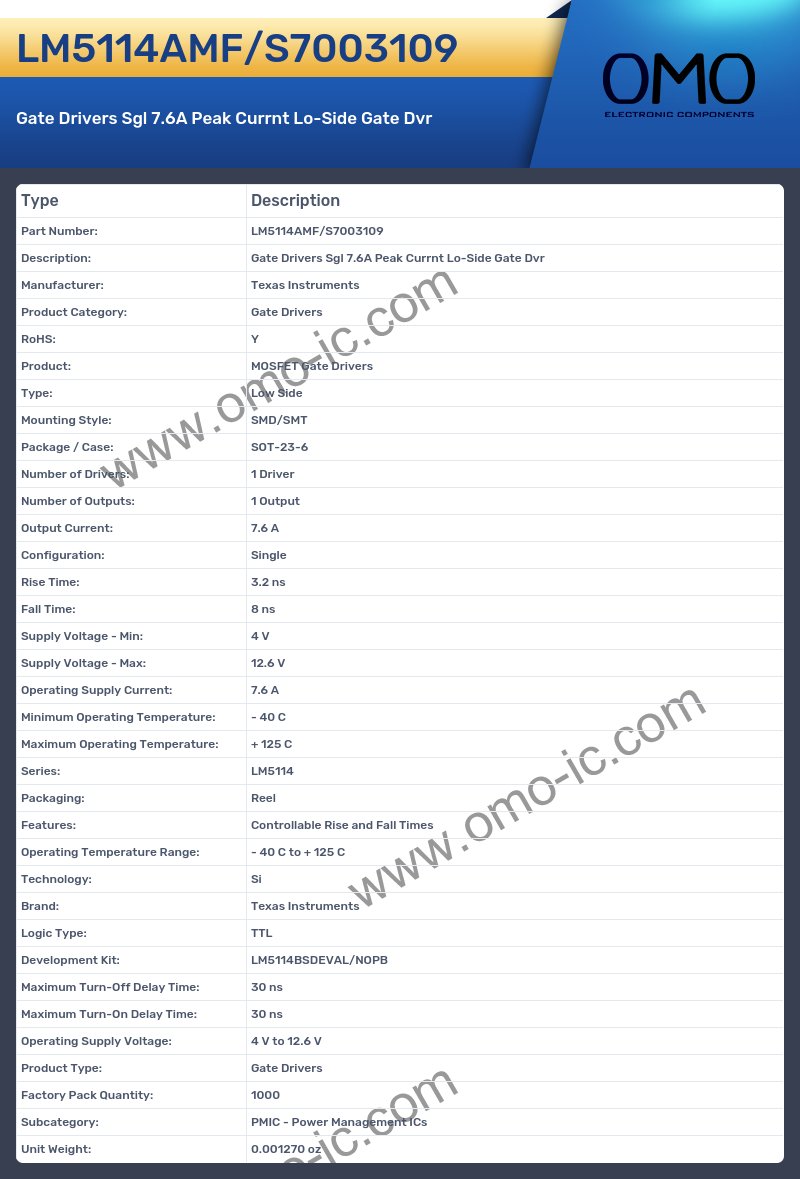

LM5114AMF/S7003109 Image

LM5114AMF/S7003109 Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: MOSFET Gate Drivers
• Type: Low Side
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-6
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 7.6 A
• Configuration: Single
• Rise Time: 3.2 ns
• Fall Time: 8 ns
• Supply Voltage - Min: 4 V
• Supply Voltage - Max: 12.6 V
• Operating Supply Current: 7.6 A
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: LM5114
• Packaging: Reel
• Features: Controllable Rise and Fall Times
• Operating Temperature Range: - 40 C to + 125 C
• Technology: Si
• Brand: Texas Instruments
• Logic Type: TTL
• Development Kit: LM5114BSDEVAL/NOPB
• Maximum Turn-Off Delay Time: 30 ns
• Maximum Turn-On Delay Time: 30 ns
• Operating Supply Voltage: 4 V to 12.6 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.001270 oz
