LPC2294HBD144/ 01/5

LPC2294HBD144/ 01/5 Overview

This product is manufactured by NXP. LQFP-144 package/case type is utilized by this product. This product's ARM7TDMI-S is an ARM Cortex M3. This product has a Data Bus Width of 32 bit/16 bit. The Maximum Clock Frequency of this product is 60 MHz. The Program Memory Size of this product is 256 kB. The Data RAM Size of this product is 16 kB. 1.8 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The height of the product is 1.45 mm. 20.1 mm long The Flash of this product is Flash. NXP Semiconductors is a trusted brand for quality electronics The SRAM. Interface Type: CAN, I2C, SPI, UART This product requires an 3.3 V for proper operation. ARM Microcontrollers - MCU product type Microcontrollers - MCU as subcategory Supply Voltage - Max: 1.95 V Supply Voltage - Min: 1.65 V 1. 1 lb of Unit Weight

LPC2294HBD144/ 01/5 Image

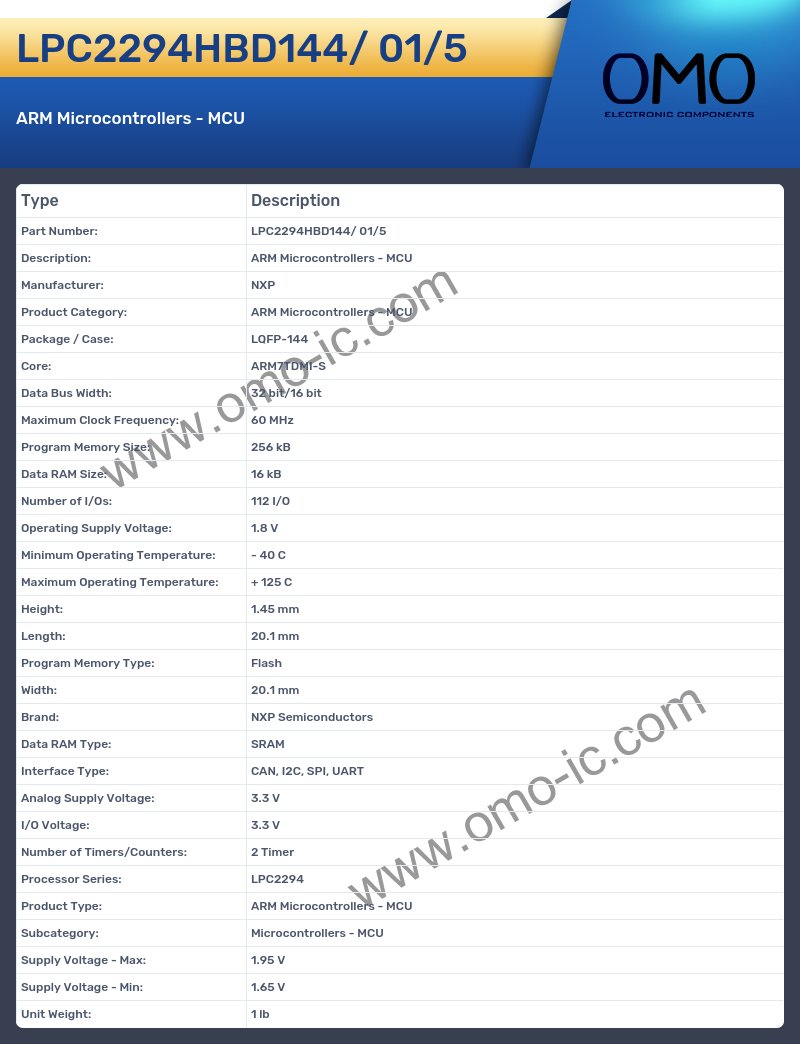

LPC2294HBD144/ 01/5 Specifications

• Manufacturer: NXP
• Product Category: ARM Microcontrollers - MCU
• Package / Case: LQFP-144
• Core: ARM7TDMI-S
• Data Bus Width: 32 bit/16 bit
• Maximum Clock Frequency: 60 MHz
• Program Memory Size: 256 kB
• Data RAM Size: 16 kB
• Number of I/Os: 112 I/O
• Operating Supply Voltage: 1.8 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Height: 1.45 mm
• Length: 20.1 mm
• Program Memory Type: Flash
• Width: 20.1 mm
• Brand: NXP Semiconductors
• Data RAM Type: SRAM
• Interface Type: CAN, I2C, SPI, UART
• Analog Supply Voltage: 3.3 V
• I/O Voltage: 3.3 V
• Number of Timers/Counters: 2 Timer
• Processor Series: LPC2294
• Product Type: ARM Microcontrollers - MCU
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 1.95 V
• Supply Voltage - Min: 1.65 V
• Unit Weight: 1 lb
