LT5560EDD#PBF

LT5560EDD#PBF Overview

This product is manufactured by Analog Devices Inc.. This product operates at 0.01 MHz to 4000 MHz RF frequency range. LO Frequency range is 0.01 MHz to 4000 MHz. The IF Frequency range is 0.01 MHz to 4000 MHz. The product can operate at a maximum temperature of + 85 C. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of SMD/SMT. DFN-8 package/case type is utilized by this product. Tube packaging for easy dispensing Analog Devices is a trusted brand for quality electronics 1.2 dB is 11.5 dB. The 8 dBm value is 32 dBm. 2.7 V to 5.3 V operating supply voltage range The - 0.8 dBm is 17 dBm. RF Mixer product type 121 of 100 Wireless & RF Integrated Circuits as subcategory 1. 0.002928 oz of Unit Weight

LT5560EDD#PBF Image

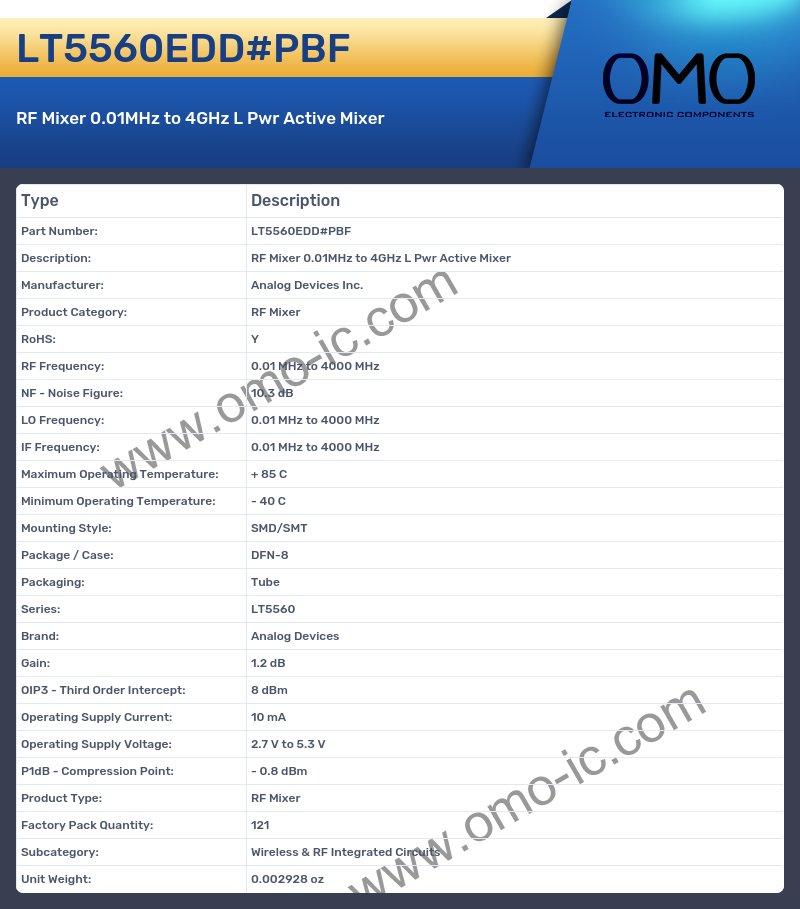

LT5560EDD#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: RF Mixer
• RoHS: Y
• RF Frequency: 0.01 MHz to 4000 MHz
• NF - Noise Figure: 10.3 dB
• LO Frequency: 0.01 MHz to 4000 MHz
• IF Frequency: 0.01 MHz to 4000 MHz
• Maximum Operating Temperature: + 85 C
• Minimum Operating Temperature: - 40 C
• Mounting Style: SMD/SMT
• Package / Case: DFN-8
• Packaging: Tube
• Series: LT5560
• Brand: Analog Devices
• Gain: 1.2 dB
• OIP3 - Third Order Intercept: 8 dBm
• Operating Supply Current: 10 mA
• Operating Supply Voltage: 2.7 V to 5.3 V
• P1dB - Compression Point: - 0.8 dBm
• Product Type: RF Mixer
• Factory Pack Quantity: 121
• Subcategory: Wireless & RF Integrated Circuits
• Unit Weight: 0.002928 oz
