LTC2297CUP#PBF

LTC2297CUP#PBF Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. QFN-64 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. The sampling rate of this product is 40 MS/s. Differential/Single-Ended input type Pipeline architecture Internal is the reference type. This product requires an 3 V for proper operation. Tube packaging for easy dispensing This device belongs to the High Speed type. Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. DC816A-C, DC851A-C is a versatile development platform for hardware and software The 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. 80 LSB is 0.2%. INL is within 1.2 LSB 235 mW ADCs - Analog to Digital Converters product type 40 of 100 Data Converter ICs as subcategory

LTC2297CUP#PBF Image

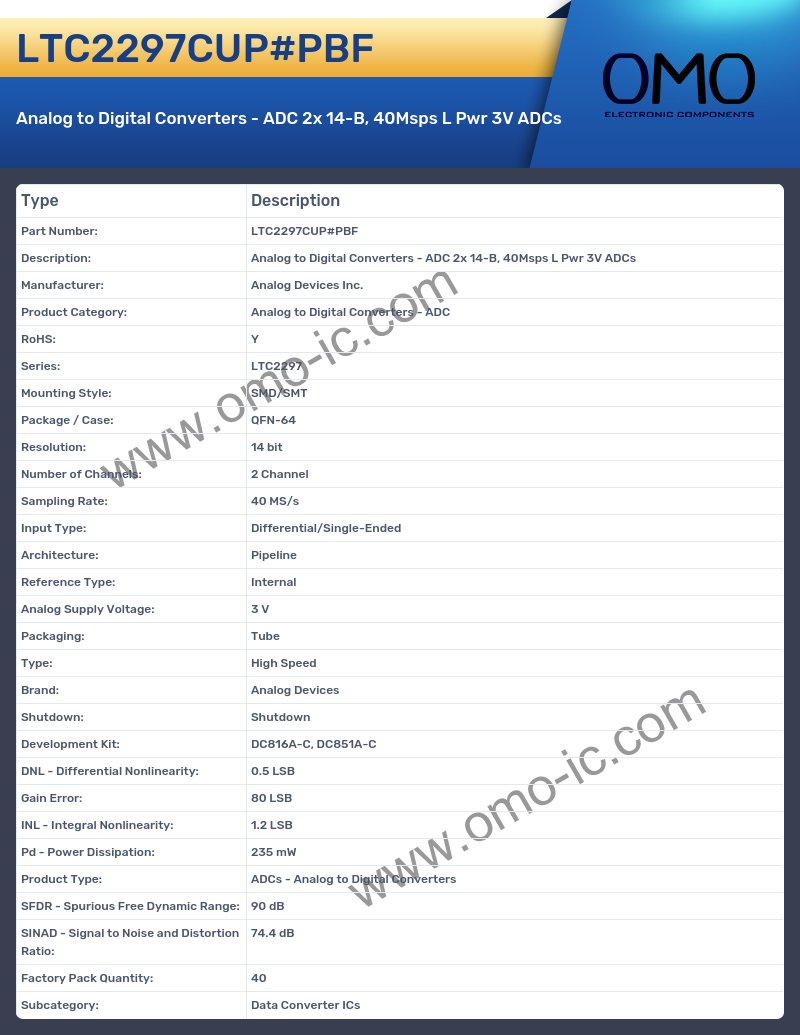

LTC2297CUP#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: LTC2297
• Mounting Style: SMD/SMT
• Package / Case: QFN-64
• Resolution: 14 bit
• Number of Channels: 2 Channel
• Sampling Rate: 40 MS/s
• Input Type: Differential/Single-Ended
• Architecture: Pipeline
• Reference Type: Internal
• Analog Supply Voltage: 3 V
• Packaging: Tube
• Type: High Speed
• Brand: Analog Devices
• Shutdown: Shutdown
• Development Kit: DC816A-C, DC851A-C
• DNL - Differential Nonlinearity: 0.5 LSB
• Gain Error: 80 LSB
• INL - Integral Nonlinearity: 1.2 LSB
• Pd - Power Dissipation: 235 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 90 dB
• SINAD - Signal to Noise and Distortion Ratio: 74.4 dB
• Factory Pack Quantity: 40
• Subcategory: Data Converter ICs
